987003 - Gravely Lawn Tractor, 16hp, Without Hydraulic Lift (SN: 000101 & Above) NUMBER THIRTEEN - TRANSMISSION COVER ASSEMBLY Parts Diagram

Lawn Tractor, 16hp, Without Hydraulic Lift

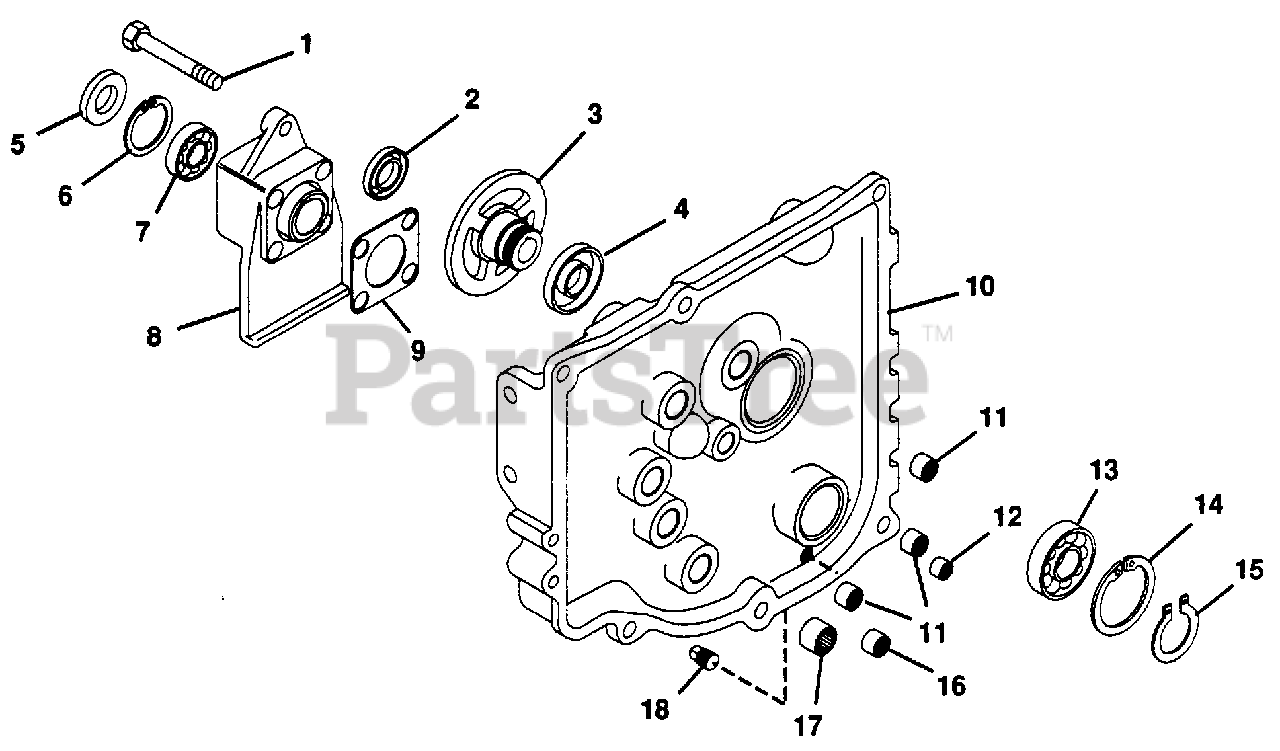

NUMBER THIRTEEN - TRANSMISSION COVER ASSEMBLY Parts Diagram

  • Title
1

Gravely 180191

BOLT, HEX 1/2-13X3.25
(Superseded to 05901634)

$3.99

$

In Stock, only 1 left!

0

2

Gravely 018035

SEAL, OIL .750X1.625X.250
(Superseded to 05614600)

$12.99

$

Usually ships in 4-12 days

0

3

Gravely 050604

HUB, CLUTCH
(Superseded to 08786900)

$297.99

$

Usually ships in 4-12 days

0

4

Gravely 046323

SEAL, OIL
(Superseded to 05617600)

$25.99

$

Usually ships in 4-12 days

0

5

Gravely 051096

SEAL, OIL AXLE
(Superseded to 05618200)

$21.99

$

In Stock, only 1 left!

0

6

Gravely 018812

RING, RETAINING .08 THICK
(Superseded to 05712900)

$5.99

$

Usually ships in 4-12 days

0

7

Gravely 050473

BEARING, BALL SEALED
(Superseded to 05426600)

$37.99

$

Usually ships in 4-12 days

0

8

Gravely 046061

RETAINER, AXLE BEARING
(Superseded to 08775300)

$

$

Not available

9

Gravely 018030

GASKET(SERVICE ONLY)
(Superseded to 08701800)

Note: (SERVICE ONLY)

$6.99

$

In Stock, Qty 10

0

10

Gravely 050117

ASSEMBLY, TRANSMISSION COVER(INCLUDES ITEMNUMBERS 3,4 AND 11 THROUGH 17.)
(Superseded to 08785100)

Note: (INCLUDES ITEMNUMBERS 3,4 AND 11 THROUGH 17.)

$

$

Not available

11

Gravely 017913

BEARING, NEEDLE .75X1X.75
(Superseded to 05420100)

$23.99

$

Usually ships in 4-12 days

0

12

Gravely 017914

BEARING, NEEDLE .625X.812X.75
(Superseded to 05420200)

$

$

Not available

13

Gravely 046321

BEARING, BALL
(Superseded to 05426300)

$53.99

$

Usually ships in 4-12 days

0

14

Gravely 046322

RING, RETAINING
(Superseded to 05715400)

$

$

Not available

15

Gravely 017919

RING, RETAINING 1.969 SHAFT
(Superseded to 05712100)

$3.49

$

Usually ships in 4-12 days

0

16

Gravely 011063

BEARING, NEEDLE .75X1X.75
(Superseded to 05427500)

$14.99

$

Usually ships in 4-12 days

0

17

Gravely 017912

BRG, NEEDLE 1.000X1.250X.750
(Superseded to 05420000)

$

$

Not available

18

Gravely 103879

PLUG, PIPE 3/8
(Superseded to 07023800)

$

$

Not available
