987001 - Gravely Lawn Tractor, 14hp, Without Hydraulic Lift (SN: 000101 & Above) REAR DECK AND SEAT Parts Diagram

Lawn Tractor, 14hp, Without Hydraulic Lift

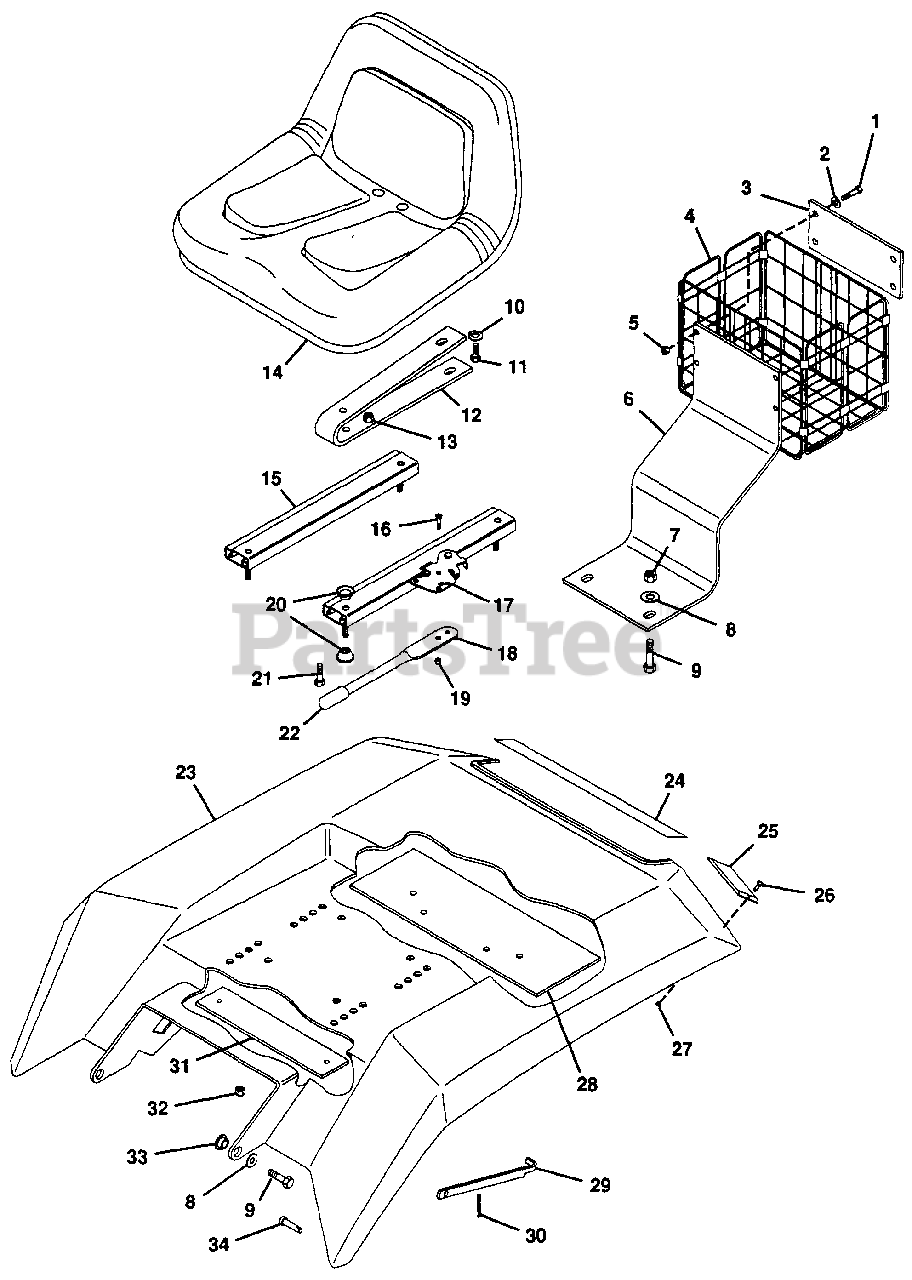

REAR DECK AND SEAT Parts Diagram

  • Title

1

Gravely 180022

BOLT, HEX 1/4-20X1.00
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

2

Gravely 120392

WASHER, FLAT .281X.625X.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 046236

STRAP, BASKET
(Superseded to 08976600)

$

$

Not available

4

Gravely 046247

BASKET
(Superseded to 08976700)

$

$

Not available

5

Gravely 416918

NUT, LOCK 1/4-20 SER. FLG.

$

$

Not available

6

Gravely 051600

BRACKET, BASKET
(Superseded to 08790800)

$

$

Not available

7

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

8

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 180122

BOLT, HEX 3/8-16X1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 120214

WASHER, LOCK 5/16 REG.
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 180077

BOLT, HEX 5/16-18X.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 047528

SPRING, SEAT
(Superseded to 03486851)

$

$

Not available

13

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 048918

SEAT, HIGH BACK
(Superseded to 59100200)

$

$

Not available

15

Gravely 035642

ADJUSTER, SEAT
(Superseded to 03600800)

$104.99

$

Usually ships in 4-12 days

0

16

Gravely 159929

SCREW, MACHINE 10-24X.625 PHD
(Superseded to 06111100)

$0.99

$

In Stock, Qty 12

0

17

Gravely 035641

ADJUSTER, SEAT W/LATCH
(Superseded to 03600800)

$104.99

$

Usually ships in 4-12 days

0

18

Gravely 039063

HANDLE, SEAT SLIDE
(Superseded to 03416500)

$

$

Not available

19

Gravely 190254

NUT, LOCK 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 035670

BUSH,. FLG. .375X1.16X.320 STL.
(Superseded to 03418300)

$4.49

$

Usually ships in 4-12 days

0

21

Gravely 180081

BOLT, HEX 5/16-18X1.25
(Superseded to 05901803)

$2.49

$

In Stock, Qty 11

0

22

Gravely 043192

TIP, LEVER
(Superseded to 07503800)

$1.49

$

In Stock, only 4 left!

0

23

Gravely 040453

WELDMENT, SEAT PAN NOTCHED
(Superseded to 08748500)

$

$

Not available

24

Gravely 044077

DECAL, GRAVELY LOGO
(Superseded to 03573000)

$

$

Not available

25

Gravely 051329

REFLECTOR, RECT. REFLEX.
(Superseded to 07536500)

$22.99

$

Usually ships in 4-12 days

0

26

Gravely 160046

SCREW, MACHINE 10-31X.50 PHD
(Superseded to 06113300)

$2.49

$

Usually ships in 4-12 days

0

27

Gravely 411893

NUT, LOCK 10-32
(Superseded to 06539200)

$1.99

$

Usually ships in 4-12 days

0

28

Gravely 051601

BRACKET, SEAT SUPPORT
(Superseded to 08790900)

$33.99

$

Usually ships in 4-12 days

0

29

Gravely 024996

STRAP, FENDER HOLD-UP
(Superseded to 08727200)

$25.99

$

Usually ships in 4-12 days

0

30

Gravely 121223

PIN, COTTER .06X.75
(Superseded to 06707500)

$0.99

$

In Stock, only 2 left!

0

31

Gravely 051278

BRACKET, SEAT
(Superseded to 09004051)

$

$

Not available

32

Gravely 413447

NUT, LOCK 5/16-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 024815

BUSH., FLG. .406X.880X.270 BRZ.
(Superseded to 05515800)

$9.49

$

In Stock, only 4 left!

0

34

Gravely 018420

PIN, CLEVIS .250X.406
(Superseded to 06809700)

$3.99

$

Usually ships in 4-12 days

0
