986103 - Ariens Lawn Edger, 136cc LCT engine (SN: 012000 & Above) Spindle, Belt And Guards Parts Diagram

Lawn Edger, 136cc LCT engine

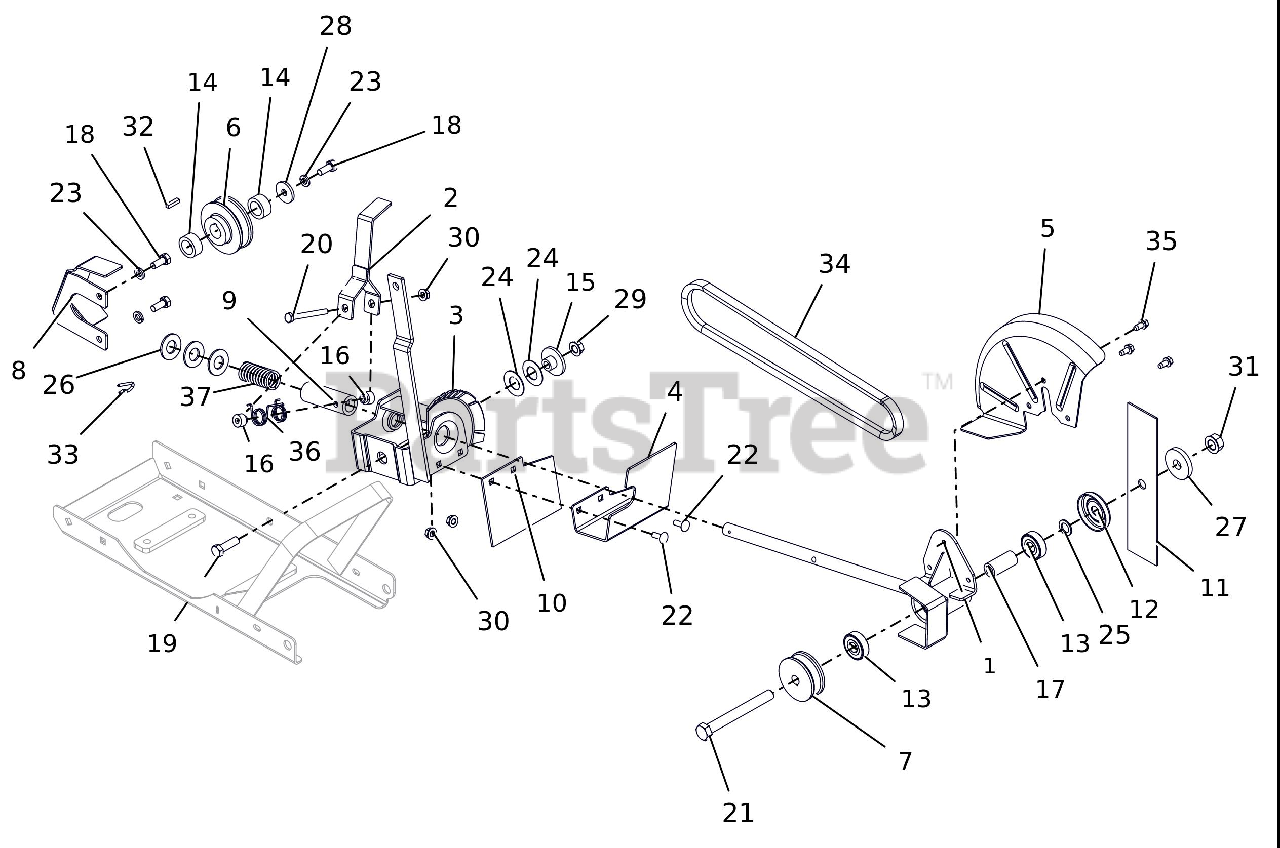

Spindle, Belt And Guards Parts Diagram

  • Title

1

Ariens 03729851

SPINDLE,CUTTER HEAD

$129.99

$

In Stock, only 2 left!

0

2

Ariens 03730451

LEVER,TILT

$

$

Not available

3

Ariens 03730559

MOUNT,CUTTER HEAD PIVOT

$103.99

$

Usually ships in 4-12 days

0

4

Ariens 58600300

KIT-GUARD

$

$

Not available

5

Ariens 03779559

GUARD,BLADE

$50.99

$

In Stock, only 4 left!

0

6

Ariens 03779651

PULLEY, ENGINE
(Superseded to 03779667)

$193.99

$

Usually ships in 4-12 days

0

7

Ariens 03779751

PULLEY, BLADE

$

$

Not available

8

Ariens 58600400

KIT-ENGINE BELT FINGER

$

$

Not available

9

Ariens 03780000

COLLAR, SPRG

$32.99

$

Usually ships in 4-12 days

0

10

Ariens 03780100

FLAP, RUBBER

$3.99

$

Usually ships in 4-12 days

0

11

Ariens 03789800

BLADE, EDGER-9"

$17.99

$

In Stock, Qty 18

0

12

Ariens 03790000

SLINGER, BEARING

$9.49

$

In Stock, only 2 left!

0

13

Ariens 05408000

BRG-BALL .500X1.38X.437

$5.99

$

In Stock, only 4 left!

0

14

Ariens 05500140

BSHG-SLV .766 X 1.125 X .500

$3.99

$

Usually ships in 4-12 days

0

15

Ariens 05500910

BSHG,FLG .384X.635X.41X1.49

$3.99

$

In Stock, only 1 left!

0

16

Ariens 05500912

BSHG,FLG .263X.393X.18X.625

$3.99

$

Usually ships in 4-12 days

0

17

Ariens 05516400

BSHG-SLV .500X.750X1.560

$5.99

$

In Stock, only 4 left!

0

18

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 05961600

@BLT-HEX .25-20X2.50 GR5 YWZC

$2.49

$

In Stock, only 1 left!

0

21

Ariens 05962300

@BLT-HEX .50-13X4.50 GR5 YWZC
(Superseded to 05901932)

$5.99

$

In Stock, only 2 left!

0

22

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 06400901

WASHER, BELLEVILLE

$3.99

$

In Stock, only 1 left!

0

25

Ariens 06441100

WSHR-FL-STL .52X.827X.062 YWZC
(Superseded to 06401114)

$2.49

$

In Stock, only 1 left!

0

26

Ariens 06442800

@WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.49

$

In Stock, only 3 left!

0

27

Ariens 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$5.99

$

In Stock, only 4 left!

0

28

Ariens 06446300

WSHR-FL-STL .344X1.125X.135
(Superseded to 06401104)

$3.99

$

In Stock, only 2 left!

0

29

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

31

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 06606100

KEY-SQ .188X.75X.188

$3.99

$

In Stock, Qty 11

0

33

Ariens 06714500

PIN, SPRING CLIP

$2.49

$

In Stock, Qty 20+

0

34

Ariens 07200507

V-BELT, 4L-WRAPPED

$30.99

$

Usually ships in 4-12 days

0

35

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

36

Ariens 08300439

SPRING, TORSION

$9.49

$

Usually ships in 4-12 days

0

37

Ariens 08300440

SPRING, COMPRESSION

$

$

Not available
