986103 - Ariens Lawn Edger, 136cc LCT engine (SN: 000101 - 011999) Frame And Engine Parts Diagram

Lawn Edger, 136cc LCT engine

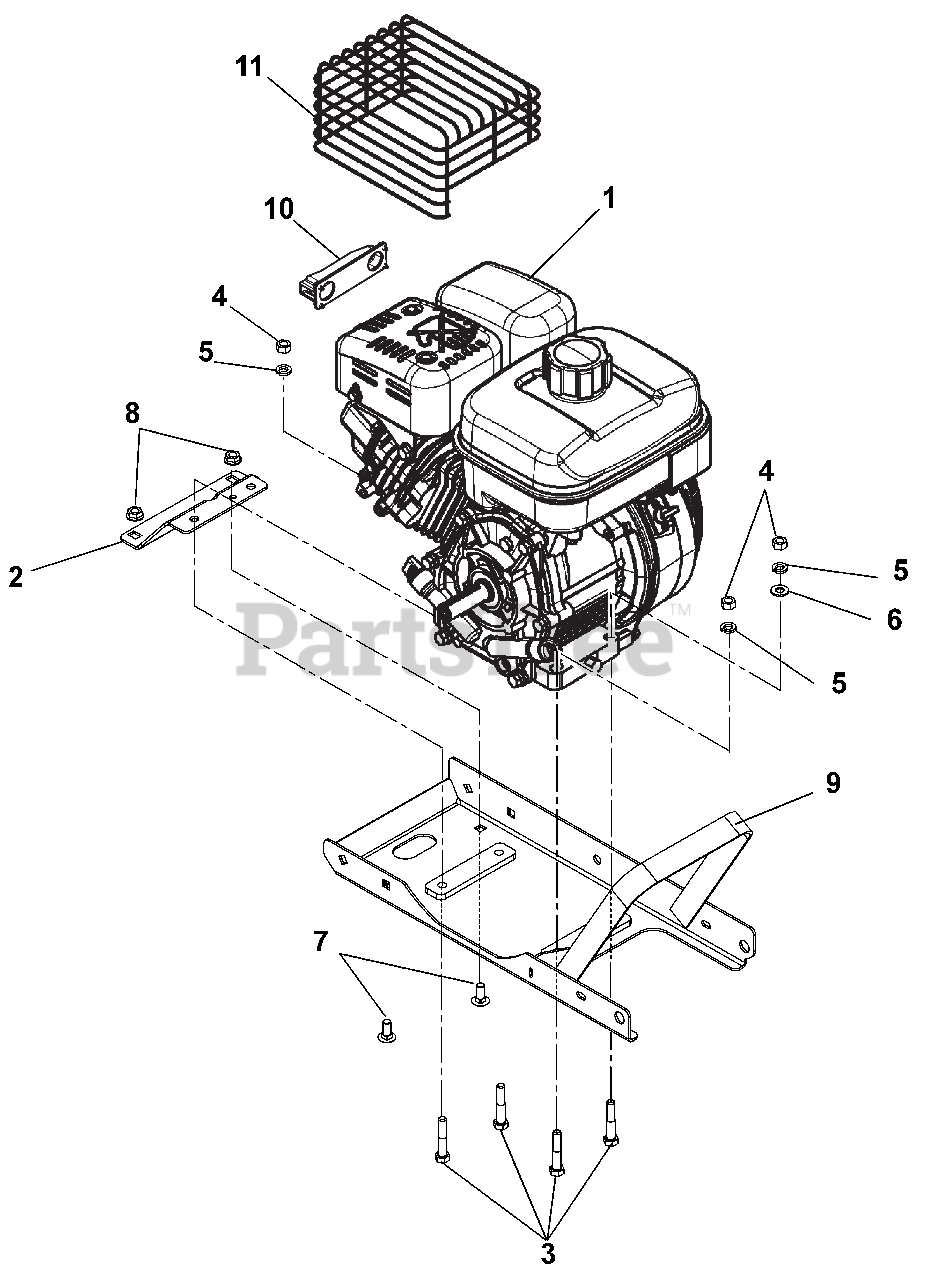

Frame And Engine Parts Diagram

  • Title
1

Ariens 08200429

ENGINE,SUBARU 6HP SP170 (CARB)

Note: (986101, 501)

$

$

Not available

1

Ariens 08200627

ENGINE, LCT-136 (CARB)

Note: (986103)

$

$

Not available

2

Ariens 03729159

BRACKET, REINFORCEMENT

$

$

Not available

3

Ariens 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

4

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

5

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

8

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 03728959

FRAME,EDGER

$99.99

$

Usually ships in 4-12 days

0

10

Ariens 04275100

KIT, LCT EXHAUST DEFLECTOR

Note: (986103)

$24.99

$

Usually ships in 4-12 days

0

11

Ariens 04042300

GUARD,MUFFLER,SUB 20A-37303-11

Note: (986501)

$

$

Not available
