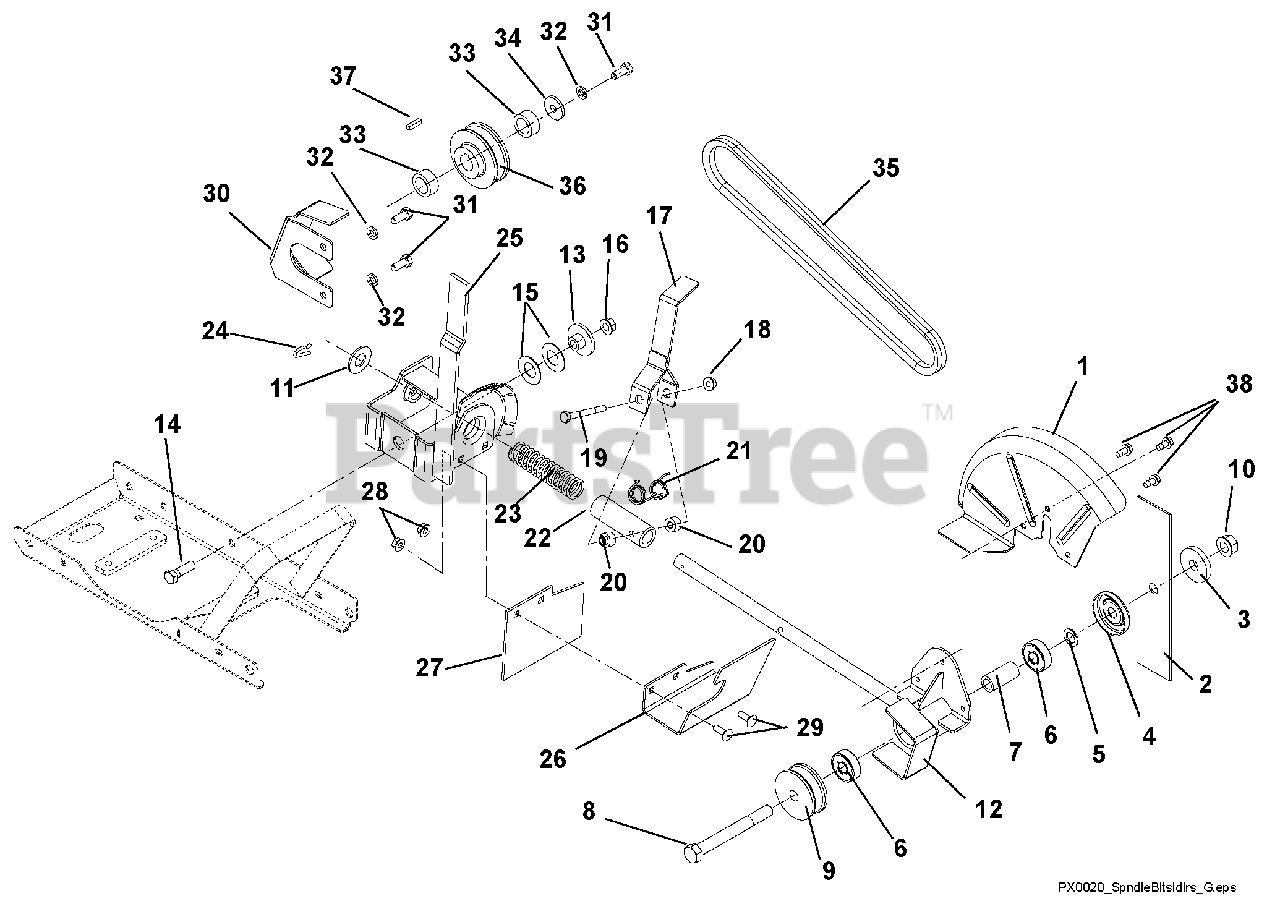

986102 - Gravely Lawn Edger (SN: 000101 & Above) Spindle, Belt And Guards Parts Diagram

Lawn Edger

Spindle, Belt And Guards Parts Diagram

  • Title

1

Gravely 03779553

Guard, Blade

$50.99

$

Usually ships in 4-12 days

0

2

Gravely 03789800

Blade, Edger - 9"

$17.99

$

In Stock, Qty 18

0

3

Gravely 06445000

Washer, Flat Steel .515 x 1.625 x .250

$5.99

$

In Stock, only 3 left!

0

4

Gravely 03790000

Slinger, Bearing

$9.49

$

In Stock, only 1 left!

0

5

Gravely 06441100

Washer, Flat Steel .52 x .827 x .062
(Superseded to 06401114)

$2.49

$

In Stock, only 2 left!

0

6

Gravely 05408000

Bearing, Ball .50 x 1.38 x .437

$5.99

$

In Stock, Qty 15

0

7

Gravely 05516400

Bushing, Sleeve .500 x .750 x 1.560

$5.99

$

In Stock, only 3 left!

0

8

Gravely 05962300

Bolt, Hex .50-13 x 4.50 Grade 5
(Superseded to 05901932)

$5.99

$

In Stock, only 2 left!

0

9

Gravely 03779700

Pulley, Blade
(Superseded to 03779767)

$129.99

$

Usually ships in 4-12 days

0

10

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06442800

Washer, Flat Steel .656 x 1.31 x .095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

12

Gravely 03729851

Spindle, Cutter Head

$129.99

$

In Stock, only 1 left!

0

13

Gravely 05500910

Flange Bushing Pivot

$3.99

$

In Stock, only 1 left!

0

14

Gravely 05958000

Bolt, Hex .38-16 x 1.25
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06400901

Washer, Belleville

$3.99

$

In Stock, only 1 left!

0

16

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 03730451

Lever, Tilt

$

$

Not available

18

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 05961600

Bolt, Hex .25-20 x 2.50 Grade 5

$2.49

$

In Stock, only 1 left!

0

20

Gravely 05500912

Bushing, Lever

$3.99

$

Usually ships in 4-12 days

0

21

Gravely 08300439

Spring, Torsion

$9.49

$

Usually ships in 4-12 days

0

22

Gravely 03780000

Collar, Spring

$32.99

$

Usually ships in 4-12 days

0

23

Gravely 08300440

Spring, Compression

$

$

Not available

24

Gravely 06714500

Pin, Spring Clip

$2.49

$

In Stock, Qty 20+

0

25

Gravely 03730553

Mount, Cutter Head, Pivot

$107.99

$

Usually ships in 4-12 days

0

26

Gravely 03779453

Guard

$

$

Not available

27

Gravely 03780100

Flap, Rubber

$3.99

$

Usually ships in 4-12 days

0

28

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 06219900

Bolt, Round Head Short Square Neck .25-20 x .75 Grade 5
(Superseded to 06200307)

$0.99

$

In Stock, Qty 13

0

30

Gravely 03779853

Belt Finger, Engine

$38.99

$

Usually ships in 4-12 days

0

31

Gravely 05947300

Bolt, Hex .31-24 x .75 Grade 5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 06307400

Washer, Lock .312 x .097
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 05500140

Bushing, Sleave .766 x 1.125 x .500

$3.99

$

Usually ships in 4-12 days

0

34

Gravely 06446300

Washer, Flat Steel .344 x 1.125 x .500
(Superseded to 06401104)

$3.99

$

In Stock, only 3 left!

0

35

Gravely 07200507

V-Belt

$30.99

$

In Stock, only 1 left!

0

36

Gravely 03779600

Pulley, Engine
(Superseded to 03779667)

$193.99

$

Usually ships in 4-12 days

0

37

Gravely 06606100

Key, Square .188 x .75 x .188

$3.99

$

In Stock, Qty 11

0

38

Gravely 07400034

Screw, Tapping .25-20 x .50
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0
