986102 - Gravely Lawn Edger (SN: 000101 & Above) Handlebars, Controls And Wheels Parts Diagram

Lawn Edger

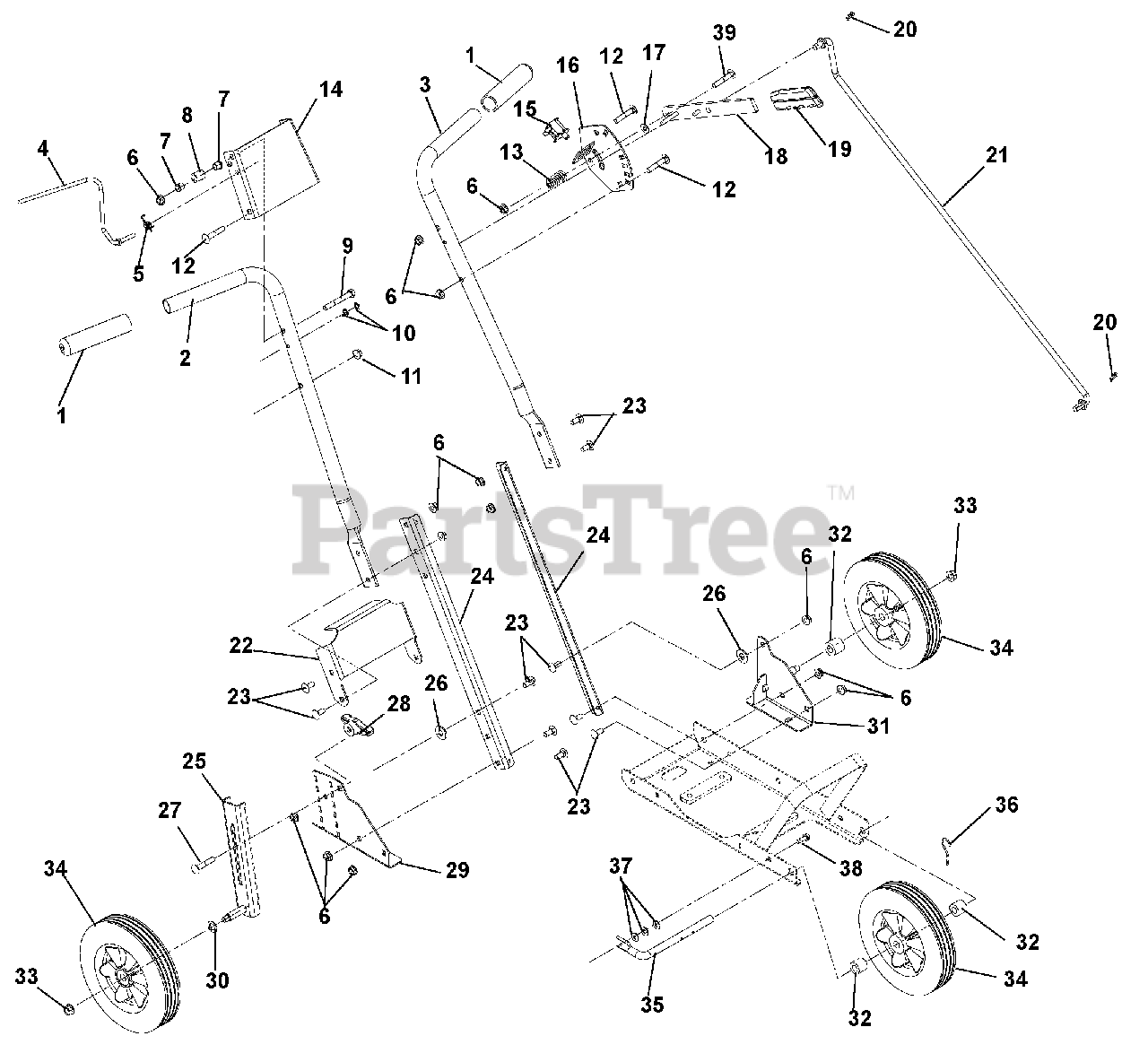

Handlebars, Controls And Wheels Parts Diagram

  • Title

1

Gravely 07518700

Handle Grip
(Superseded to 07500239)

$3.99

$

In Stock, Qty 20+

0

2

Gravely 03778451

Handlebar, Upper RH

$22.99

$

Usually ships in 4-12 days

0

3

Gravely 03778351

Handlebar, Upper LH

$30.99

$

Usually ships in 4-12 days

0

4

Gravely 03791400

Rod, OPC

$

$

Not available

Gravely 03793100

Harness, Edger (Not Shown)

Note: (Not Shown)

$17.99

$

Usually ships in 4-12 days

0

5

Gravely 08300501

Spring, Torsion

$7.99

$

In Stock, only 4 left!

0

6

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 05514500

Bushing, Flange .325 x .444 x .440 x .560

$3.99

$

In Stock, Qty 20+

0

8

Gravely 05500911

Spacer, Ground

$5.99

$

Usually ships in 4-12 days

0

9

Gravely 05952600

Bolt, Hex .31-18 x 2.50 Grade 5
(Superseded to 05901912)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 05717600

Ring, Retaining Ext. .250 x .010

$0.99

$

In Stock, Qty 17

0

11

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06220200

Bolt, Round Head Square Neck .31-18 x 1.75 Grade 5
(Superseded to 06200324)

$2.99

$

In Stock, only 4 left!

0

13

Gravely 08335700

Spring, Compression .125 x .781 x 1.250

$9.49

$

In Stock, only 1 left!

0

14

Gravely 03778251

Panel, Upper

$

$

Not available

15

Gravely 03793700

Switch, Snap

$7.99

$

Usually ships in 4-12 days

0

16

Gravely 03778851

Detent, Pivot

$25.99

$

Usually ships in 4-12 days

0

17

Gravely 06437200

Washer, Flat Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 03778951

Lever, Pivot

$

$

Not available

19

Gravely 03826900

Grip, Parking Brake

$3.99

$

In Stock, only 2 left!

0

20

Gravely 06714800

Pin, Hair #25
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 03779300

Rod, Pivot

$37.99

$

Usually ships in 4-12 days

0

22

Gravely 03779151

Panel, Lower

$20.99

$

Usually ships in 4-12 days

0

23

Gravely 06215700

Bolt, Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

24

Gravely 03778051

Strap

$27.99

$

Usually ships in 4-12 days

0

25

Gravely 04154851

Leg Drop, Wheel

$27.99

$

Usually ships in 4-12 days

0

26

Gravely 06435900

Washer, Flat Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06220200

Bolt, Round Head Square Neck .31-18 x 1.75 Grade 5
(Superseded to 06200324)

$2.99

$

In Stock, only 4 left!

0

28

Gravely 07500105

Knob, Clamping .312-18

$3.99

$

In Stock, Qty 19

0

29

Gravely 03729351

Bracket, RH Wheel Support (986102)

Note: (986102)

$21.99

$

In Stock, only 1 left!

0

Gravely 04269151

Bracket, RH Wheel Support (986104)

Note: (986104)

$37.99

$

Usually ships in 4-12 days

0

30

Gravely 06441100

Washer, Flat Steel .52 x .827 x .062
(Superseded to 06401114)

$2.49

$

In Stock, only 2 left!

0

31

Gravely 03780451

Bracket, LH Wheel Support

$41.99

$

In Stock, only 1 left!

0

32

Gravely 09293600

Spacer, Wheel

$4.99

$

Usually ships in 4-12 days

0

33

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 07100827

Wheel, 8.0 x 1.75 x .50
(Superseded to 07100839)

$

$

Not available

35

Gravely 04155200

Axle, Front

$17.99

$

Usually ships in 4-12 days

0

36

Gravely 06712900

Hairpin, #7 Clip .094 x 2.31
(Superseded to 06700215)

$5.99

$

In Stock, Qty 10

0

37

Gravely 06437300

Washer, Flat Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

38

Gravely 07414200

Screw, Tapping .25-20 x .75
(Superseded to 07400131)

$1.49

$

In Stock, Qty 6

0

39

Gravely 06221600

Bolt, Round Head Square Neck .31-18 x 2.25
(Superseded to 06200408)

$2.99

$

Usually ships in 4-12 days

0
