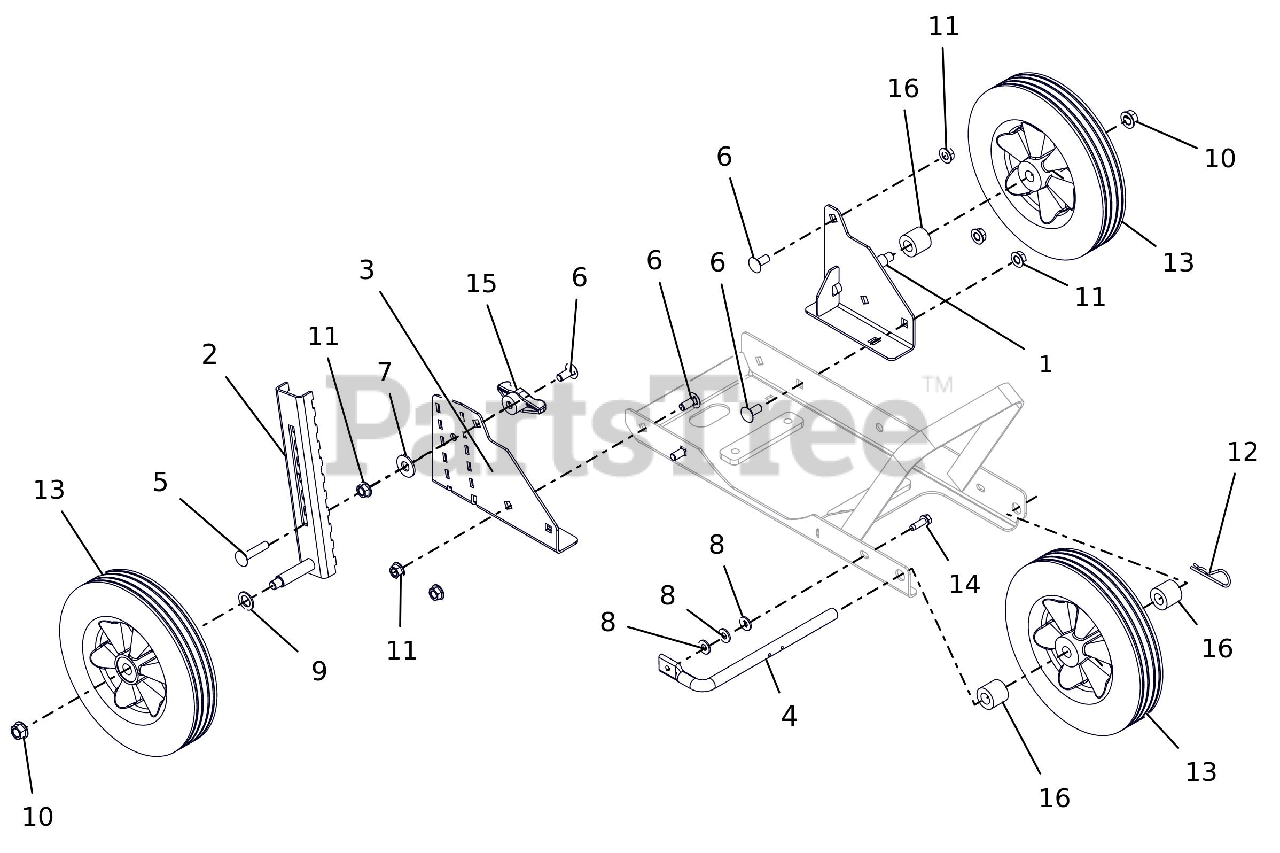

986101 - Ariens Lawn Edger, 6hp Subaru (SN: 012000 & Above) Wheels - Subaru Parts Diagram

Lawn Edger, 6hp Subaru

Wheels - Subaru Parts Diagram

  • Title

1

Ariens 03780451

BKT,LH WHEEL SUPPORT

$41.99

$

In Stock, only 1 left!

0

2

Ariens 04154851

LEG, DROP WHEEL

$27.99

$

Usually ships in 4-12 days

0

3

Ariens 03729351

BKT,RH WHEEL SUPPORT

$21.99

$

In Stock, only 1 left!

0

4

Ariens 04155200

AXLE, FRONT

$17.99

$

Usually ships in 4-12 days

0

5

Ariens 06212100

@BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

7

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 06441100

WSHR-FL-STL .52X.827X.062 YWZC
(Superseded to 06401114)

$2.49

$

In Stock, only 1 left!

0

10

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06712900

HAIRPIN, #7 CLIP .094X2.31 YWZ
(Superseded to 06700215)

$5.99

$

In Stock, Qty 11

0

13

Ariens 07100827

WHEEL, PLASTIC-8"X1.75" .50BRG
(Superseded to 07100839)

$

$

Not available

14

Ariens 07400111

SCR-TAP-PM .25-20X.75 TR YWZ
(Superseded to 07400131)

$1.49

$

In Stock, Qty 6

0

15

Ariens 07500105

KNOB,WING .31-18 UNC NYL/TALC

$3.99

$

In Stock, Qty 20+

0

16

Ariens 09293600

SPACER .516X1.000X.875

$4.99

$

Usually ships in 4-12 days

0
