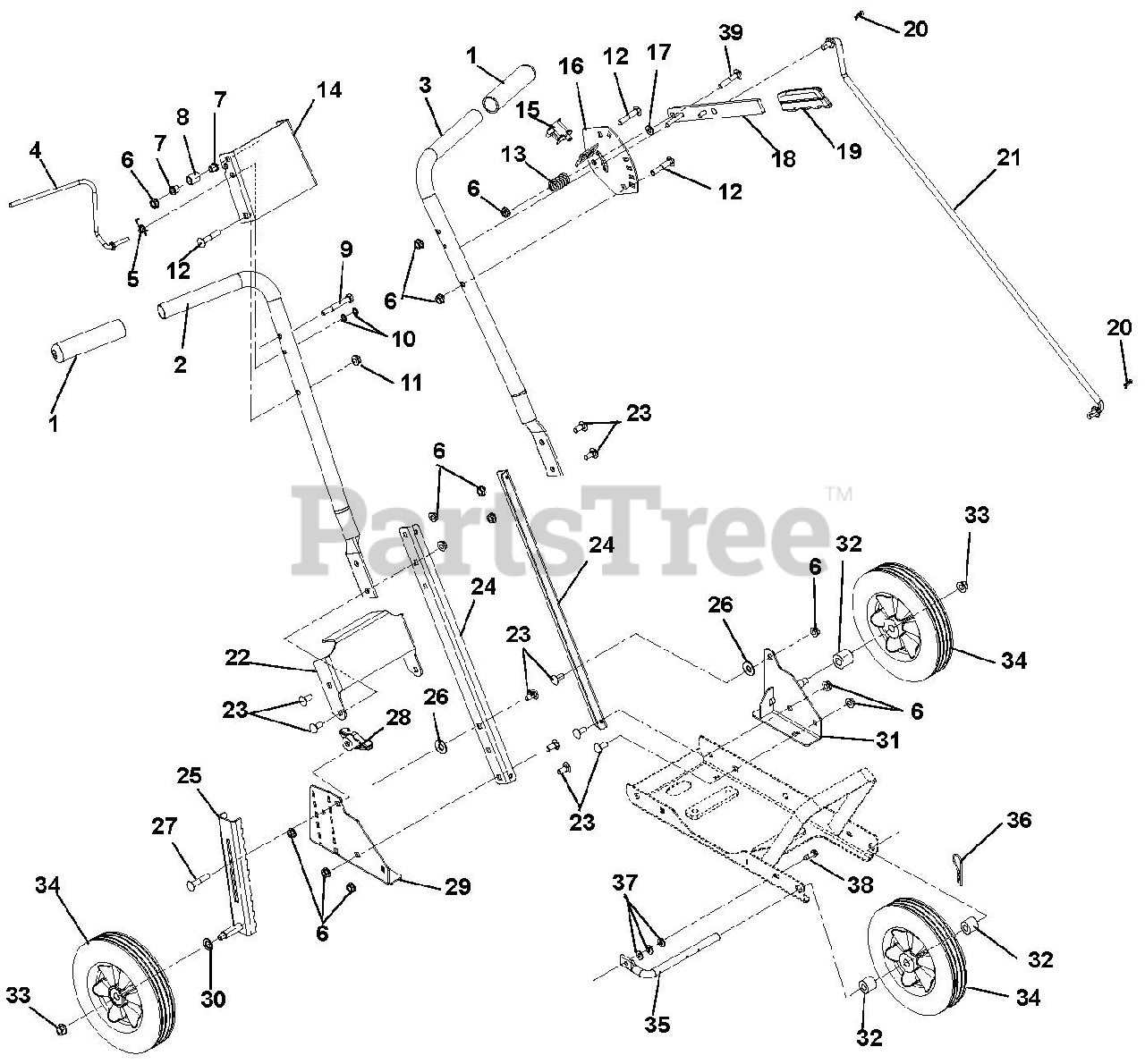

986101 - Ariens Lawn Edger, 6hp Subaru (SN: 007000 - 011999) Handlebars, Controls And Wheels Parts Diagram

Lawn Edger, 6hp Subaru

Handlebars, Controls And Wheels Parts Diagram

  • Title

1

Ariens 07518700

HANDLE GRIP
(Superseded to 07500239)

$3.99

$

In Stock, Qty 20+

0

2

Ariens 03778451

HANDLEBAR,UPPER RH

$22.99

$

Usually ships in 4-12 days

0

3

Ariens 03778351

HANDLEBAR,UPPER LH

$30.99

$

Usually ships in 4-12 days

0

4

Ariens 03791400

ROD, OPC

$

$

Not available

5

Ariens 08300501

SPRING, TORSION

$7.99

$

In Stock, only 4 left!

0

6

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 05514500

BSHG-FLG .325X.444X.440X.560

$3.99

$

In Stock, Qty 20+

0

8

Ariens 05500911

SPACER, GROUND .462X.625X.750

$5.99

$

Usually ships in 4-12 days

0

9

Ariens 05952600

@BLT-HEX .31-18X2.50 GR5 YWZC
(Superseded to 05901912)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 05717600

RG-RTNG-EXT .250X.010

$0.99

$

In Stock, Qty 19

0

11

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06220200

@BLT-RDHDSQNK .31-18X1.75 G5YZ
(Superseded to 06200324)

$2.99

$

In Stock, Qty 5

0

13

Ariens 08335700

SG-COMP .125X.781X1.250

$9.49

$

In Stock, only 1 left!

0

14

Ariens 03778251

PANEL,UPPER

$

$

Not available

15

Ariens 03793700

SWITCH- SNAP MTG N.C.

$7.99

$

Usually ships in 4-12 days

0

16

Ariens 03778851

DETENT,PIVOT

$25.99

$

Usually ships in 4-12 days

0

17

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 03778951

LEVER,PIVOT

$

$

Not available

19

Ariens 03826900

GRIP, PARKING BRAKE (YELLOW)

$3.99

$

In Stock, only 1 left!

0

20

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 03779300

ROD, PIVOT

$37.99

$

Usually ships in 4-12 days

0

22

Ariens 03779151

PANEL,LOWER

$20.99

$

Usually ships in 4-12 days

0

23

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

24

Ariens 03778051

STRAP

$27.99

$

Usually ships in 4-12 days

0

25

Ariens 04154851

LEG, DROP WHEEL

$27.99

$

Usually ships in 4-12 days

0

26

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 06220200

@BLT-RDHDSQNK .31-18X1.75 G5YZ
(Superseded to 06200324)

$2.99

$

In Stock, Qty 5

0

28

Ariens 07500105

KNOB,WING .31-18 UNC NYL/TALC

$3.99

$

In Stock, Qty 20+

0

29

Ariens 03729351

BKT,RH WHEEL SUPPORT

Note: (986101, 501)

$21.99

$

In Stock, only 1 left!

0

29

Ariens 04269151

BKT, RH WHEEL SUPPORT

Note: (986103)

$37.99

$

Usually ships in 4-12 days

0

30

Ariens 06441100

WSHR-FL-STL .52X.827X.062 YWZC
(Superseded to 06401114)

$2.49

$

In Stock, only 2 left!

0

31

Ariens 03780451

BKT,LH WHEEL SUPPORT

$41.99

$

In Stock, only 1 left!

0

32

Ariens 09293600

SPACER .516X1.000X.875

$4.99

$

Usually ships in 4-12 days

0

33

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

34

Ariens 07100827

WHEEL, PLASTIC-8"X1.75" .50BRG
(Superseded to 07100839)

$

$

Not available

35

Ariens 04155200

AXLE, FRONT

$17.99

$

Usually ships in 4-12 days

0

36

Ariens 06712900

HAIRPIN, #7 CLIP .094X2.31 YWZ
(Superseded to 06700215)

$5.99

$

In Stock, Qty 11

0

37

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

38

Ariens 07414200

SCR-TAP .25-20X.75 HWH TR YWZ
(Superseded to 07400131)

$1.49

$

In Stock, Qty 6

0

39

Ariens 06221600

@BLT-RDHDSQNK .31-18X2.25 G5YZ
(Superseded to 06200408)

$2.99

$

Usually ships in 4-12 days

0

40

Ariens 03793100

HARNESS, EDGER

Note: (NOT SHOWN)

$17.99

$

Usually ships in 4-12 days

0
