986059 - Ariens 5000 Watt Generator (SN: 002001 & Above) Voltage Regulator Parts Diagram

5000 Watt Generator

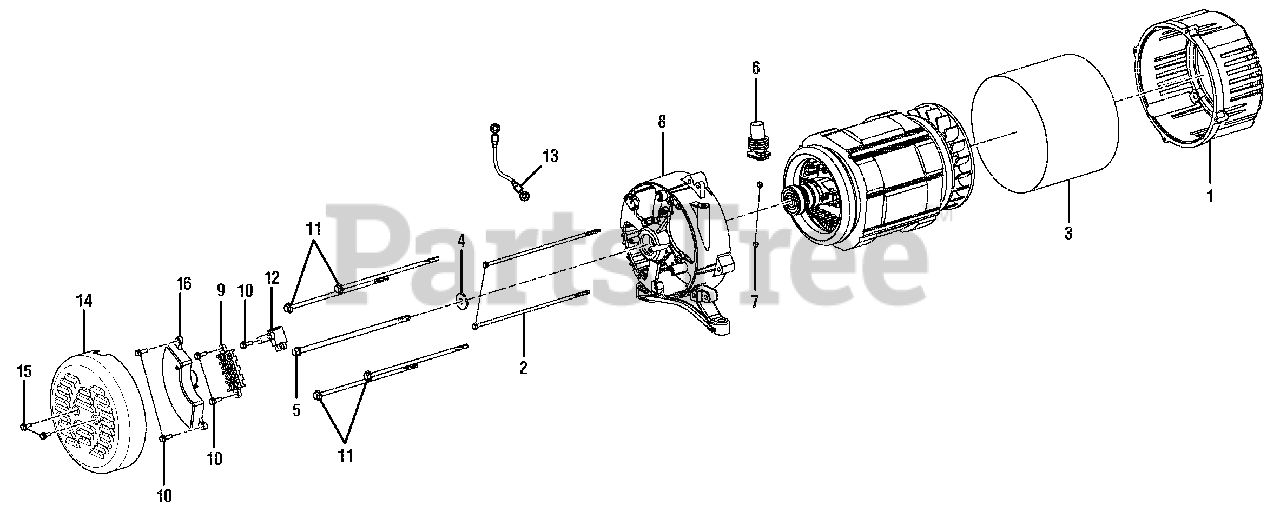

Voltage Regulator Parts Diagram

  • Title

1

Ariens 20000960

ADAPTOR HOUSING

$27.99

$

Usually ships in 4-12 days

0

2

Ariens 20003013

BOLT (M5, HEX HD.)

Note: (M5, Hex Hd.)

$

$

Not available

3

Ariens 20003014

GENERATOR HEAD COVER

$

$

Not available

4

Ariens 20000951

LOCK WASHER (5/16)

Note: (5/16 in.)

$

$

Not available

5

Ariens 20003015

ROTOR BOLT

Note: (170 mm)

$

$

Not available

6

Ariens 20003016

RUBBER BOOT

$

$

Not available

7

Ariens 20000989

HEX NUT (M5)

Note: (M5)

$

$

Not available

8

Ariens 20000987

BEARING HOUSING

$

$

Not available

9

Ariens 20000933

TERMINAL BLOCK

$

$

Not available

10

Ariens 20000966

BOLT (M5 X 16 MM)

Note: (M5 x 16 mm)

$3.99

$

Usually ships in 4-12 days

0

11

Ariens 20003017

STATOR BOLT

Note: (170 mm)

$

$

Not available

12

Ariens 20000932

BRUSH ASSEMBLY

$12.99

$

In Stock, only 1 left!

0

13

Ariens 20000770

BONDING WIRE

$

$

Not available

14

Ariens 20000980

BRUSH COVER

$6.49

$

Usually ships in 4-12 days

0

15

Ariens 20000965

BOLT (M5 X 12 MM)

Note: (M5 x 12 mm)

$3.99

$

Usually ships in 4-12 days

0

16

Ariens 20000768

AUTOMATIC VOLTAGE REGULATOR

$129.99

$

Usually ships in 4-12 days

0
