986057 - Ariens 2000 Watt Inverter Generator (SN: 000101 & Above) Frame Parts Diagram

2000 Watt Inverter Generator

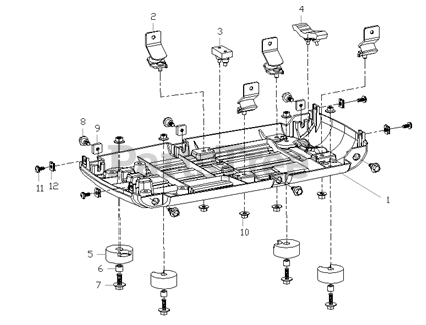

Frame Parts Diagram

  • Title
1

Ariens 21110376

FRAME FLOOR COMBINATION

$36.99

$

Usually ships in 4-12 days

0

2

Ariens 21110410

FRAME SHOCK ABSORPTION SEAT

$7.49

$

Usually ships in 4-12 days

0

3

Ariens 21110411

BUFFER RUBBER

$4.49

$

Usually ships in 4-12 days

0

4

Ariens 21110412

BUFFER RUBBER

$

$

Not available

5

Ariens 21110377

FRAME SHOCK ABSORPTION SEAT

$7.49

$

Usually ships in 4-12 days

0

6

Ariens 21110378

BUSHING

$

$

Not available

7

Ariens 21110379

BOLT / GASKET COMBINATION

$4.49

$

Usually ships in 4-12 days

0

8

Ariens 21110539

HEXAGON SHAFT SHOULDER BOLT

$4.99

$

Usually ships in 4-12 days

0

9

Ariens 21110388

CLIP NUT

$4.49

$

Usually ships in 4-12 days

0

10

Ariens 21110551

HEXAGON NUT

$2.99

$

Usually ships in 4-12 days

0

11

Ariens 21110363

SCREW FLAT MAT COMBINATION

$

$

Not available

12

Ariens 21110388

CLIP NUT

$4.49

$

Usually ships in 4-12 days

0
