986055 - Gravely 7500 Watt Generator (SN: 000101 & Above) Assembly Parts Diagram

7500 Watt Generator

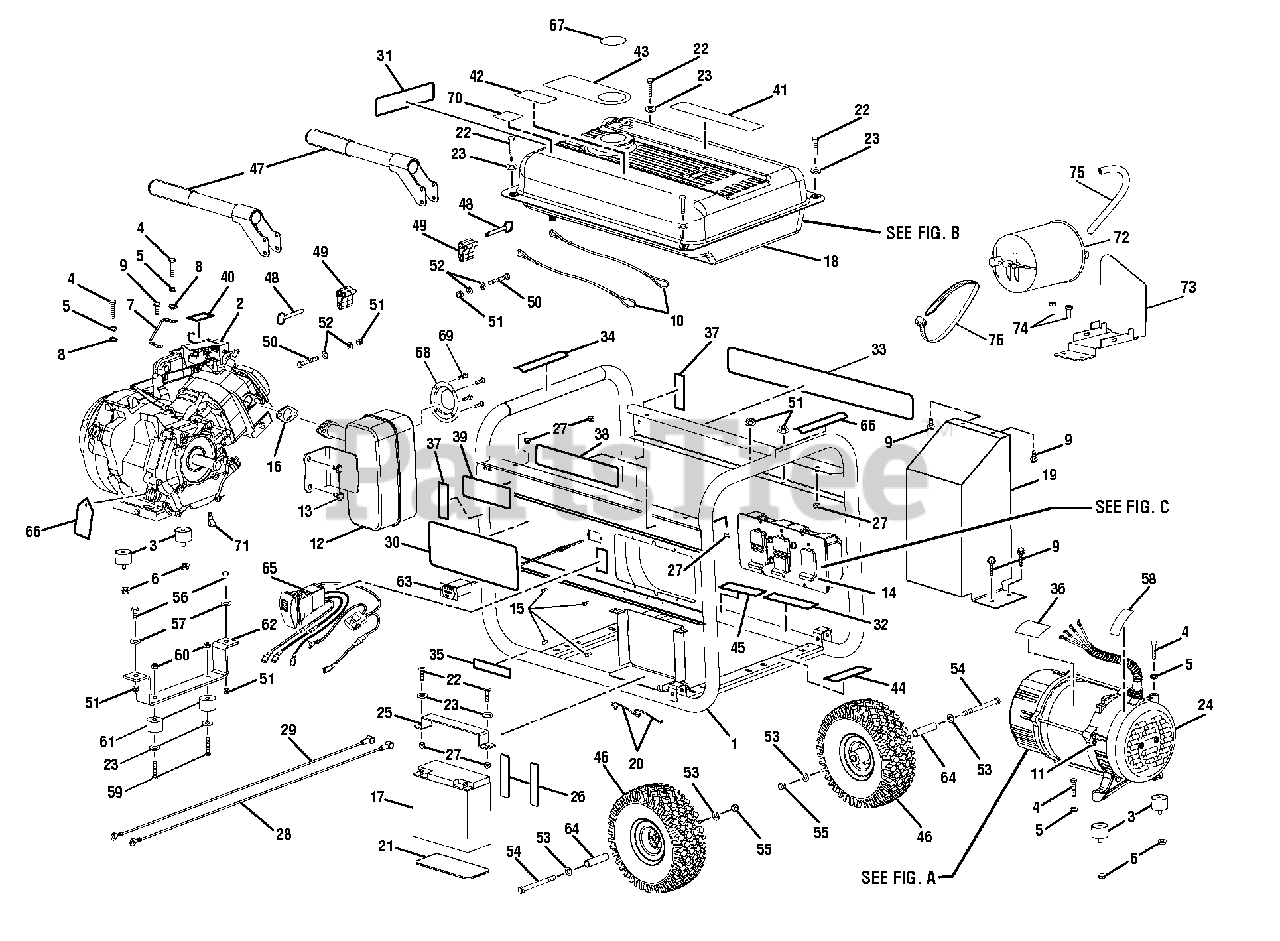

Assembly Parts Diagram

  • Title

1

Gravely 20000777

Carrier Assembly

$

$

Not available

2

Note A

Engine (Honda GX390)

Note: (Honda GX390)

$

$

Not available

3

Gravely 20000794

Isolator
(Superseded to 20000943)

$

$

Not available

4

Gravely 20000822

Bolt (5/16-18 X 1-1/2 in., Hex Hd.)

Note: (5/16-18 X 1-1/2 in., Hex Hd.)

$

$

Not available

5

Gravely 20000813

Lock Washer (5/16 in.)

Note: (5/16 in.)

$3.49

$

In Stock, only 1 left!

0

6

Gravely 20000837

Flange Nut (5/16-18, Hex Hd.)

Note: (5/16-18, Hex Hd.)

$

$

Not available

7

Gravely 20000764

Ground Wire Assembly

$

$

Not available

8

Gravely 20000816

Star Washer (5/16 in.)

Note: (5/16 in.)

$

$

Not available

9

Gravely 20000829

Bolt (5/16-18 x 3/4 in., Hex Hd.)

Note: (5/16-18 x 3/4 in., Hex Hd.)

$

$

Not available

10

Gravely 20000785

Lanyard (3/16 in.)

Note: (3/16 in.)

$

$

Not available

11

Gravely 20000815

Ground Lug

$

$

Not available

12

Gravely 20000776

Muffler

$

$

Not available

13

Gravely 20000826

Bolt (5/16-24 x 5/8 in.)

Note: (5/16-24 x 5/8 in.)

$5.49

$

In Stock, only 2 left!

0

14

Gravely 20000763

Control Panel Assembly

$

$

Not available

15

Gravely 20000824

Screw (6-20 x 3/8 in.)

Note: (6-20 x 3/8 in.)

$

$

Not available

16

Gravely 20000809

Muffler Gasket (supplied by Honda)

Note: (supplied by Honda)

$

$

Not available

17

Gravely 20000847

Battery

$245.99

$

In Stock, only 1 left!

0

18

Gravely 20000782

Fuel Tank Assembly

$251.99

$

In Stock, only 1 left!

0

19

Gravely 20000807

Heat Shield

$

$

Not available

20

Gravely 20000841

Cord Retainer

$

$

Not available

21

Gravely 20000801

Battery Box Gasket

$

$

Not available

22

Gravely 20000831

Bolt (1/4-20 X 1 in., Hex Hd.)

Note: (1/4-20 X 1 in., Hex Hd.)

$

$

Not available

23

Gravely 20000806

Washer (1/4 in.)

Note: (1/4 in.)

$

$

Not available

24

Gravely 20000781

Generator Head w/AVR

$

$

Not available

25

Gravely 20000774

Battery Hold Down Bracket Assembly

$

$

Not available

26

Gravely 20000799

Gasket (Battery Hold Down Bracket)

Note: (Battery Hold Down Bracket)

$

$

Not available

27

Gravely 20000836

Lock Nut (1/4-20)

Note: (1/4-20)

$

$

Not available

28

Gravely 20000765

Battery Cable (Red)

Note: (Red)

$

$

Not available

29

Gravely 20000766

Battery Cable (Black)

Note: (Black)

$

$

Not available

30

Gravely 20000867

Logo Label

$

$

Not available

31

Gravely 20000865

Starting Instructions Label

$

$

Not available

32

Gravely 20000863

Hot Surface Label

$

$

Not available

33

Gravely 20000859

DangerLabel
(Superseded to 20000880)

$

$

Not available

34

Gravely 20000871

Fire Danger LabeL

$

$

Not available

35

Gravely 20000864

Engine Lubricant Label

$

$

Not available

36

Gravely 20000862

Data Plate Label

$

$

Not available

37

Gravely 20000853

Locking Pin Label

$

$

Not available

38

Gravely 20000855

Honda Label

$

$

Not available

39

Gravely 20000856

Electric Start Label

$

$

Not available

40

Gravely 20000858

Choke Label

$

$

Not available

41

Gravely 20000857

Quick Start Label

$

$

Not available

42

Gravely 20000854

CPSC Label

$

$

Not available

43

Gravely 20000873

Hangtag (Engine Warning)

Note: (Engine Warning)

$

$

Not available

44

Gravely 20000851

Ground Warning Label

$

$

Not available

45

Gravely 20000860

Combustion Warning Label

$

$

Not available

46

Gravely 20000772

Wheel Assembly

$113.99

$

In Stock, only 1 left!

0

47

Gravely 20000778

Handle Assembly

$

$

Not available

48

Gravely 20000783

Release Pin (5/16 x 2 in.)

Note: (5/16 x 2 in.)

$

$

Not available

49

Gravely 20000791

Handle Bracket Spacer

$

$

Not available

50

Gravely 20000821

Bolt (5/16-18 x 2-1/4 in., Hex Hd.)

Note: (5/16-18 x 2-1/4 in., Hex Hd.)

$

$

Not available

51

Gravely 20000838

Lock Nut (5/16 in.)

Note: (5/16 in.)

$

$

Not available

52

Gravely 20000811

Washer (5/16 in.)

Note: (5/16 in.)

$

$

Not available

53

Gravely 20000805

Washer (3/16 in.)

Note: (3/16 in.)

$

$

Not available

54

Gravely 20000833

Bolt (3/8-16 x 4-1/4 in., Hex Hd.)

Note: (3/8-16 x 4-1/4 in., Hex Hd.)

$3.99

$

Usually ships in 4-12 days

0

55

Gravely 20000842

Nut (3/8-16)

Note: (3/8-16)

$3.49

$

Usually ships in 4-12 days

0

56

Gravely 20000825

Bolt (5/16-18 X 1 in., Hex Hd.)

Note: (5/16-18 X 1 in., Hex Hd.)

$

$

Not available

57

Gravely 20000812

Flat Washer (5/16 in.)

Note: (5/16 in.)

$

$

Not available

58

Gravely 20000852

Ground Label

$

$

Not available

59

Gravely 20000830

Bolt (1/4-20 X 1-1/2 in., Hex Hd.)

Note: (1/4-20 X 1-1/2 in., Hex Hd.)

$

$

Not available

60

Gravely 20000836

Lock Nut (1/4-20)

Note: (1/4-20)

$

$

Not available

61

Gravely 20000793

Rubber Foot

$

$

Not available

62

Gravely 20000817

Front Foot

$

$

Not available

63

Gravely 20000784

Hour Meter (120 Volt)

Note: (120 Volt)

$

$

Not available

64

Gravely 20000808

Wheel Spacer

$3.49

$

Usually ships in 4-12 days

0

65

Gravely 20000760

Engine Switch

$

$

Not available

66

Gravely 20000872

Fire Distance Label

$

$

Not available

67

Gravely 20000870

Fuel Stabilizer

$

$

Not available

68

Gravely 20000804

Spark Arrestor

$7.49

$

Usually ships in 4-12 days

0

69

Gravely 20000828

Screw (8-32 x 3/8 in.)

Note: (8-32 x 3/8 in.)

$

$

Not available

70

Gravely 20000869

E85 Label

$

$

Not available

71

Gravely 20000792

J-Clamp

$

$

Not available

72

Gravely 20000786

Canister

$

$

Not available

73

Gravely 20000843

Bracket

$

$

Not available

74

Gravely 20000820

Bolt (5/16-18 x 3/4 in.)

Note: (5/16-18 x 3/4 in.)

$

$

Not available

75

Gravely 20000795

Purge Hose

$

$

Not available

76

Gravely 20000850

Cable Tie

$

$

Not available

- -

Gravely 20000409

Operator's Manual

$

$

Not available
