986055 - Ariens 7500 Watt Generator (SN: 001644 - 003839) Electrical Parts Diagram

7500 Watt Generator

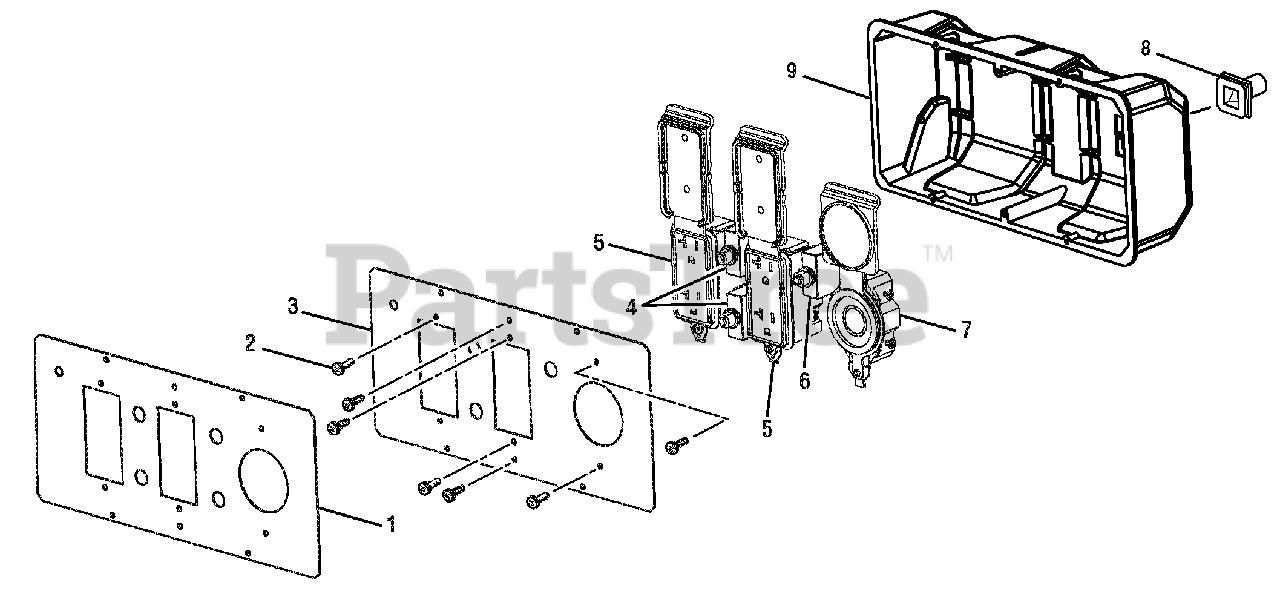

Electrical Parts Diagram

  • Title

1

Ariens 20000868

LABEL (POWER OUTLET)

Note: (Power Outlet)

$

$

Not available

2

Ariens 20000824

SCREW (6-20 X 3/8 IN.)

Note: (6-20 x 3/8 in.)

$

$

Not available

3

Ariens 20000814

FRONT PANEL

$

$

Not available

4

Ariens 20000848

CIRCUIT BREAKER (20 AMP

Note: (20 Amp, 125 Volt)

$45.99

$

Usually ships in 4-12 days

0

5

Ariens 20000761

120 VOLT DUPLEX RECEPTACLE

Note: (GFCI)

$

$

Not available

6

Ariens 20000849

CIRCUIT BREAKER (30 AMP)

Note: (30 Amp)

$

$

Not available

7

Ariens 20000762

TWST LCK RECEPT 120/240VLT 30A

Note: (120/240 Volt, 30 Amp, L14-30R)

$

$

Not available

8

Ariens 20000803

RUBBER BOOT

$

$

Not available

9

Ariens 20000790

CONTROL BOX (BACK PANEL)

Note: (Back Panel)

$

$

Not available
