986055 - Ariens 7500 Watt Generator (SN: 000101 - 001643) Main Assembly Parts Diagram

7500 Watt Generator

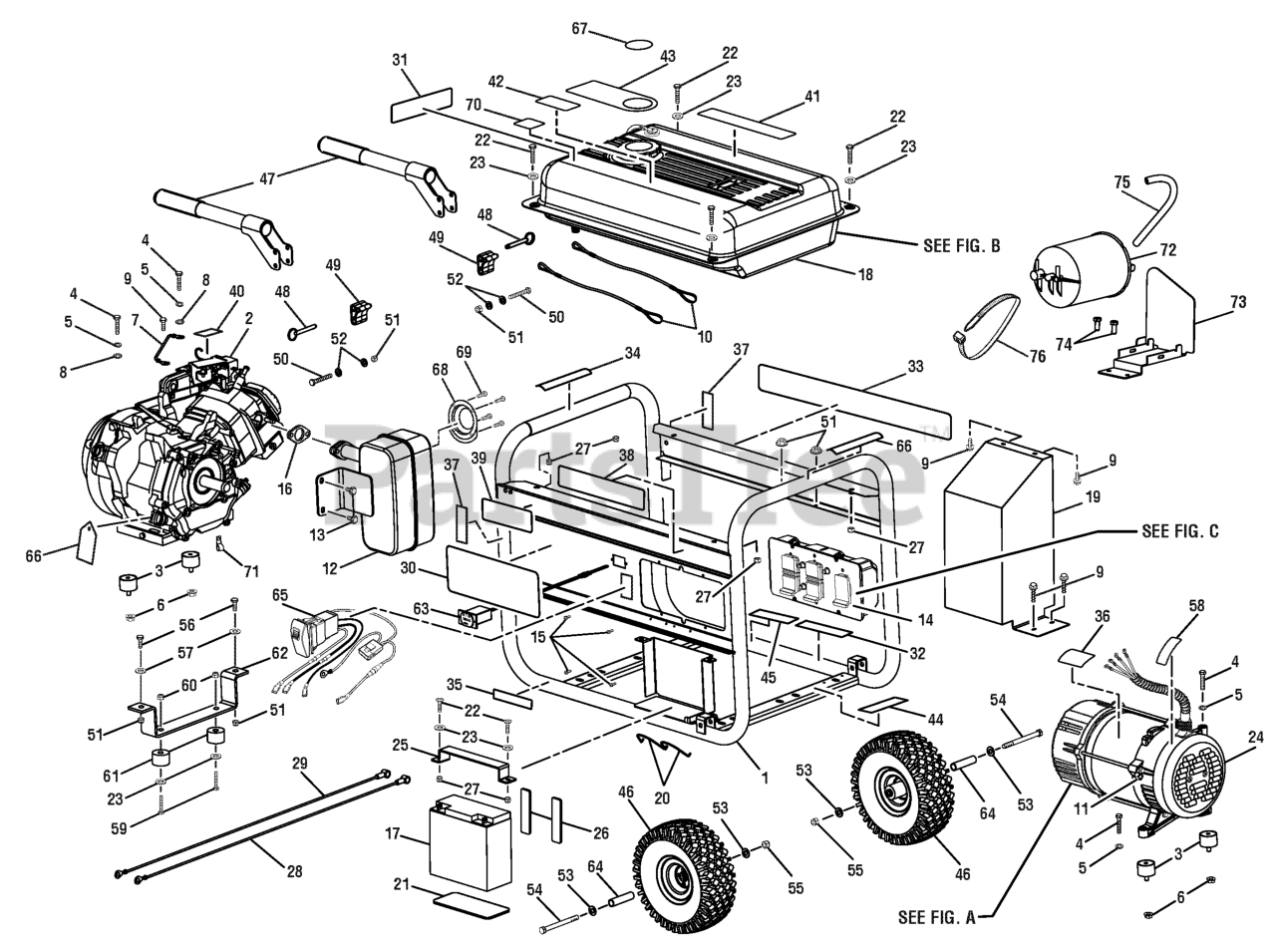

Main Assembly Parts Diagram

  • Title

1

Ariens 20000759

CARRIER ASSEMBLY

$

$

Not available

2

Ariens NOTE A

Engine (Honda GX390)(Parts are available at your local Honda dealer)

Note: (Honda GX390)(Parts are available at your local Honda dealer)

$

$

Not available

3

Ariens 20000794

ISOLATOR
(Superseded to 20000943)

$

$

Not available

4

Ariens 20000822

BOLT (5/16-18 X 1-1/2 IN HXHD)

Note: (5/16-18 x 1-1/2 in., Hex Hd.)

$

$

Not available

5

Ariens 20000813

LOCK WASHER (5/16 IN.)

Note: (5/16 in.)

$3.49

$

In Stock, only 1 left!

0

6

Ariens 20000837

FLANGE NUT (5/16-18 HEX HD.)

Note: (5/16-18, Hex Hd.)

$

$

Not available

7

Ariens 20000764

GROUND WIRE ASSEMBLY

$

$

Not available

8

Ariens 20000816

STAR WASHER (5/16 IN.)

Note: (5/16 in.)

$

$

Not available

9

Ariens 20000829

BOLT (5/16-18 X 3/4 IN HEX HD)

Note: (5/16-18 x 3/4 in., Hex Hd.)

$

$

Not available

10

Ariens 20000785

LANYARD (3/16 IN.)

Note: (3/16 in.)

$

$

Not available

11

Ariens 20000815

GROUND LUG

$

$

Not available

12

Ariens 20000776

MUFFLER

$

$

Not available

13

Ariens 20000826

BOLT (5/16-24 X 5/8 IN.)

Note: (5/16-24 x 5/8 in.)

$5.49

$

In Stock, only 2 left!

0

14

Ariens 20000763

CONTROL PANEL ASSEMBLY

$

$

Not available

15

Ariens 20000824

SCREW (6-20 X 3/8 IN.)

Note: (6-20 x 3/8 in.)

$

$

Not available

16

Ariens 20000809

MUFFLER GASKET

Note: (supplied by Honda)

$

$

Not available

17

Ariens 20000847

BATTERY

$245.99

$

In Stock, only 1 left!

0

18

Ariens 20000782

FUEL TANK ASSEMBLY

$251.99

$

In Stock, only 1 left!

0

19

Ariens 20000807

HEAT SHIELD

$

$

Not available

20

Ariens 20000841

CORD RETAINER

$

$

Not available

21

Ariens 20000801

BATTERY BOX GASKET

$

$

Not available

22

Ariens 20000831

BOLT (1/4-20 X 1 IN. HEX HD.)

Note: (1/4-20 x 1 in., Hex Hd.)

$

$

Not available

23

Ariens 20000806

WASHER (1/4 IN.)

Note: (1/4 in.)

$

$

Not available

24

Ariens 20000781

GENERATOR HEAD W/AVR

$

$

Not available

25

Ariens 20000774

BATTERY HOLD DOWN BRACKET ASSM

$

$

Not available

26

Ariens 20000799

GASKET (BATTERY HOLD DOWN

Note: (Battery Hold Down Bracket)

$

$

Not available

27

Ariens 20000836

LOCK NUT (1/4-20)

Note: (1/4-20)

$

$

Not available

28

Ariens 20000765

BATTERY CABLE (RED)

Note: (Red)

$

$

Not available

29

Ariens 20000766

BATTERY CABLE (BLACK)

Note: (Black)

$

$

Not available

30

Ariens 20000866

LOGO LABEL

$

$

Not available

31

Ariens 20000865

STARTING INSTRUCTIONS LABEL

$

$

Not available

32

Ariens 20000863

HOT SURFACE LABEL

$

$

Not available

33

Ariens 20000859

DANGER LABEL
(Superseded to 20000880)

$

$

Not available

34

Ariens 20000871

FIRE DANGER LABEL

$

$

Not available

35

Ariens 20000864

ENGINE LUBRICANT LABEL

$

$

Not available

36

Ariens 20000861

DATA PLATE LABEL

$

$

Not available

37

Ariens 20000853

LOCKING PIN LABEL

$

$

Not available

38

Ariens 20000855

HONDA LABEL

$

$

Not available

39

Ariens 20000856

ELECTRIC START LABEL

$

$

Not available

40

Ariens 20000858

CHOKE LABEL

$

$

Not available

41

Ariens 20000857

QUICK START LABEL

$

$

Not available

42

Ariens 20000854

CPSC LABEL

$

$

Not available

43

Ariens 20000873

HANGTAG (ENGINE WARNING)

Note: (Engine Warning)

$

$

Not available

44

Ariens 20000851

GROUND WARNING LABEL

$

$

Not available

45

Ariens 20000860

COMBUSTION WARNING LABEL

$

$

Not available

46

Ariens 20000772

WHEEL ASSEMBLY

$113.99

$

In Stock, only 1 left!

0

47

Ariens 20000779

HANDLE ASSEMBLY

$

$

Not available

48

Ariens 20000783

RELEASE PIN (5/16 X 2 IN.)

Note: (5/16 x 2 in.)

$

$

Not available

49

Ariens 20000791

HANDLE BRACKET SPACER

$

$

Not available

50

Ariens 20000821

BOLT (5/16-18 X 2-1/4 IN HXHD)

Note: (5/16-18 x 2-1/4 in., Hex Hd.)

$

$

Not available

51

Ariens 20000838

LOCK NUT (5/16)

Note: (5/16 in.)

$

$

Not available

52

Ariens 20000811

WASHER (5/16 IN.)

Note: (5/16 in.)

$

$

Not available

53

Ariens 20000805

WASHER (3/16 IN.)

Note: (3/16 in.)

$

$

Not available

54

Ariens 20000833

BOLT (3/8-16 X 4-1/4 IN HX HD)

Note: (3/8-16 x 4-1/4 in., Hex Hd.)

$3.99

$

Usually ships in 4-12 days

0

55

Ariens 20000842

NUT (3/8-16)

Note: (3/8-16)

$3.49

$

Usually ships in 4-12 days

0

56

Ariens 20000825

BOLT (5/16-18 X 1 IN. HEX HD.)

Note: (5/16-18 x 1 in., Hex Hd.)

$

$

Not available

57

Ariens 20000812

FLAT WASHER (5/16 IN.)

Note: (5/16 in.)

$

$

Not available

58

Ariens 20000852

GROUND LABEL

$

$

Not available

59

Ariens 20000830

BOLT (1/4-20 X 1-1/2 IN HX HD)

Note: (1/4-20 x 1-1/2 in., Hex Hd.)

$

$

Not available

60

Ariens 20000836

LOCK NUT (1/4-20)

Note: (1/4-20)

$

$

Not available

61

Ariens 20000793

RUBBER FOOT

$

$

Not available

62

Ariens 20000817

FRONT FOOT

$

$

Not available

63

Ariens 20000784

HOUR METER (120 VOLT)

Note: (120 Volt)

$

$

Not available

64

Ariens 20000808

WHEEL SPACER

$3.49

$

Usually ships in 4-12 days

0

65

Ariens 20000760

ENGINE SWITCH

$

$

Not available

66

Ariens 20000872

FIRE DISTANCE LABEL

$

$

Not available

67

Ariens 20000870

FUEL STABILIZER LABEL

$

$

Not available

68

Ariens 20000804

SPARK ARRESTOR

$7.49

$

Usually ships in 4-12 days

0

69

Ariens 20000828

SCREW (8-32 X 3/8 IN.)

Note: (8-32 x 3/8 in.)

$

$

Not available

70

Ariens 20000869

E85 LABEL

$

$

Not available

71

Ariens 20000792

J-CLAMP

$

$

Not available

72

Ariens 20000786

CANISTER

$

$

Not available

73

Ariens 20000843

BRACKET

$

$

Not available

74

Ariens 20000820

BOLT (5/16-18 X 3/4 IN.)

Note: (5/16-18 x 3/4 in.)

$

$

Not available

75

Ariens 20000795

PURGE HOSE

$

$

Not available

76

Ariens 20000850

CABLE TIE

$

$

Not available

Ariens 20000411

OWNER'S MANUAL AR907511

$

$

Not available
