986054 - Ariens 5000 Watt Generator (SN: 001010 & Above) Electrical Parts Diagram

5000 Watt Generator

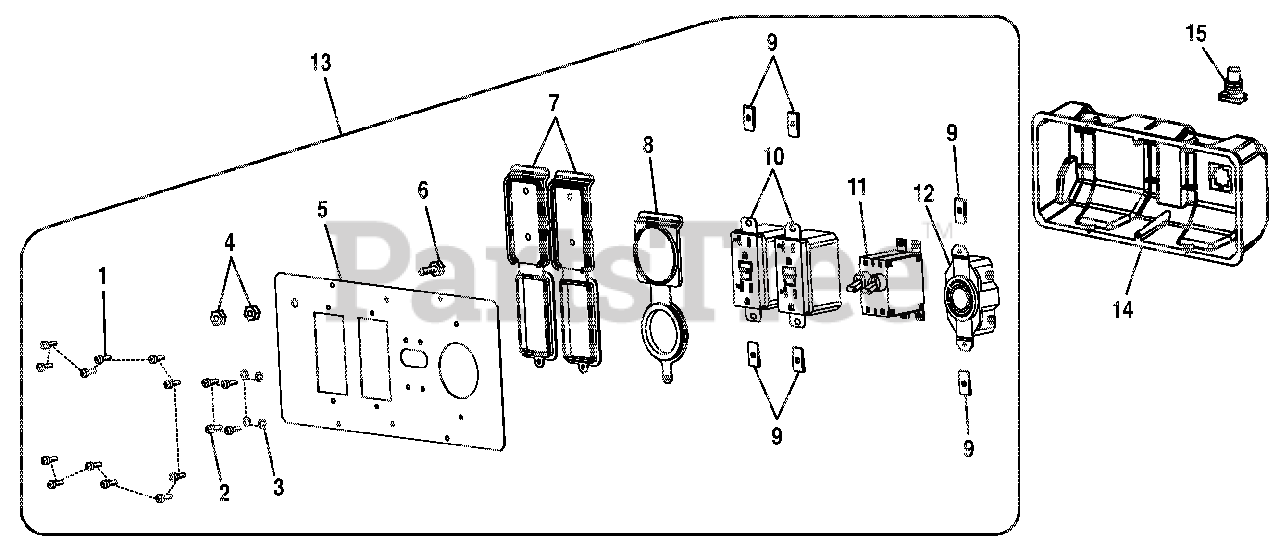

Electrical Parts Diagram

  • Title

1

Ariens 20000615

SCREW (6-20 X 3/8 IN.)
(Superseded to 20000824)

Note: (6-20 x 3/8 in.)

$

$

Not available

2

Ariens 20000614

SCREW (M3 X 6)

Note: (M3 x 6)

$

$

Not available

3

Ariens 20000604

LOCK WASHER

$

$

Not available

4

Ariens 20000625

HEX NUT (1/4-20)

Note: (1/4-20)

$

$

Not available

5

Ariens 20000598

COVER PLATE

$

$

Not available

6

Ariens 20000621

SCREW (1/4-20 X 5/8 IN HEX HD)

Note: (1/4-20 x 5/8 in., Hex Hd.)

$

$

Not available

7

Ariens 20000588

OUTLET COVER (120 VOLT)

Note: (120 Volt)

$

$

Not available

8

Ariens 20000587

OUTLET COVER (240 VOLT)

Note: (240 Volt)

$

$

Not available

9

Ariens 20000758

U-CLIP

$

$

Not available

10

Ariens 20000554

DUPLEX RECEPTACLE (120 VOLT)
(Superseded to 20000761)

Note: (120 Volt)

$

$

Not available

11

Ariens 20000636

CIRCUIT BREAKER(20AMP 125VOLT)

Note: (20 Amp, 125 Volt)

$172.99

$

In Stock, only 1 left!

0

12

Ariens 20000555

TWST LCK RECEPT 120/240VLT 20A

Note: (120/240 Volt, 20 Amp)

$9.49

$

Usually ships in 4-12 days

0

13

Ariens 20000890

FRONT PANEL

Note: (Inc. Key Nos. 1-12)

$

$

Not available

14

Ariens 20000578

REAR CONTROL PANEL
(Superseded to 20000790)

$

$

Not available

15

Ariens 20000590

RUBBER BOOT
(Superseded to 20000802)

$3.49

$

Usually ships in 4-12 days

0
