986054 - Ariens 5000 Watt Generator (SN: 000101 - 001009) Main Assembly Parts Diagram

5000 Watt Generator

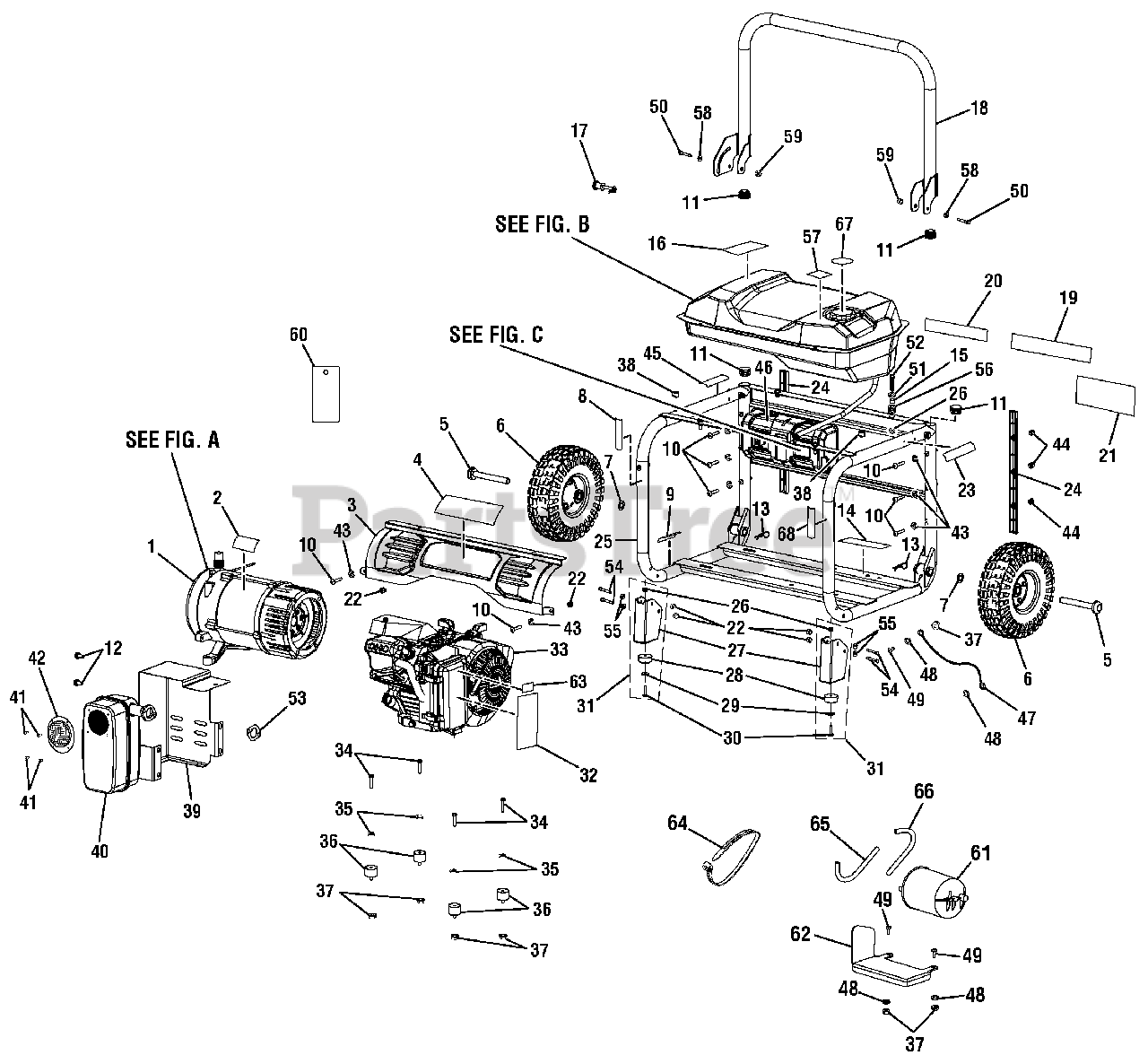

Main Assembly Parts Diagram

  • Title

1

Ariens 20000571

GENERATOR HEAD ASSEMBLY

Note: (See Figure A)

$884.99

$

Usually ships in 4-12 days

0

2

Ariens 20000644

DATA LABEL

$

$

Not available

3

Ariens 20000561

BACK PANEL ASSEMBLY

Note: (Incl. Key No. 4)

$

$

Not available

4

Ariens 20000647

BACK PANEL LOGO LABEL

$

$

Not available

5

Ariens 20000592

AXLE

$

$

Not available

6

Ariens 20000563

WHEEL

$

$

Not available

7

Ariens 20000602

WASHER (5/8 IN.)

Note: (5/8 in.)

$

$

Not available

8

Ariens 20000646

HOT SURFACE LABEL

$

$

Not available

9

Ariens 20000519

COMBUSTION WARNING LABEL

Note: (UL fire warning)

$

$

Not available

10

Ariens 20000617

BOLT(1/4-20 X 42.5 MM TORX HD)

Note: (1/4-20 x 42.5 mm, Torx Hd.)

$

$

Not available

11

Ariens 20000579

END CAP

$

$

Not available

12

Ariens 20000612

BOLT (5/16-24 X 5/8 IN.)
(Superseded to 20000826)

Note: (5/16-24 x 5/8 in.)

$5.49

$

In Stock, only 2 left!

0

13

Ariens 20000628

HITCH PIN

$3.49

$

Usually ships in 4-12 days

0

14

Ariens 20000649

LUBRICANT LABEL
(Superseded to 20000864)

$

$

Not available

15

Ariens 20000577

SPACER (FUEL TANK ISOLATOR)

Note: (Fuel Tank Isolator)

$

$

Not available

16

Ariens 20000641

CPSC LABEL
(Superseded to 20000854)

$

$

Not available

17

Ariens 20000562

HANDLE RELEASE PIN ASSEMBLY

$5.99

$

Usually ships in 4-12 days

0

18

Ariens 20000570

HANDLE ASSEMBLY

$

$

Not available

19

Ariens 20000648

DANGER LABEL

$

$

Not available

20

Ariens 20000639

GROUND WARNING LABEL

$

$

Not available

21

Ariens 20000638

LOGO LABEL

$5.99

$

Usually ships in 4-12 days

0

22

Ariens 20000626

LOCK NUT (1/4-20)
(Superseded to 06500812)

Note: (1/4-20)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 20000653

FIRE DANGER LABEL
(Superseded to 20000871)

$

$

Not available

24

Ariens 20000580

FRAME SLIDE RAILS

$

$

Not available

25

Ariens 20000566

FRAME ASSEMBLY

$

$

Not available

26

Ariens 20000419

LOCK NUT (1/4-20)
(Superseded to 20000836)

Note: (1/4-20)

$

$

Not available

27

Ariens 20000606

FOOT

$

$

Not available

28

Ariens 20000485

WEAR PAD

$3.49

$

Usually ships in 4-12 days

0

29

Ariens 20000420

WASHER (1/4 IN.)

Note: (1/4 in.)

$

$

Not available

30

Ariens 20000486

BOLT (1/4-20 X 1 IN.)

Note: (1/4-20 x 1 in., Hex Hd.)

$

$

Not available

31

Ariens 20000575

FOOT ASSEMBLY

Note: (Incl. Key Nos. 26-30)

$

$

Not available

32

Ariens 20000642

STARTING INSTRUCTION LABEL

$

$

Not available

33

Engine (Subaru EX30)(Parts available at your local Subaru dealer)

Note: (Subaru EX30)(Parts available at your local Subaru dealer)

$

$

Not available

34

Ariens 20000610

BOLT (5/16-18 X 1.5 IN)
(Superseded to 20000822)

Note: (5/16-18 x 1.5 in.)

$

$

Not available

35

Ariens 20000603

LOCK WASHER (5/16)
(Superseded to 20000813)

Note: (5/16)

$3.49

$

In Stock, only 1 left!

0

36

Ariens 20000582

ISOLATOR (GENERATOR)
(Superseded to 20000943)

Note: (Generator)

$

$

Not available

37

Ariens 20000627

HEX NUT (5/16-18 FLANGE HD.)
(Superseded to 20000837)

Note: (5/16-18, Flange Hd.)

$

$

Not available

38

Ariens 20000586

RUBBER HANDLE BUMPER

$3.49

$

Usually ships in 4-12 days

0

39

Ariens 20000601

BACK MUFFLER COVER

$

$

Not available

40

Ariens 20000568

MUFFLER (SUBARU EX30)

Note: (Subaru EX30)

$

$

Not available

41

Ariens 20000616

SCREW (8-32 X 3/8 IN.)
(Superseded to 20000828)

Note: (8-32 x 3/8 in.)

$

$

Not available

42

Ariens 20000594

SPARK ARRESTOR
(Superseded to 20000804)

$7.49

$

Usually ships in 4-12 days

0

43

Ariens 20000634

LOCK WASHER (M6)

Note: (M6)

$

$

Not available

44

Ariens 20000633

HEX NUT (1/4-20)

Note: (1/4-20)

$

$

Not available

45

Ariens 20000640

PIN RELEASE LABEL

$

$

Not available

46

Ariens 20000560

CONTROL PANEL

Note: (See Figure C)

$

$

Not available

47

Ariens 20000556

GROUND WIRE ASSEMBLY
(Superseded to 20000764)

$

$

Not available

48

Ariens 20000605

STAR WASHER (5/16 IN.)
(Superseded to 20000816)

Note: (5/16 in.)

$

$

Not available

49

Ariens 20000619

BOLT (5/16-18 X 3/4 IN.)
(Superseded to 20000829)

Note: (5/16-18 x 3/4 in.)

$

$

Not available

50

Ariens 20000482

BOLT (M8 X 55 MM HEX HD.)

Note: (M8 x 55 mm, Hex Hd.)

$

$

Not available

51

Ariens 20000596

WASHER (1/4 IN.)
(Superseded to 20000806)

Note: (1/4 in.)

$

$

Not available

52

Ariens 20000620

BOLT (1/4-20 X 1 IN.)
(Superseded to 20000831)

Note: (1/4-20 x 1 in.)

$

$

Not available

53

Ariens 20000599

MUFFLER GASKET

$

$

Not available

54

Ariens 20000618

BOLT 1/4-20 X 2 IN T30 TORX HD

Note: (1/4-20 x 2 in., T30 Torx Hd.)

$

$

Not available

55

Ariens 20000597

WASHER (1/4 IN.)

Note: (1/4 in.)

$

$

Not available

56

Ariens 20000581

ISOLATOR (FUEL TANK)

Note: (Fuel Tank)

$

$

Not available

57

Ariens 20000651

E85 LABEL
(Superseded to 20000869)

$

$

Not available

58

Ariens 20000595

WASHER (3/8 IN.)
(Superseded to 20000805)

Note: (3/8 in.)

$

$

Not available

59

Ariens 20000632

HEX NUT (M8)

Note: (M8)

$

$

Not available

60

Ariens 20000655

DANGER HANG TAG

$

$

Not available

61

Ariens 20000574

CANISTER

$

$

Not available

62

Ariens 20000607

CANISTER BRACKET

$

$

Not available

63

Ariens 20000643

CHOKE LABEL

$

$

Not available

64

Ariens 20000637

CABLE TIE
(Superseded to 20000850)

$

$

Not available

65

Ariens 20000583

PURGE HOSE

$

$

Not available

66

Ariens 20000589

ROLLOVER VENT

$

$

Not available

67

Ariens 20000652

FUEL STABILIZER LABEL
(Superseded to 20000870)

$

$

Not available

68

Ariens 20000654

FIRE DISTANCE LABEL
(Superseded to 20000872)

$

$

Not available

Ariens 20000407

OWNER'S MANUAL AR905011

$

$

Not available
