986053 - Ariens 2000 Watt Digital Inverter Generator (SN: 110001 - 110579) Main Assembly Parts Diagram

2000 Watt Digital Inverter Generator

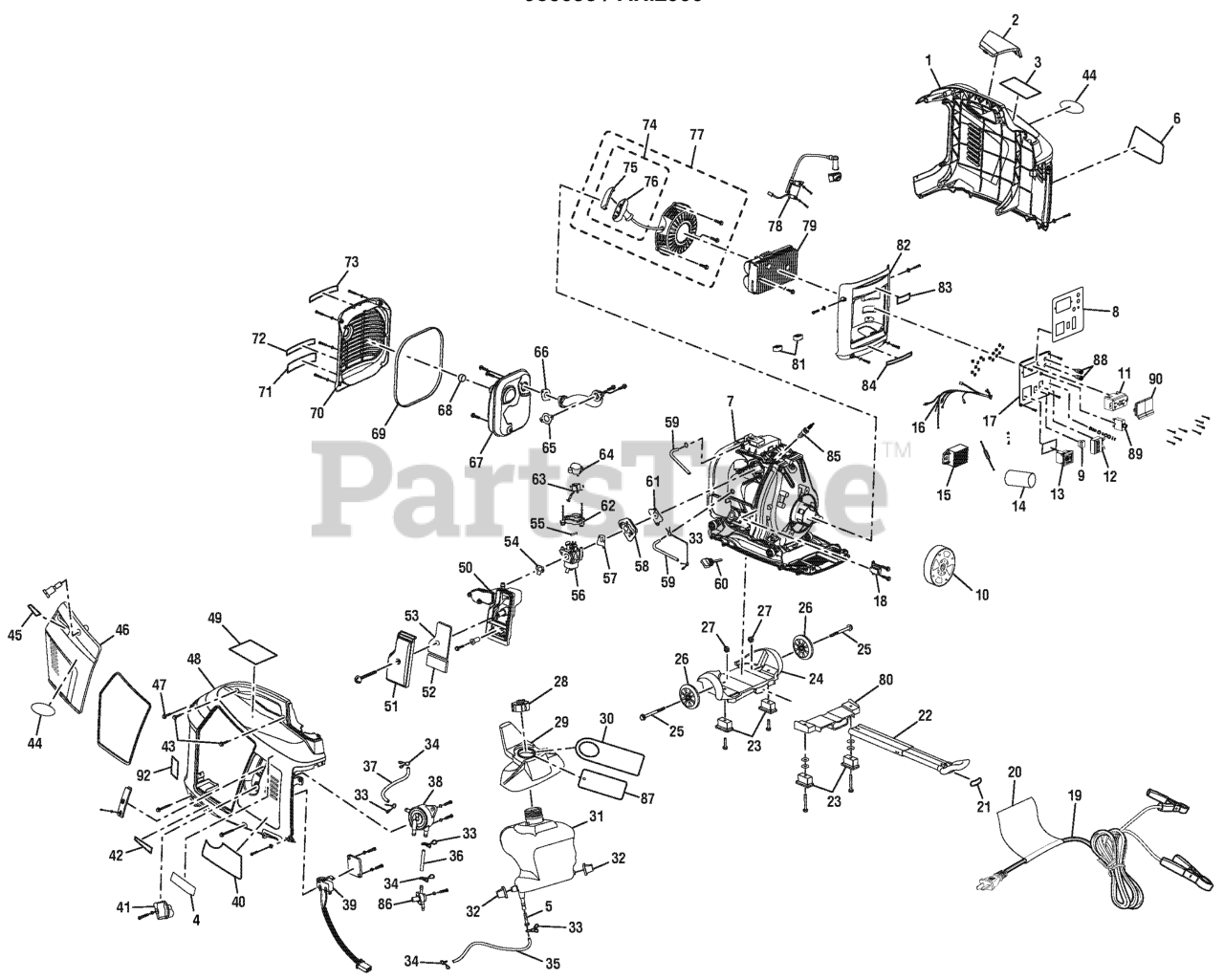

Main Assembly Parts Diagram

  • Title

1

Ariens 20000683

RIGHT HOUSING

$

$

Not available

2

Ariens 20000713

SPARK PLUG ACCESS COVER

$

$

Not available

3

Ariens 20000738

E85 LABEL

$

$

Not available

4

Ariens 20000745

FIRE DANGER LABEL

$

$

Not available

5

Ariens 20000666

FUEL FILTER

$3.99

$

Usually ships in 4-12 days

0

6

Ariens 20000741

FEATURES LABEL

$

$

Not available

7

Ariens 20000669

ENGINE

$

$

Not available

8

Ariens 20000730

CONTROL PANEL LABEL

$

$

Not available

9

Ariens 20000721

AUTO IDLE SWITCH

$

$

Not available

10

Ariens 20000678

STATOR ASSEMBLY

$150.99

$

In Stock, only 2 left!

0

11

Ariens 20000891

AC RECEPTACLE

Note: (120 Volt)

$3.99

$

Usually ships in 4-12 days

0

12

Ariens 20000724

IGNITION MODULE

$

$

Not available

13

Ariens 20000659

DC RECEPTACLE

$

$

Not available

14

Ariens 20000708

HEAT SHRINK TUBE

$

$

Not available

15

Ariens 20000661

BRIDGE RECTIFIER

$

$

Not available

16

Ariens 20000662

WIRING HARNESS (INTERNAL)

Note: (Internal)

$

$

Not available

17

Ariens 20000712

CONTROL PANEL

$

$

Not available

18

Ariens 20000722

PICK-UP COIL

$

$

Not available

19

Ariens 20000660

BATTERY CHARGING CABLE

$5.99

$

Usually ships in 4-12 days

0

20

Ariens 20000735

CORD LABEL

$

$

Not available

21

Ariens 20000740

HANDLE RELEASE LABEL

$

$

Not available

22

Ariens 20000667

HANDLE ASSEMBLY

$

$

Not available

23

Ariens 20000694

RUBBER FOOT

$

$

Not available

24

Ariens 20000672

REAR HANDLE AND WHEEL BRACKET

$

$

Not available

25

Ariens 20000709

WHEEL MOUNTING BOLT

$

$

Not available

26

Ariens 20000670

WHEEL

$5.99

$

Usually ships in 4-12 days

0

27

Ariens 20000716

HEX NUT (WHEEL MOUNTING)

Note: (Wheel Mounting)

$

$

Not available

28

Ariens 20000676

FUEL CAP ASSEMBLY

$

$

Not available

29

Ariens 20000679

FUEL OVERSPILL GUARD

$

$

Not available

30

Ariens 20000744

HANGTAG (WARNING)

Note: (Warning)

$

$

Not available

31

Ariens 20000675

FUEL TANK

$

$

Not available

32

Ariens 20000695

FUEL TANK SUPPORT

$

$

Not available

33

Ariens 20000717

CLAMP (D9 X 1.2 MM)

Note: (D9 x 1.2 mm)

$

$

Not available

34

Ariens 20000718

CLAMP (D7 X 0.8 MM)

Note: (D7 x 0.8 mm)

$

$

Not available

35

Ariens 20000698

FUEL LINE (D4 X D8 X 260 MM)

Note: (D4 x D8 x 260 mm)

$

$

Not available

36

Ariens 20000699

FUEL LINE (D4 X D8 X 130 MM)

Note: (D4 x D8 x 130 mm)

$

$

Not available

37

Ariens 20000697

FUEL LINE (D4 X D8 X 170 MM)

Note: (D4 x D8 x 170 mm)

$

$

Not available

38

Ariens 20000665

FUEL PUMP

$113.99

$

Usually ships in 4-12 days

0

39

Ariens 20000720

ENGINE SHUT OFF SWITCH

$3.49

$

Usually ships in 4-12 days

0

40

Ariens 20000733

QUICK START LABEL

$

$

Not available

41

Ariens 20000682

SWITCH HANDLE

$

$

Not available

42

Ariens 20000739

LUBRICANT LABEL

$

$

Not available

43

Ariens 20000715

BOLT (M6 X 30 MM)

Note: (M6 x 30 mm)

$

$

Not available

44

Ariens 20000746

LOGO LABEL

$

$

Not available

45

Ariens 20000734

CHOKE LABEL

$

$

Not available

46

Ariens 20000690

MAINTENANCE COVER

$7.49

$

Usually ships in 4-12 days

0

47

Ariens 20000714

BOLT (M6 X 100 MM)

Note: (M6 x 100 mm)

$

$

Not available

48

Ariens 20000681

LEFT HOUSING

$

$

Not available

49

Ariens 20000732

CPSC LABEL

$

$

Not available

50

Ariens 20000685

AIR FILTER BACK

$

$

Not available

51

Ariens 20000686

AIR FILTER COVER

$

$

Not available

52

Ariens 20000728

AIR FILTER (LOWER)

Note: (Lower)

$3.49

$

In Stock, only 1 left!

0

53

Ariens 20000729

AIR FILTER (UPPER)

Note: (Upper)

$

$

Not available

54

Ariens 20000705

INTAKE GASKE

$

$

Not available

55

Ariens 20000719

GOVERNOR DAMPING SPRING

$

$

Not available

56

Ariens 20000664

CARBURETOR ASSEMBLY

$

$

Not available

57

Ariens 20000704

CARBURETOR GASKET

$3.49

$

In Stock, only 1 left!

0

58

Ariens 20000684

HEAT DAM INSULATOR

$

$

Not available

59

Ariens 20000701

PULSE LINE (D7 X D11 X 160 MM)

Note: (D7 x D11 x 160 mm)

$

$

Not available

60

Ariens 20000673

DIPSTICK

$

$

Not available

61

Ariens 20000703

INSULATOR GASKET

$3.49

$

Usually ships in 4-12 days

0

62

Ariens 20000692

GOVERNOR BOTTOM COVER

$

$

Not available

63

Ariens 20000657

GOVERNOR

$13.99

$

Usually ships in 4-12 days

0

64

Ariens 20000693

GOVERNOR TOP COVER

$

$

Not available

65

Ariens 20000706

MANIFOLD GASKET

$

$

Not available

66

Ariens 20000707

MUFFLER GASKET

$

$

Not available

67

Ariens 20000668

MUFFLER

$

$

Not available

68

Ariens 20000710

SPARK ARRESTOR

$

$

Not available

69

Ariens 20000711

MUFFLER COVER SEAL

$

$

Not available

70

Ariens 20000688

MUFFLER COVER

$

$

Not available

71

Ariens 20000736

DATA LABEL

$

$

Not available

72

Ariens 20000742

COMBUSTION LABEL

$

$

Not available

73

Ariens 20000737

HOT SURFACE LABEL

$

$

Not available

74

Ariens 20000674

ROPE HANDLE ASSEMBLY

Note: (Inc. Key Nos. 75-76)

$3.49

$

Usually ships in 4-12 days

0

75

Ariens 20000687

HANDLE COVER (ROPE)

Note: (Rope)

$

$

Not available

76

Ariens 20000689

ROPE HANDLE

$

$

Not available

77

Ariens 20000677

RECOIL STARTER ASSEMBLY

Note: (Inc. Key Nos. 74-76)

$

$

Not available

78

Ariens 20000725

IGNITION COIL

$

$

Not available

79

Ariens 20000663

INVERTER MODULE

$532.99

$

Usually ships in 4-12 days

0

80

Ariens 20000671

FOOT BRACE (FRONT HANDLE)

Note: (Front Handle)

$

$

Not available

81

Ariens 20000696

INVERTER MODULE SUPPORT

$

$

Not available

82

Ariens 20000691

CONTROL PANEL HOLDER

$

$

Not available

83

Ariens 20000747

LOGO LABEL (SMALL)

Note: (Small)

$

$

Not available

84

Ariens 20000731

GROUND WARNING LABEL

$

$

Not available

85

Ariens 20000726

SPARK PLUG

$

$

Not available

86

Ariens 20000680

FUEL SHUT OFF VALVE

$

$

Not available

87

Ariens 20000743

HANGTAG (INSTRUCTIONS)

Note: (Instructions)

$

$

Not available

88

Ariens 20000727

PARALLEL PLUG

$

$

Not available

89

Ariens 20000723

CIRCUIT BREAKER (20 AMP)
(Superseded to 20000848)

Note: (20 Amp)

$45.99

$

Usually ships in 4-12 days

0

90

Ariens 20000702

RECEPTACLE COVER

$

$

Not available

Ariens 20000403

OWNER'S MANUAL ARI2000

Note: (Not shown)

$

$

Not available

Ariens 20000404

PARTS MANUAL ARI2000

Note: (Not shown)

$

$

Not available

Ariens 20000544

QUICK REF GUIDE ARI2000

Note: (Not shown)

$

$

Not available
