986052 - Gravely 7500 Watt Generator (SN: 000700 - 003015) Fuel Tank Parts Diagram

7500 Watt Generator

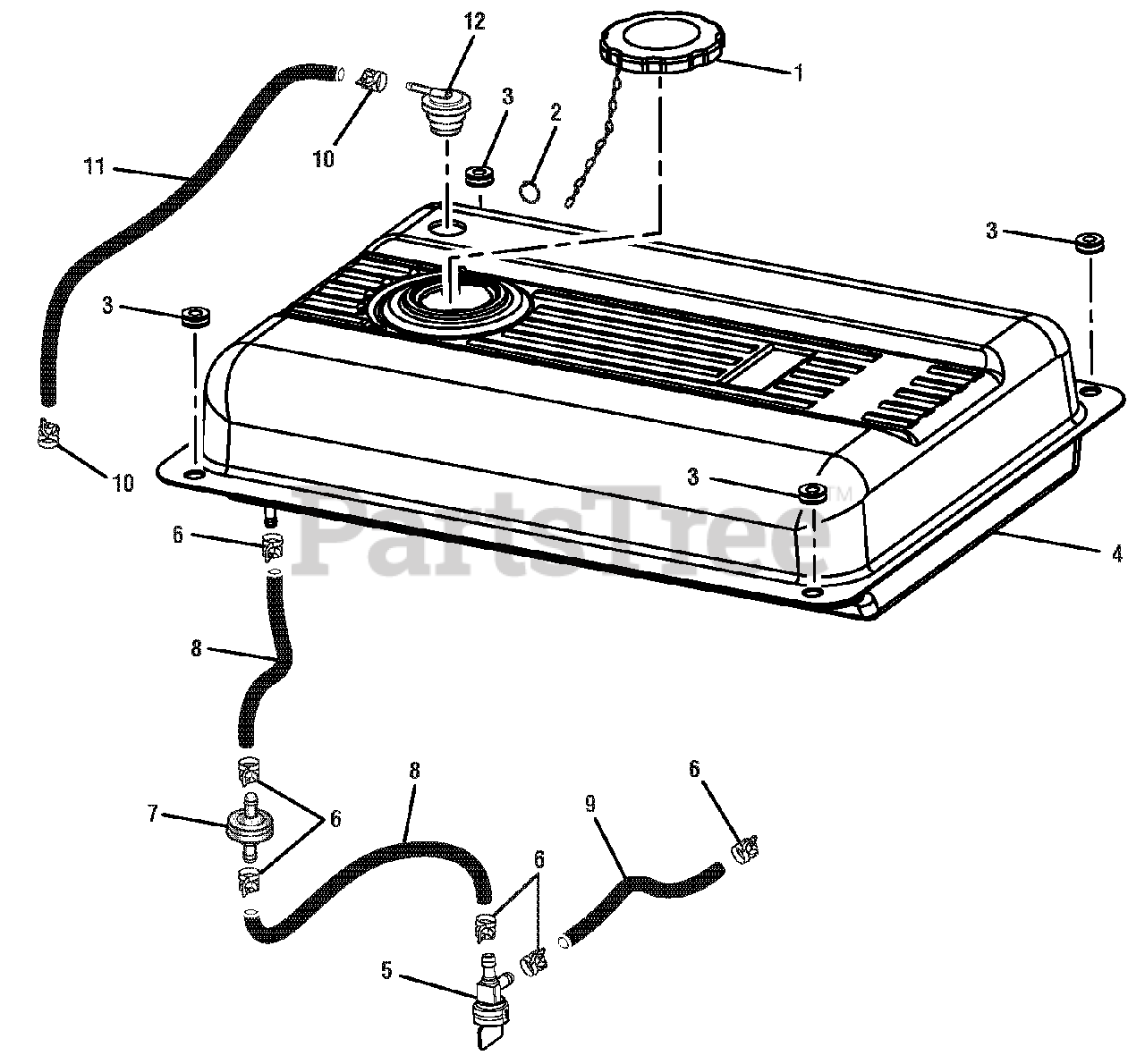

Fuel Tank Parts Diagram

  • Title

1

Gravely 20000818

Fuel Tank Cap

$

$

Not available

2

Gravely 20000845

Ring Clip

$

$

Not available

3

Gravely 20000780

Bushing w/Insert

$6.49

$

Usually ships in 4-12 days

0

4

Gravely 20000782

Fuel Tank

$251.99

$

In Stock, only 1 left!

0

5

Gravely 20000773

Fuel Valve

$

$

Not available

6

Gravely 20000840

Fuel Line Clamp (1/2 in.)

Note: (1/2 in.)

$3.49

$

Usually ships in 4-12 days

0

7

Gravely 20000775

Fuel Line Filter

$11.99

$

In Stock, only 1 left!

0

8

Gravely 20000796

Fuel Line (1/4 in.)

Note: (1/4 in.)

$

$

Not available

9

Gravely 20000797

Fuel Hose (1/4 in.)

Note: (1/4 in.)

$9.49

$

In Stock, only 1 left!

0

10

Gravely 20000846

Fuel Line Clamp (7/16 in.)

Note: (7/16 in.)

$

$

Not available

11

Gravely 20000798

Vapor Hose

$11.99

$

In Stock, only 2 left!

0

12

Gravely 20000789

Vapor Vent

$

$

Not available

13

Gravely 20000916

Rollover Hose

Note: NOT SHOWN

$

$

Not available
