986051 - Gravely 5000 Watt Generator (SN: 001010 & Above) Voltage Regulator Parts Diagram

5000 Watt Generator

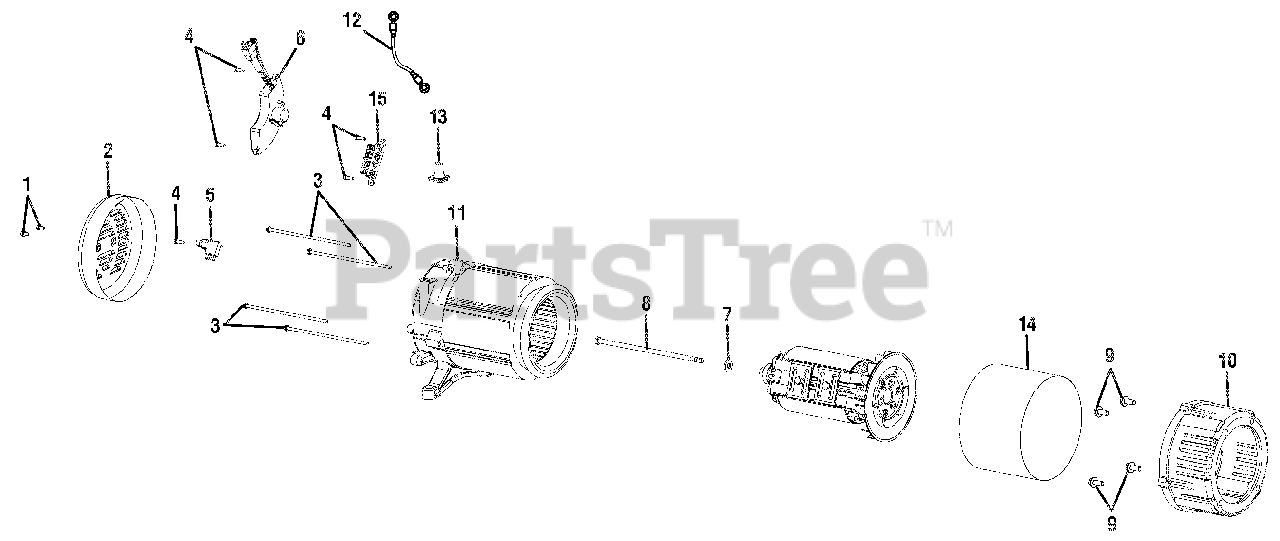

Voltage Regulator Parts Diagram

  • Title

1

Gravely 20000623

Bolt (M5 x 10 mm, FlangeHex Hd.)
(Superseded to 20000834)

Note: (M5 x 10 mm, FlangeHex Hd.)

$3.49

$

In Stock, only 2 left!

0

2

Gravely 20000630

Brush Cover
(Superseded to 20000839)

$12.99

$

In Stock, only 1 left!

0

3

Gravely 20000613

Bolt (1/4-20 x 6 in., Hex Hd.)

Note: (1/4-20 x 6 in., Hex Hd.)

$

$

Not available

4

Gravely 20000624

Bolt (M5 x 16 mm, Flange Hex Hd.)
(Superseded to 20000835)

Note: (M5 x 16 mm, Flange Hex Hd.)

$

$

Not available

5

Gravely 20000558

Brush Assembly
(Superseded to 20000769)

$

$

Not available

6

Gravely 20000557

Automatic Voltage Regulator
(Superseded to 20000768)

$129.99

$

Usually ships in 4-12 days

0

7

Gravely 20000593

Washer (5/16 in.)

Note: (5/16 in.)

$

$

Not available

8

Gravely 20000622

Bolt (5/16-24 x 230 mm, Hex. Hd.)

Note: (5/16-24 x 230 mm, Hex. Hd.)

$3.49

$

Usually ships in 4-12 days

0

9

Gravely 20000611

Bolt (3/8-16 x 1-1/4 in.)
(Superseded to 20000823)

Note: (3/8-16 x 1-1/4 in.)

$3.49

$

In Stock, only 4 left!

0

10

Gravely 20000609

Engine Adapter
(Superseded to 20000819)

$51.99

$

Usually ships in 4-12 days

0

11

Gravely 20000884

Bearing Housing

$

$

Not available

12

Gravely 20000559

Bonding Wire
(Superseded to 20000770)

$

$

Not available

13

Gravely 20000591

Rubber Boot
(Superseded to 20000803)

$

$

Not available

14

Gravely 20000888

Cover

$

$

Not available

15

Gravely 20000771

Terminal Block

$12.99

$

Usually ships in 4-12 days

0
