986051 - Gravely 5000 Watt Generator (SN: 001010 & Above) Main Assembly Parts Diagram

5000 Watt Generator

Main Assembly Parts Diagram

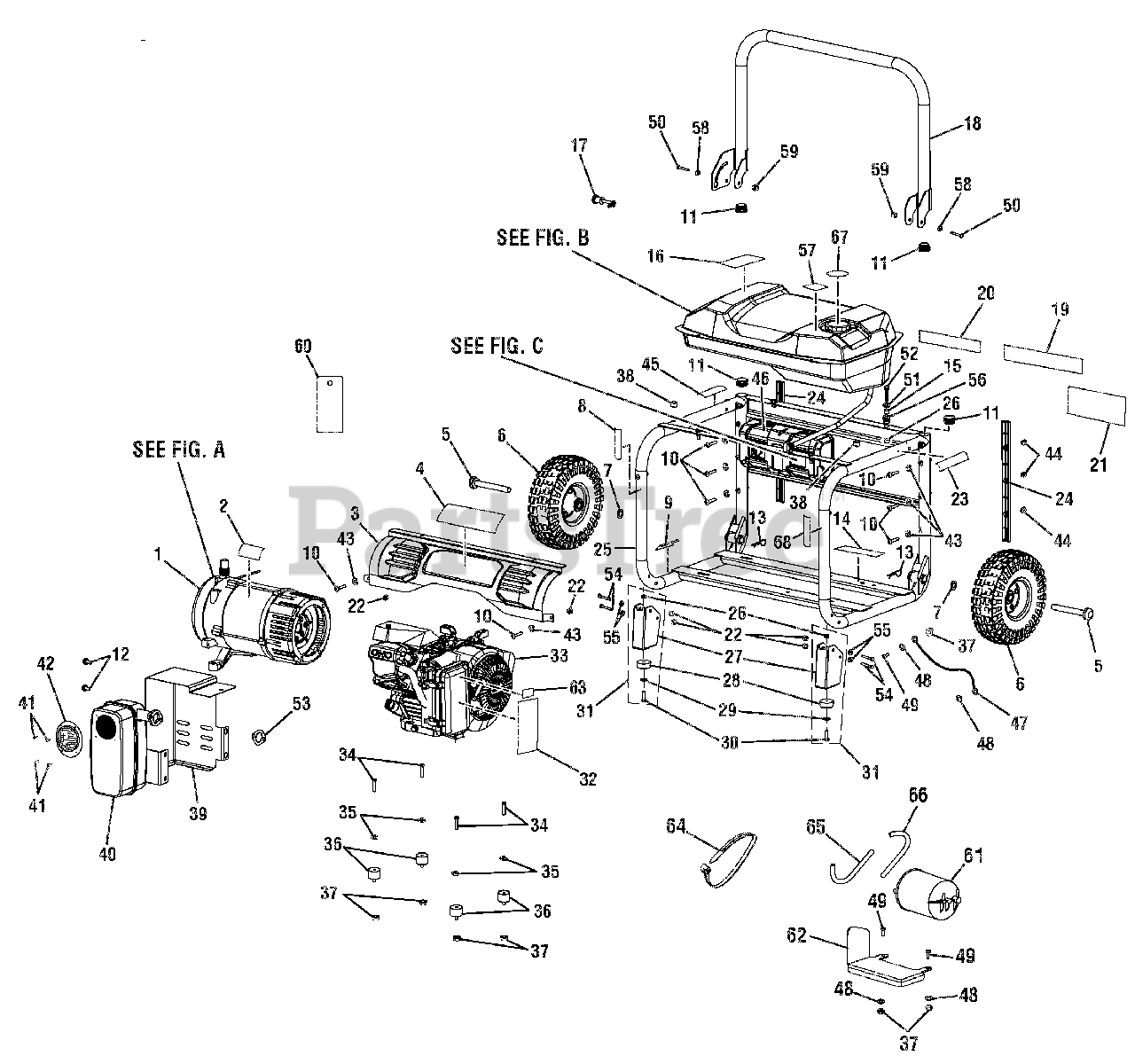

  • Title

1

Gravely 20000571

Generator Head Assembly (See Figure A)

Note: (See Figure A)

$884.99

$

Usually ships in 4-12 days

0

2

Gravely 20000886

Data Label

$

$

Not available

3

Gravely 20000561

Back Panel Assembly (Incl. Key No. 4)

Note: (Incl. Key No. 4)

$

$

Not available

4

Gravely 20000647

Back Panel Logo Label

$

$

Not available

5

Gravely 20000592

Axle

$

$

Not available

6

Gravely 20000563

Wheel

$

$

Not available

7

Gravely 20000602

Washer (5/8 in.)

Note: (5/8 in.)

$

$

Not available

8

Gravely 20000646

Hot Surface Label

$

$

Not available

9

Gravely 20000519

Label (UL fire warning)

Note: (UL fire warning)

$

$

Not available

10

Gravely 20000617

Bolt (1/4-20 x 42.5 mm, Torx Hd.)

Note: (1/4-20 x 42.5 mm, Torx Hd.)

$

$

Not available

11

Gravely 20000579

End Cap

$

$

Not available

12

Gravely 20000612

Bolt (5/16-24 x 5/8 in.)
(Superseded to 20000826)

Note: (5/16-24 x 5/8 in.)

$5.49

$

In Stock, only 2 left!

0

13

Gravely 20000628

Hitch Pin

$3.49

$

Usually ships in 4-12 days

0

14

Gravely 20000649

Lubricant Label
(Superseded to 20000864)

$

$

Not available

15

Gravely 20000577

Spacer (Fuel Tank Isolator)

Note: (Fuel Tank Isolator)

$

$

Not available

16

Gravely 20000641

CPSC Label
(Superseded to 20000854)

$

$

Not available

17

Gravely 20000562

Handle Release Pin Assembly

$5.99

$

Usually ships in 4-12 days

0

18

Gravely 20000569

Handle Assembly

$

$

Not available

19

Gravely 20000648

Danger Label

$

$

Not available

20

Gravely 20000639

Ground Warning Label

$

$

Not available

21

Gravely 20000638

Logo Label

$5.99

$

Usually ships in 4-12 days

0

22

Gravely 20000626

Lock Nut (1/4-20)
(Superseded to 06500812)

Note: (1/4-20)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 20000653

Fire Danger Label
(Superseded to 20000871)

$

$

Not available

24

Gravely 20000580

Frame Slide Rails

$

$

Not available

25

Gravely 20000565

Frame Assembly

$

$

Not available

26

Gravely 20000419

Lock Nut (1/4-20)
(Superseded to 20000836)

Note: (1/4-20)

$

$

Not available

27

Gravely 20000606

Foot

$

$

Not available

28

Gravely 20000485

Wear Pad

$3.49

$

Usually ships in 4-12 days

0

29

Gravely 20000420

Washer (1/4 in.)

Note: (1/4 in.)

$

$

Not available

30

Gravely 20000486

Bolt (1/4-20 x 1 in., Hex Hd.)

Note: (1/4-20 x 1 in., Hex Hd.)

$

$

Not available

31

Gravely 20000575

Foot Assembly (Incl. Key Nos. 26-30)

Note: (Incl. Key Nos. 26-30)

$

$

Not available

32

Gravely 20000642

Starting Instruction Label

$

$

Not available

33

**

Engine (Subaru EX30)(Parts available at your local Subaru dealer)

Note: (Subaru EX30)(Parts available at your local Subaru dealer)

$

$

Not available

34

Gravely 20000610

Bolt (5/16-18 x 1.5 in.)
(Superseded to 20000822)

Note: (5/16-18 x 1.5 in.)

$

$

Not available

35

Gravely 20000603

Lock Washer (5/16)
(Superseded to 20000813)

Note: (5/16)

$3.49

$

In Stock, only 1 left!

0

36

Gravely 20000582

Isolator (Generator)
(Superseded to 20000943)

Note: (Generator)

$

$

Not available

37

Gravely 20000627

Hex Nut (5/16-18, Flange Hd.)
(Superseded to 20000837)

Note: (5/16-18, Flange Hd.)

$

$

Not available

38

Gravely 20000586

Rubber Handle Bumper

$3.49

$

Usually ships in 4-12 days

0

39

Gravely 20000601

Back Muffler Cover

$

$

Not available

40

Gravely 20000568

Muffler (Subaru EX30)

Note: (Subaru EX30)

$

$

Not available

41

Gravely 20000616

Screw (8-32 x 3/8 in.)
(Superseded to 20000828)

Note: (8-32 x 3/8 in.)

$

$

Not available

42

Gravely 20000594

Spark Arrestor
(Superseded to 20000804)

$7.49

$

Usually ships in 4-12 days

0

43

Gravely 20000634

Lock Washer (M6)

Note: (M6)

$

$

Not available

44

Gravely 20000633

Hex Nut (1/4-20)

Note: (1/4-20)

$

$

Not available

45

Gravely 20000640

Pin Release Label

$

$

Not available

46

Gravely 20000560

Control Panel (See Figure C)

Note: (See Figure C)

$

$

Not available

47

Gravely 20000556

Ground Wire Assembly
(Superseded to 20000764)

$

$

Not available

48

Gravely 20000605

Star Washer (5/16 in.)
(Superseded to 20000816)

Note: (5/16 in.)

$

$

Not available

49

Gravely 20000619

Bolt (5/16-18 x 3/4 in.)
(Superseded to 20000829)

Note: (5/16-18 x 3/4 in.)

$

$

Not available

50

Gravely 20000482

Bolt (M8 x 55 mm, Hex Hd.)

Note: (M8 x 55 mm, Hex Hd.)

$

$

Not available

51

Gravely 20000596

Washer (1/4 in.)
(Superseded to 20000806)

Note: (1/4 in.)

$

$

Not available

52

Gravely 20000620

Bolt (1/4-20 x 1 in.)
(Superseded to 20000831)

Note: (1/4-20 x 1 in.)

$

$

Not available

53

20000599 **

Muffler Gasket

$

$

Not available

54

Gravely 20000618

Bolt (1/4-20 x 2 in., T30 Torx Hd.)

Note: (1/4-20 x 2 in., T30 Torx Hd.)

$

$

Not available

55

Gravely 20000597

Washer (1/4 in.)

Note: (1/4 in.)

$

$

Not available

56

Gravely 20000581

Isolator (Fuel Tank)

Note: (Fuel Tank)

$

$

Not available

57

Gravely 20000651

E85 Label
(Superseded to 20000869)

$

$

Not available

58

Gravely 20000595

Washer (3/8 in.)
(Superseded to 20000805)

Note: (3/8 in.)

$

$

Not available

59

Gravely 20000632

Hex Nut (M8)

Note: (M8)

$

$

Not available

60

Gravely 20000656

Danger Hang Tag

$

$

Not available

61

Gravely 20000887

Canister

$75.99

$

Usually ships in 4-12 days

0

62

Gravely 20000607

Canister Bracket

$

$

Not available

63

Gravely 20000643

Choke Label

$

$

Not available

64

Gravely 20000637

Cable Tie
(Superseded to 20000850)

$

$

Not available

65

Gravely 20000583

Purge Hose

$

$

Not available

66

Gravely 20000916

Rollover Hose

$

$

Not available

67

Gravely 20000652

Fuel Stabilizer Label
(Superseded to 20000870)

$

$

Not available

68

Gravely 20000654

Fire Distance Label
(Superseded to 20000872)

$

$

Not available

Gravely 20000885

Operator’s Manual

$

$

Not available
