986050 - Gravely Digital Inverter Generator (SN: 000101 & Above) Main Assembly Parts Diagram

Digital Inverter Generator

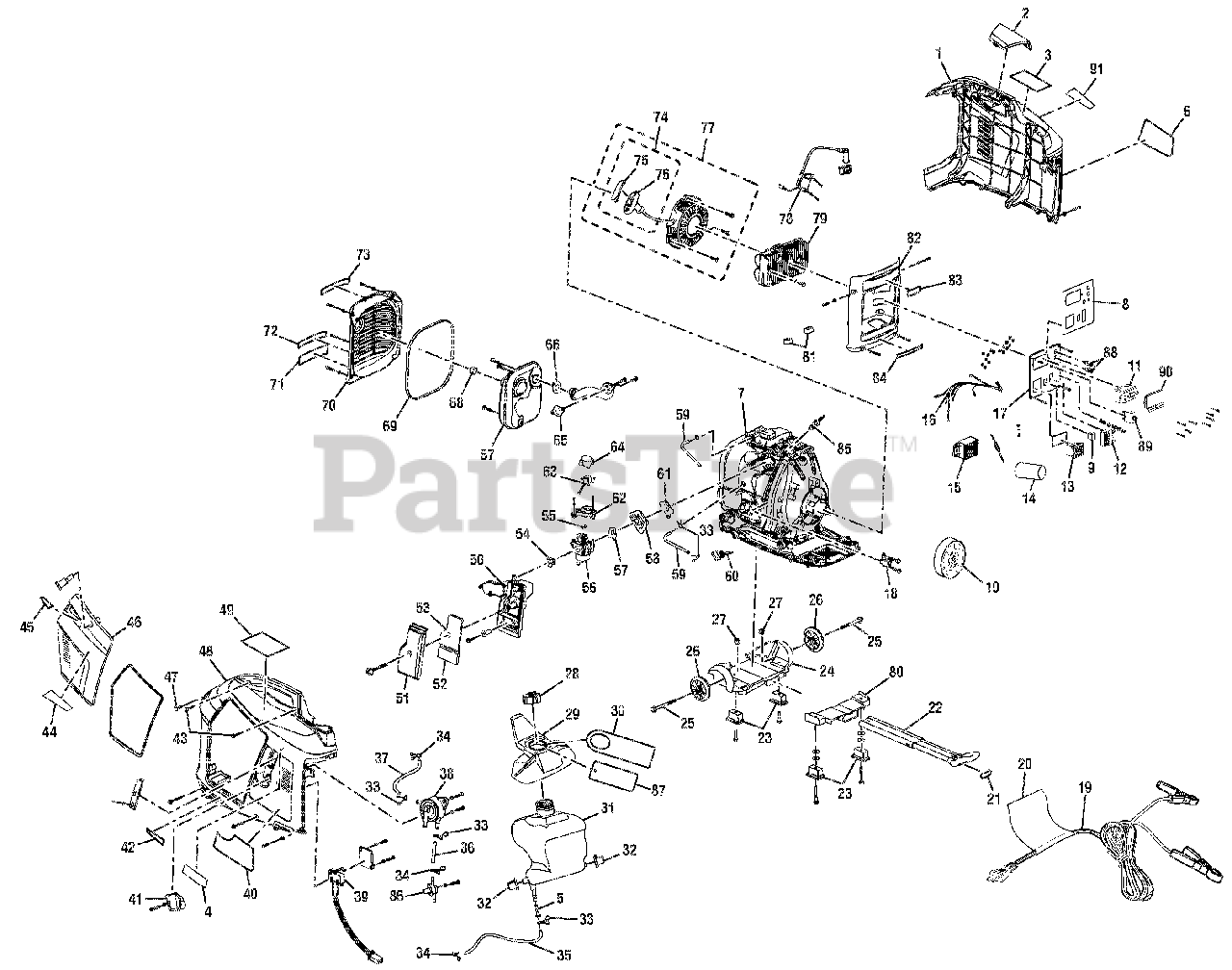

Main Assembly Parts Diagram

  • Title

1

Gravely 20000751

Right Housing

$

$

Not available

2

Gravely 20000748

Spark Plug Access Cover

$

$

Not available

3

Gravely 20000738

E85 Label

$

$

Not available

4

Gravely 20000745

Fire Danger Label

$

$

Not available

5

Gravely 20000666

Fuel Filter

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 20000752

Features Label

$

$

Not available

7

Gravely 20000669

Engine

$

$

Not available

8

Gravely 20000730

Control Panel Label

$

$

Not available

9

Gravely 20000721

Auto Idle Switch

$

$

Not available

10

Gravely 20000678

Stator Assembly

$150.99

$

In Stock, only 2 left!

0

11

Gravely 20000658

AC Receptacle (20 Volt)

Note: (20 Volt)

$5.99

$

Usually ships in 4-12 days

0

12

Gravely 20000724

Ignition Module

$

$

Not available

13

Gravely 20000659

DC Receptacle

$

$

Not available

14

Gravely 20000708

Heat Shrink Tube

$

$

Not available

15

Gravely 20000661

Bridge Rectifier.

$

$

Not available

16

Gravely 20000662

Wiring Harness (Internal)

Note: (Internal)

$

$

Not available

17

Gravely 20000712

Control Panel

$

$

Not available

18

Gravely 20000722

Pick-Up Coil

$

$

Not available

19

Gravely 20000660

Battery Charging Cable

$6.99

$

Usually ships in 4-12 days

0

20

Gravely 20000735

Cord Label

$

$

Not available

21

Gravely 20000740

Handle Release Label

$

$

Not available

22

Gravely 20000667

Handle Assembly

$

$

Not available

23

Gravely 20000694

Rubber Foot

$

$

Not available

24

Gravely 20000672

Rear Handle and Wheel Bracket

$

$

Not available

25

Gravely 20000709

Wheel Mounting Bolt

$

$

Not available

26

Gravely 20000670

Wheel

$5.99

$

Usually ships in 4-12 days

0

27

Gravely 20000716

Hex Nut (Wheel Mounting)

Note: (Wheel Mounting)

$

$

Not available

28

Gravely 20000676

Fuel Cap Assembly

$

$

Not available

29

Gravely 20000679

Fuel Overspill Guard

$

$

Not available

30

Gravely 20000744

Hangtag (Warning).

Note: (Warning).

$

$

Not available

31

Gravely 20000675

Fuel Tank

$

$

Not available

32

Gravely 20000695

Fuel Tank Support

$

$

Not available

33

Gravely 20000717

Clamp (09 x 1.2 mm)

Note: (09 x 1.2 mm)

$

$

Not available

34

Gravely 20000718

Clamp (07 x 0.8 mm)

Note: (07 x 0.8 mm)

$

$

Not available

35

Gravely 20000698

Fuel Line (04 x 08 x 260 mm)

Note: (04 x 08 x 260 mm)

$

$

Not available

36

Gravely 20000699

Fuel Line (04 x 08 x 130 mm)

Note: (04 x 08 x 130 mm)

$

$

Not available

37

Gravely 20000697

Fuel Line (04 x 08 x 170 mm)

Note: (04 x 08 x 170 mm)

$

$

Not available

38

Gravely 20000665

Fuel Pump

$129.99

$

Usually ships in 4-12 days

0

39

Gravely 20000720

Engine Shut Off Switch

$3.49

$

Usually ships in 4-12 days

0

40

Gravely 20000753

Quick Start Label

$

$

Not available

41

Gravely 20000682

Switch Handle

$

$

Not available

42

Gravely 20000739

Lubricant Label

$

$

Not available

43

Gravely 20000715

Bolt (M6 x 30 mm)

Note: (M6 x 30 mm)

$

$

Not available

44

Gravely 20000754

Logo Label (Left)

Note: (Left)

$

$

Not available

45

Gravely 20000734

Choke Label

$

$

Not available

46

Gravely 20000749

Maintenance Cover

$9.49

$

Usually ships in 4-12 days

0

47

Gravely 20000714

Bolt (M6 x 100 mm)

Note: (M6 x 100 mm)

$

$

Not available

48

Gravely 20000750

Left Housing

$

$

Not available

49

Gravely 20000732

CPSC Label

$

$

Not available

50

Gravely 20000685

Air Filter Back

$

$

Not available

51

Gravely 20000686

Air Filter Cover.

$

$

Not available

52

Gravely 20000728

Air Filter (Lower)

Note: (Lower)

$3.49

$

In Stock, only 1 left!

0

53

Gravely 20000729

Air Filter (Upper)

Note: (Upper)

$

$

Not available

54

Gravely 20000705

Intake Gasket

$

$

Not available

55

Gravely 20000719

Governor Damping Spring

$

$

Not available

56

Gravely 20000664

Carburetor Assembly

$

$

Not available

57

Gravely 20000704

Carburetor Gasket

$3.49

$

In Stock, only 1 left!

0

58

Gravely 20000684

Heat Dam Insulator

$

$

Not available

59

Gravely 20000701

Pulse Line (D7 x D11 x 160 mm)

Note: (D7 x D11 x 160 mm)

$

$

Not available

60

Gravely 20000673

Dipstick

$

$

Not available

61

Gravely 20000703

Insulator Gasket

$3.49

$

Usually ships in 4-12 days

0

62

Gravely 20000692

Governor Bottom Cover

$

$

Not available

63

Gravely 20000657

Governor

$15.99

$

Usually ships in 4-12 days

0

64

Gravely 20000693

Governor Top Cover

$

$

Not available

65

Gravely 20000706

Manifold Gasket

$

$

Not available

66

Gravely 20000707

Muffler Gasket

$

$

Not available

67

Gravely 20000668

Muffler

$

$

Not available

68

Gravely 20000710

Spark Arrestor

$

$

Not available

69

Gravely 20000711

Muffler Cover Seal

$

$

Not available

70

Gravely 20000688

Muffler Cover

$

$

Not available

71

Gravely 20000755

Data Label

$

$

Not available

72

Gravely 20000742

Combustion Label

$

$

Not available

73

Gravely 20000737

Hot Surface Label

$

$

Not available

74

Gravely 20000674

Rope Handle Assembly (Inc. Key Nos. 75-76)

Note: (Inc. Key Nos. 75-76)

$3.49

$

Usually ships in 4-12 days

0

75

Gravely 20000687

Handle Cover (Rope)

Note: (Rope)

$

$

Not available

76

Gravely 20000689

Rope Handle

$

$

Not available

77

Gravely 20000677

Recoil Starter Assembly (Inc. Key Nos. 74-76)

Note: (Inc. Key Nos. 74-76)

$

$

Not available

78

Gravely 20000725

Ignition Coil

$

$

Not available

79

Gravely 20000663

Inverter Module

$604.99

$

Usually ships in 4-12 days

0

80

Gravely 20000671

Foot Brace (Front Handle)

Note: (Front Handle)

$

$

Not available

81

Gravely 20000696

Inverter Module Support

$

$

Not available

82

Gravely 20000691

Control Panel Holder

$

$

Not available

83

Gravely 20000756

Logo Label (Small)

Note: (Small)

$

$

Not available

84

Gravely 20000731

Ground Warning Label

$

$

Not available

85

Gravely 20000726

Spark Plug

$

$

Not available

86

Gravely 20000680

Fuel Shut Off Valve

$

$

Not available

87

Gravely 20000743

Hangtag (Instructions)

Note: (Instructions)

$

$

Not available

88

Gravely 20000727

Parallel Plug

$

$

Not available

89

Gravely 20000723

Circuit Breaker (20 Amp)
(Superseded to 20000848)

Note: (20 Amp)

$45.99

$

Usually ships in 4-12 days

0

90

Gravely 20000702

Receptacle Cover

$

$

Not available

91

Gravely 20000757

Logo Label (Right)

Note: (Right)

$

$

Not available

Gravely 20000401

Operator's Manual (Not shown)

Note: (Not shown)

$

$

Not available

Gravely 20000402

Replacement Parts List (Not shown)

Note: (Not shown)

$

$

Not available

Gravely 20000543

Quick Start Guide (Not shown)

Note: (Not shown)

$

$

Not available
