9860-0 - Generac 5,500 Watt Portable Generator Generator Control Panel Parts Diagram

5,500 Watt Portable Generator

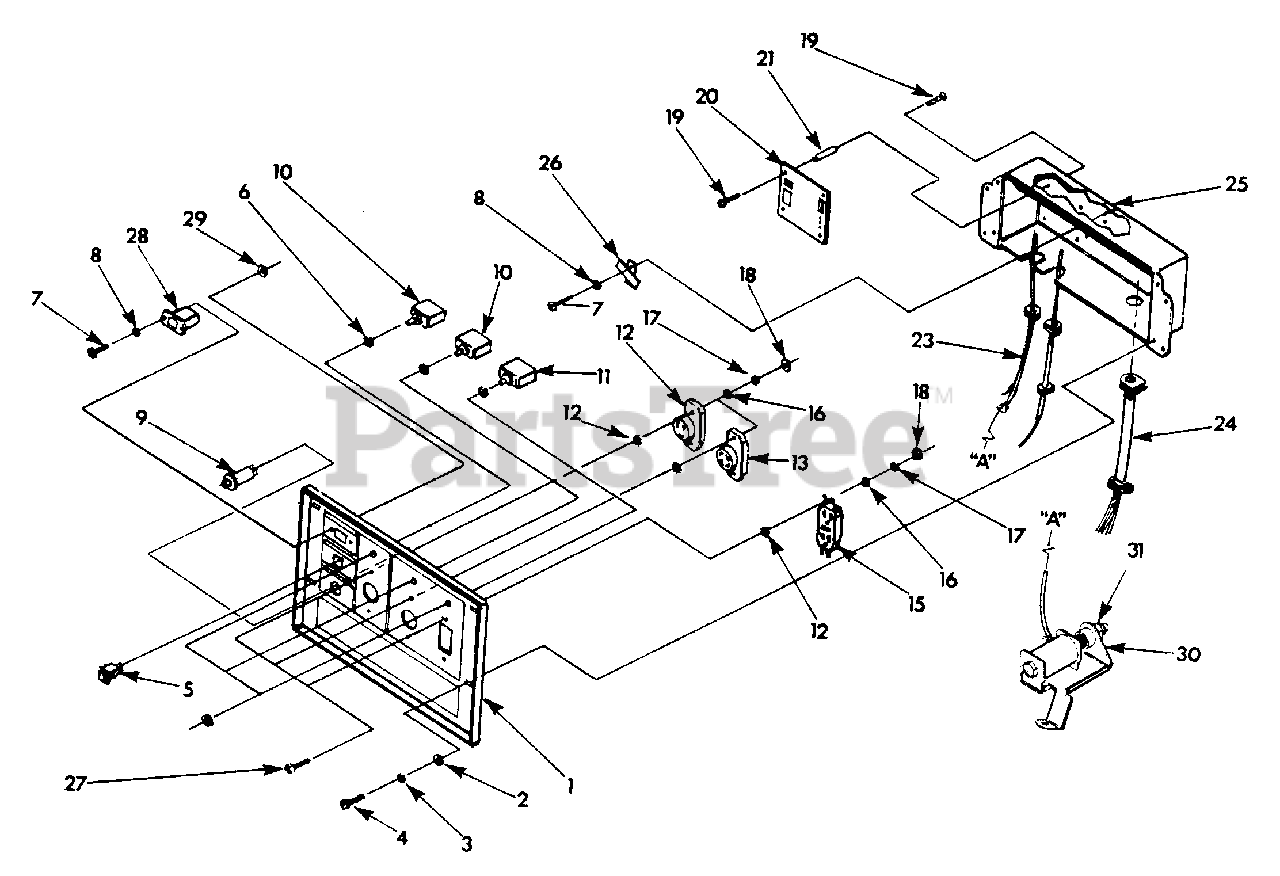

Generator Control Panel Parts Diagram

  • Title

1

Briggs & Stratton 94113

Control panel
(Superseded to 94113GS)

$

$

Not available

2

Briggs & Stratton 23897

#10 (M5) Flatwasher
(Superseded to 23897GS)

$2.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 49226

M5 Lockwasher
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 91526

M5-0.8 x 12mm Screw

$

$

Not available

5

Briggs & Stratton 82538

Idle control switch
(Superseded to 82538GS)

$6.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 82881

7/16" Int. lockwasher
(Superseded to 82881GS)

$1.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 43181

M3-0.5 x 10mm Screw
(Superseded to 43181GS)

$3.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 43182

M3 Lockwasher
(Superseded to 43182GS)

$3.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 61525

125 VAC neon lamp

$

$

Currently unavailable

10

75207A

30 amp Circuit breaker

$

$

Not available

11

Briggs & Stratton 75207

20 amp Circuit breaker
(Superseded to 209872GS)

$9.99

$

In Stock, only 4 left!

0

12

Briggs & Stratton 23365

#8 Shakeproof washer
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 68868

120 volts, 30 amp Locking type outlet
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 43437

120/240 volts, 30 amp Locking type outlet

$

$

Not available

15

Briggs & Stratton 80409

120 volts, 20 amp Outlet
(Superseded to 80409GS)

$102.99

$

In Stock, Qty 5

0

16

Briggs & Stratton 43180

M4 Flatwasher
(Superseded to 5043180B)

$54.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 22264

#8 (M4) Lockwasher

$

$

Not available

18

Briggs & Stratton 51715

M4-0.7 Hex nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

19

#6-32 x 3/8" Screw

Note: Standard hardware item, available locally

$

$

Not available

20

Briggs & Stratton 83970

System control board
(Superseded to 83970GS)

$

$

Not available

21

Briggs & Stratton 64525

3/4" Hex stand-off

$

$

Currently unavailable

23

Briggs & Stratton 84335

Wire harness assembly
(Superseded to 84335GS)

$39.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 84134

Rubber grommet
(Superseded to 84134GS)

$5.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 92069

Control panel box

$

$

Not available

26

Briggs & Stratton 84028

Idel control transformer
(Superseded to 84028GS)

$47.99

$

In Stock, only 1 left!

0

27

Briggs & Stratton 75475

M4-0.7 x 10mm Screw

$

$

Not available

28

Briggs & Stratton 77604

Hour meter
(Superseded to 77604GS)

$112.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 51714

M3-0.5 Hex nut
(Superseded to 51714GS)

$3.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 73101

Governor adjustment bracket with idle control

$

$

Currently unavailable

31

Briggs & Stratton 66311

M8-1.25 JAM nut

$

$

Currently unavailable
