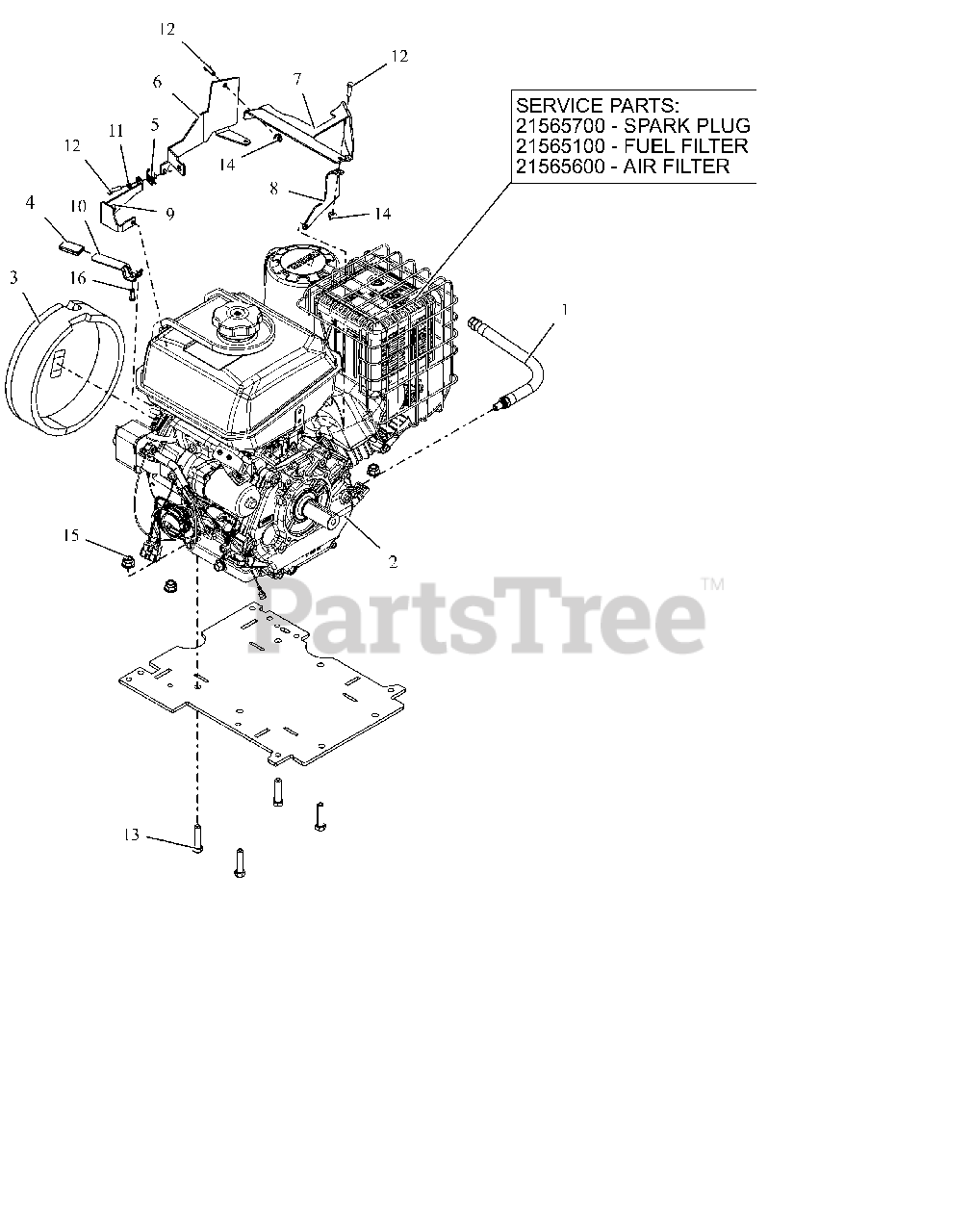

985911 - Gravely Pro-QXT Walk-Behind 2-Wheel Tractor, Kohler CH (SN: 000101 & Above) Engine - Kohler - CH440, 12V Parts Diagram

Pro-QXT Walk-Behind 2-Wheel Tractor, Kohler CH

Engine - Kohler - CH440, 12V Parts Diagram

  • Title

1

Gravely 05088200

HOSE, OIL DRAIN

$22.99

$

Usually ships in 4-12 days

0

2

Gravely 08201316

ENGINE, KOHLER - CH440 12V

$

$

Currently unavailable

2

Gravely 21565700

PLUG,SPARK - KOHLER CH395/440

Note: SERVICE PART

$10.99

$

Usually ships in 4-12 days

0

2

Gravely 21565100

FILTER, FUEL (IN TANK)

Note: SERVICE PART

$11.99

$

Usually ships in 4-12 days

0

2

Gravely 21565600

FILTER,AIR - KOHLER CH395/440

Note: SERVICE PART

$19.99

$

Usually ships in 4-12 days

0

3

Gravely 09121100

COVER, FOAM, KOHLER

$64.99

$

In Stock, only 1 left!

0

4

Gravely 04928700

GRIP, THUMB LATCH

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 07001728

NUT-RTNR M6X1

$

$

Not available

6

Gravely 09139251

PLT, ENGINE SHIELD - FRONT (BLACK)

$

$

Currently unavailable

7

Gravely 09139351

PLT, ENGINE SHIELD LH (BLACK)

$

$

Currently unavailable

8

Gravely 09139451

PLT, ENGINE SHIELD-SUPPORT (BLACK)

$

$

Currently unavailable

9

Gravely 09139551

GUARD, ENGINE WINTER (BLACK)

$

$

Currently unavailable

10

Gravely 09149453

THROTTLE EXT, KOHLER

$6.49

$

Usually ships in 4-12 days

0

11

Gravely 06401009

WSHR,LK-REG .250X.062 ZCC

$0.99

$

In Stock, Qty 15

0

12

Gravely 05901610

BLT, HEX M6-1.0 X 20 G8.8 ZCC

$2.49

$

Usually ships in 4-12 days

0

13

Gravely 05901708

BLT,HEX M10-1.5X45 G8.8 ZCC

$5.99

$

Usually ships in 4-12 days

0

14

Gravely 06500729

NUT,NYL-FLG M6-1.0 G8.8 ZCC

$2.99

$

Usually ships in 4-12 days

0

15

Gravely 06500731

NUT,NYL-FLG M10-1.5 G8.8 ZCC

$3.49

$

Usually ships in 4-12 days

0

16

Gravely 07413000

SCR-TAP 10-24X.75 HWH TR YWZC
(Superseded to 07400118)

$3.99

$

In Stock, Qty 8

0
