985911 - Gravely Pro-QXT Walk-Behind 2-Wheel Tractor, Kohler CH (SN: 000101 & Above) Belts and Pulley Parts Diagram

Pro-QXT Walk-Behind 2-Wheel Tractor, Kohler CH

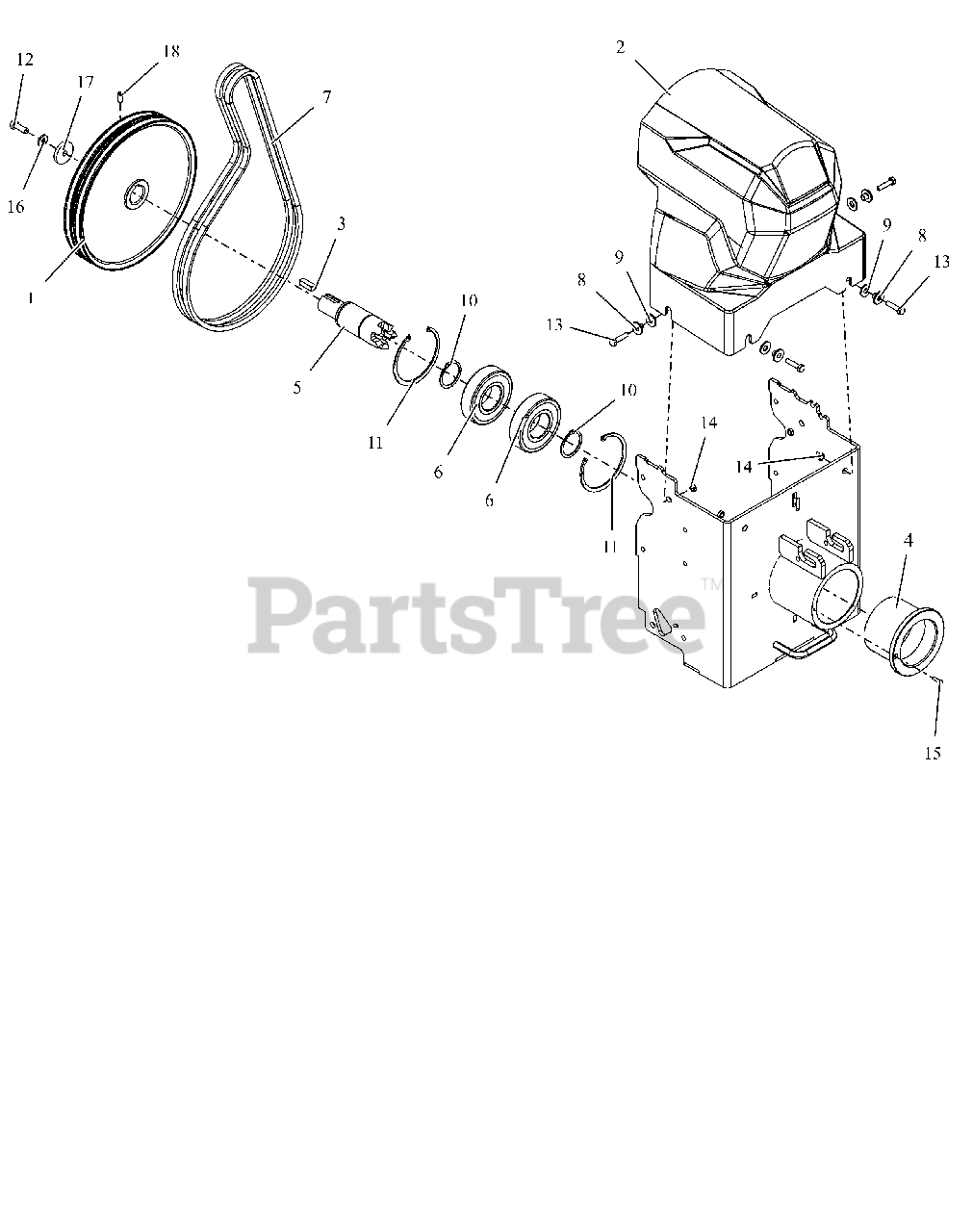

Belts and Pulley Parts Diagram

  • Title

1

Gravely 09121600

PULLEY, DBL PTO INPUT

$232.99

$

Usually ships in 4-12 days

0

2

Gravely 04959900

COVER, FRONT BELT

$91.99

$

Usually ships in 4-12 days

0

3

Gravely 06606800

KEY-SQ .38X1.25X.375

$4.99

$

Usually ships in 4-12 days

0

4

Gravely 09115500

BUSHING, OUTPUT

$41.99

$

Usually ships in 4-12 days

0

5

Gravely 09118400

SHAFT, PTO

$410.99

$

Usually ships in 4-12 days

0

6

Gravely 09121300

BRG, BALL 6310-2RS

$90.99

$

Usually ships in 4-12 days

0

7

Gravely 09122000

V-BELT,HA DBLCLUTCHCOVER(SET)

$68.99

$

Usually ships in 4-12 days

0

8

Gravely 09130900

BSHG, BELT COVER

$15.99

$

Usually ships in 4-12 days

0

9

Gravely 09131000

WSHR,.093X.425X1.000 EPDM 50A

$3.49

$

Usually ships in 4-12 days

0

10

Gravely 05700220

RING, RETAINING EXT 50 X 2MM

$3.49

$

Usually ships in 4-12 days

0

11

Gravely 05700219

RING, RETAINING INT 4.25X.109"

$17.99

$

Usually ships in 4-12 days

0

12

Gravely 05901625

BLT, HEX M10-1.5 X 30 G8.8 ZCC

$2.49

$

Usually ships in 4-12 days

0

13

Gravely 05901713

BLT, HEX M8-1.25X35 GR8.8ZC120

$3.99

$

Usually ships in 4-12 days

0

14

Gravely 06500817

NUT,NYL M8-1.25 G8.8 ZCC

$1.49

$

Usually ships in 4-12 days

0

15

Gravely 05901607

SCR, SKH M5-.8 X 16 12.9 ZC120

$3.49

$

Usually ships in 4-12 days

0

16

Gravely 06401005

WSHR,BLVL,M10 X 25 X 3.9 ZCMCH

$24.99

$

Usually ships in 4-12 days

0

17

Gravely 06401004

WSHR,FLT .406X1.75X.25 ZCC

$5.99

$

Usually ships in 4-12 days

0

18

Gravely 06000224

SCR, SET .38-24X.75 SK CUP

$2.99

$

Usually ships in 4-12 days

0
