985910 - Gravely Pro-QXT Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Idlers And Tensioner Parts Diagram

Pro-QXT Walk-Behind 2-Wheel Tractor

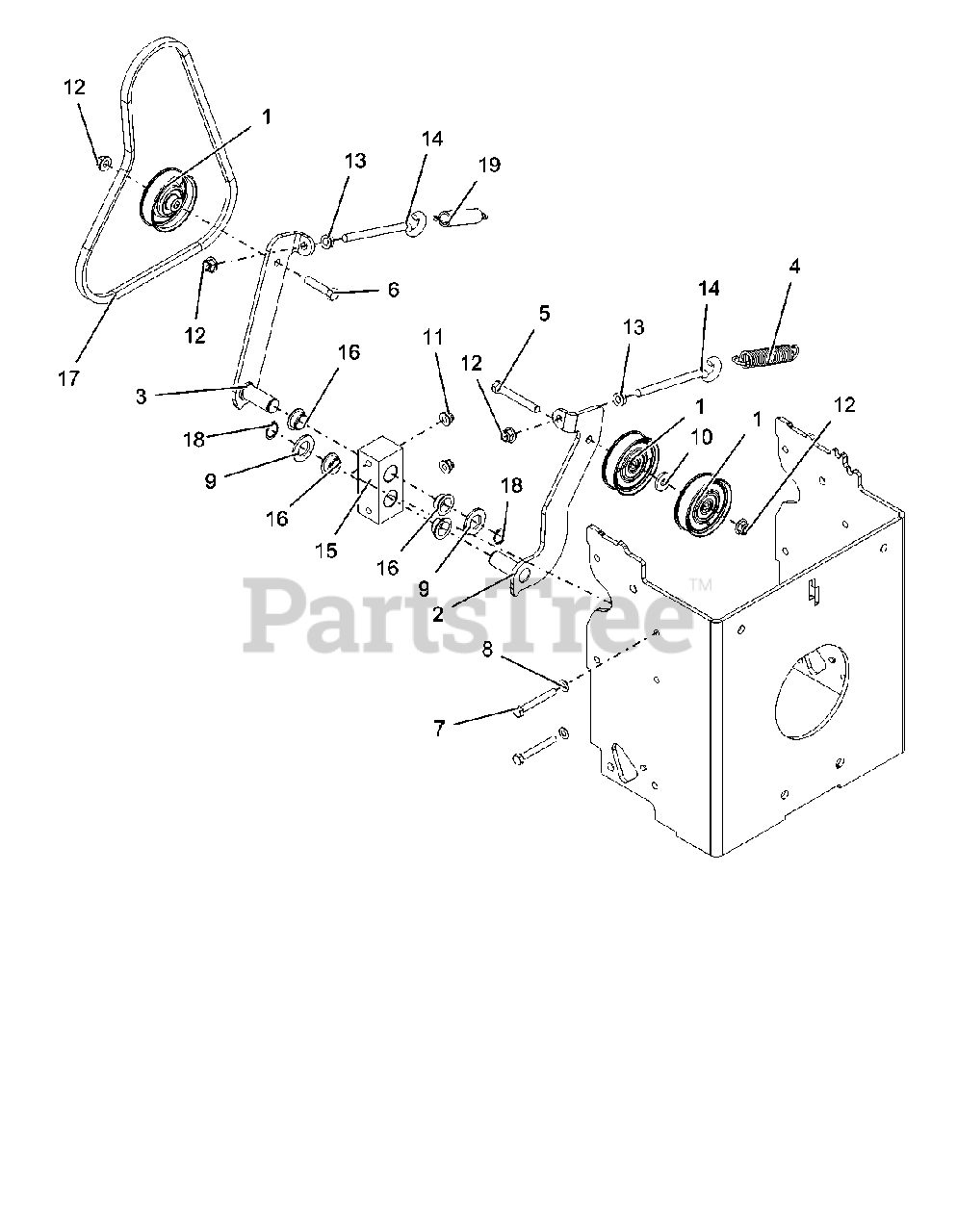

Idlers And Tensioner Parts Diagram

  • Title

1

Gravely 07340000

IDLER, FLAT - 3.05" X .75"
(Superseded to 07350200)

$22.99

$

Usually ships in 4-12 days

0

2

Gravely 09115853

WLDMT, TENSIONER PTO BELT-RED

$85.99

$

Usually ships in 4-12 days

0

3

Gravely 09115953

WLDMT, TENSIONER TRANS BELT-RED

$76.99

$

Usually ships in 4-12 days

0

4

Gravely 00110580

SPRG, EXTENSION

$17.99

$

In Stock, only 1 left!

0

5

Gravely 05901611

BLT, HEX 0.375-16X2.75 GR5 ZC120

$3.99

$

In Stock, only 3 left!

0

6

Gravely 05901612

BLT, HEX 0.375-16X1.75 GR5 ZC120

$2.99

$

In Stock, only 1 left!

0

7

Gravely 05901613

BLT, HEX M8-1.25X65 GR8.8 ZC120

$3.49

$

Usually ships in 4-12 days

0

8

Gravely 06401002

WSHR-FL-STL .323X.625X.062 ROHS

$1.49

$

Usually ships in 4-12 days

0

9

Gravely 06401003

WSHR-FL-STL .196X.500X.06 ROHS

$3.49

$

Usually ships in 4-12 days

0

10

Gravely 06443800

WSHR-FL-STL .438X1.00X.160 YWZC

$3.99

$

Usually ships in 4-12 days

0

11

Gravely 06500725

NUT, LK-NYL-FLG M8-1.25 GR8.8 ZC120

$3.49

$

Usually ships in 4-12 days

0

12

Gravely 06500726

NUT, LK-NYL-FLG .38-16 GR5 ZC120

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06500735

NUT, FLG-SPNLK .375-16 GR5 ZC120

$1.49

$

In Stock, Qty 20+

0

14

Gravely 07001733

BOLT, EYE .38-16X4.50 .62DIABZ

$13.99

$

Usually ships in 4-12 days

0

15

Gravely 09120453

BLOCK, BRG IDLER-RED

$56.99

$

Usually ships in 4-12 days

0

16

Gravely 09121500

BSHG, IDLER EP BB2012

$11.99

$

Usually ships in 4-12 days

0

17

Gravely 09122100

V-Belt, HA-DOUBLE CLUTCHING COVER

$29.99

$

Usually ships in 4-12 days

0

18

102214

SNAP RING, .781 X .042 EXT

$

$

Not available

19

Gravely B10195

Spring

$

$

Not available
