985910 - Gravely Pro-QXT Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Hydro Tank Parts Diagram
Pro-QXT Walk-Behind 2-Wheel Tractor

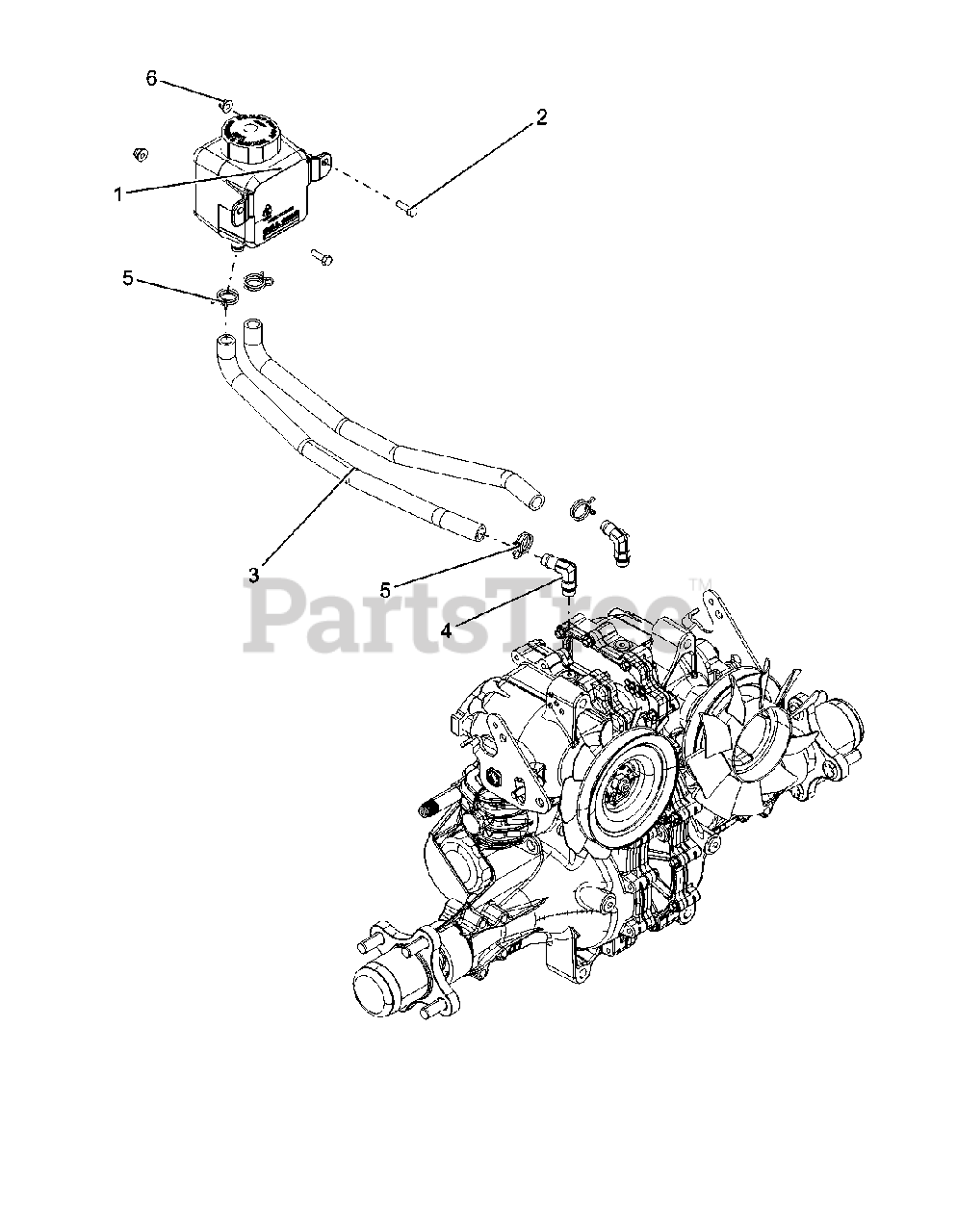

Hydro Tank Parts Diagram
Gravely 04894600
TANK, HYDRO OVERFLOW 700ML
$
$
Not available
Gravely 05901610
BLT, HEX M6-1X20 GR8.8 ZC120
$
$
Not available
Gravely 09122300
HOSE, HYDRO .50" ID X 17.125"
$
$
Not available
Gravely 09122200
FTG, ORB 90° 7/16-20 - 1/2 BARB
$
$
Not available
Gravely 06900634
HOSE CLAMP, DBW 12MM
$3.49
$
Usually ships in 4-12 days
Gravely 06500729
NUT, LK-NYL-FLG M6-1.0 GR8.8 ZC120
$2.99
$
Usually ships in 4-12 days
