985910 - Gravely Pro-QXT Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Frame Parts Diagram

Pro-QXT Walk-Behind 2-Wheel Tractor

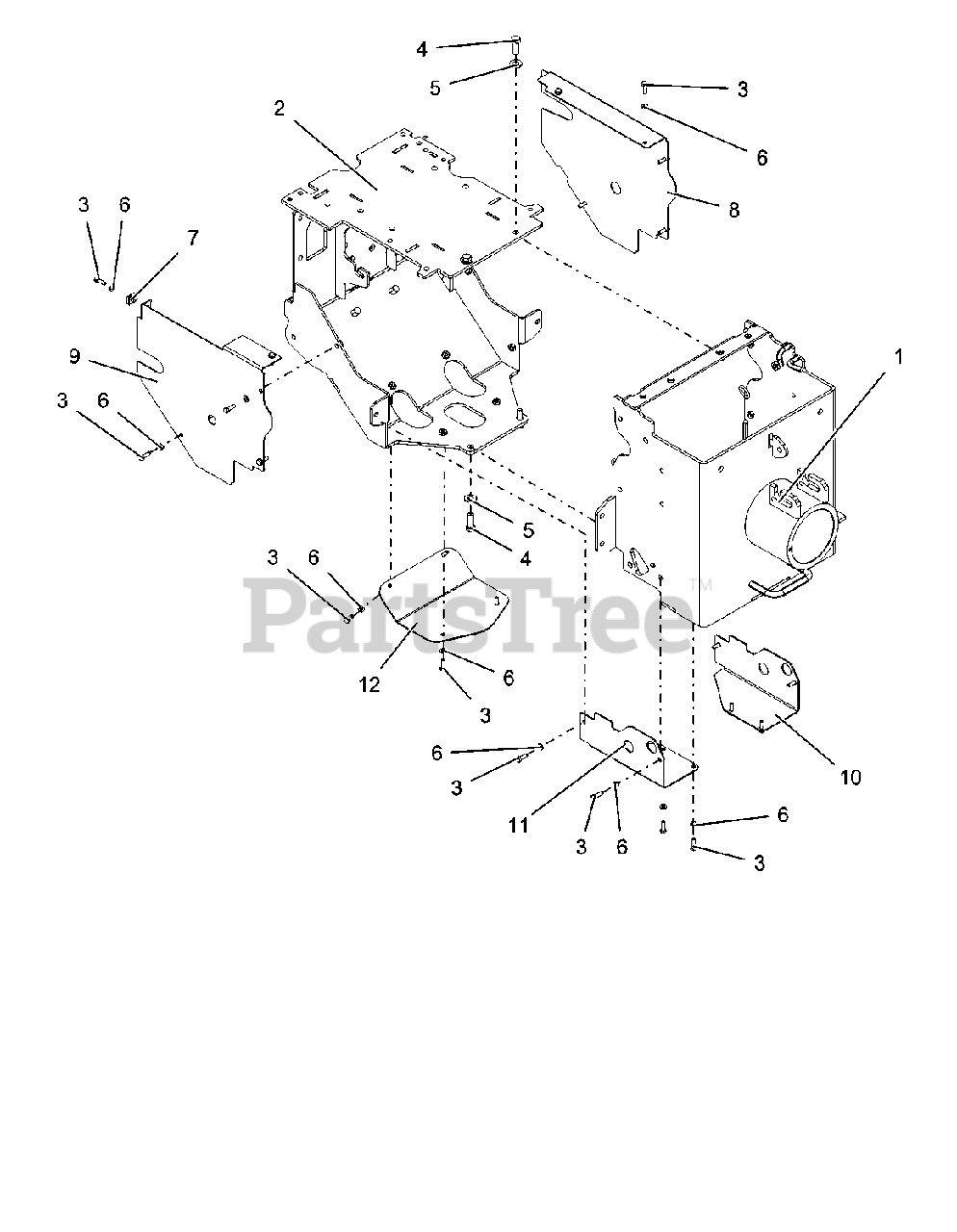

Frame Parts Diagram

  • Title

1

Gravely 09116053

WLDMT, FRONT HOUSING-RED

$901.99

$

Usually ships in 4-12 days

0

2

Gravely 09117753

WLDMT, FRAME BACK-RED

$

$

Not available

3

Gravely 05901610

BLT, HEX M6-1X20 GR8.8 ZC120

$

$

Not available

4

Gravely 05901625

BLT, HEX M10-1.5X30 GR8.8 ZC120

$2.49

$

Usually ships in 4-12 days

0

5

Gravely 06401005

WSHR, 3/8" SPRING DISC

$24.99

$

Usually ships in 4-12 days

0

6

Gravely 06401009

WSHR-LK .25X.062 REG YWZC

$0.99

$

In Stock, Qty 20+

0

7

Gravely 07001728

NUT, RTNR M6 X 1.0

$

$

Not available

8

Gravely 09116353

COVER, LH-RED

$

$

Not available

9

Gravely 09118353

COVER, RH-RED

$

$

Not available

10

Gravely 09119753

COVER, LH LOWER-RED

$24.99

$

Usually ships in 4-12 days

0

11

Gravely 09119853

COVER, RH LOWER-RED

$

$

Not available

12

Gravely 09126453

COVER, OIL-RED

$

$

Not available
