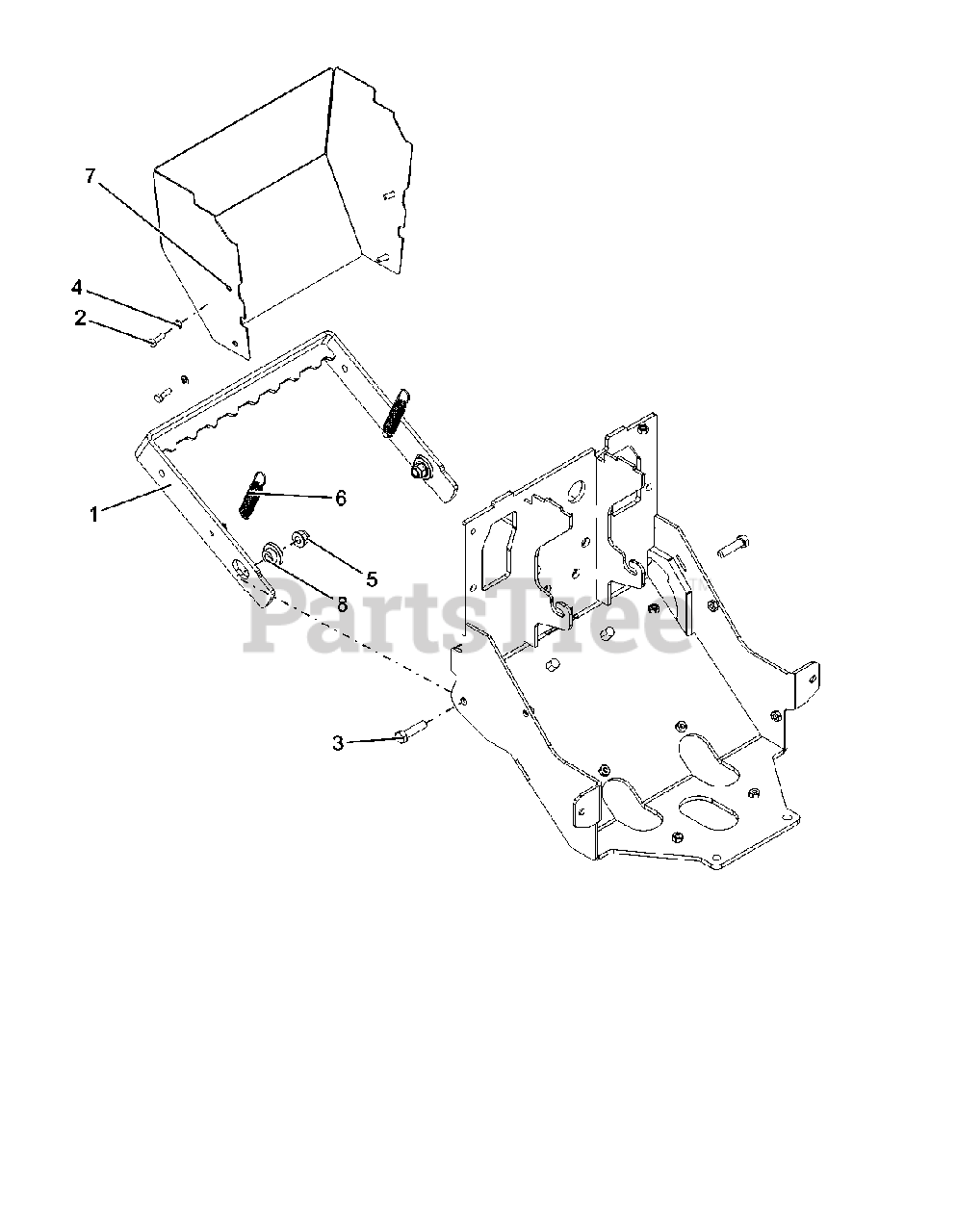

985910 - Gravely Pro-QXT Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Footstand Parts Diagram

Pro-QXT Walk-Behind 2-Wheel Tractor

Footstand Parts Diagram

  • Title
1

Gravely 09118253

WLDMT, STAND SUPPORT-RED

$49.99

$

Usually ships in 4-12 days

0

2

Gravely 05901610

BLT, HEX M6-1X20 GR8.8 ZC120

$

$

Not available

3

Gravely 05901616

BLT, HEX M10-1.5X40 GR8.8 ZC120

$3.49

$

Usually ships in 4-12 days

0

4

Gravely 06401009

WSHR-LK .25X.062 REG YWZC

$0.99

$

In Stock, Qty 20+

0

5

Gravely 06500731

NUT, LK-NYL-FLG M10-1.5 GR8.8 ZC120

$

$

Not available

6

Gravely 08300628

SPRG, EXTENSION .063 X .653 X 2.755

$6.99

$

Usually ships in 4-12 days

0

7

Gravely 09117553

COVER, STEERING-RED

$37.99

$

Usually ships in 4-12 days

0

8

Gravely 09119400

BSHG, STEP .413X.776X1.25X.413

$

$

Not available
