985910 - Gravely Pro-QXT Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Attachment Lock Parts Diagram

Pro-QXT Walk-Behind 2-Wheel Tractor

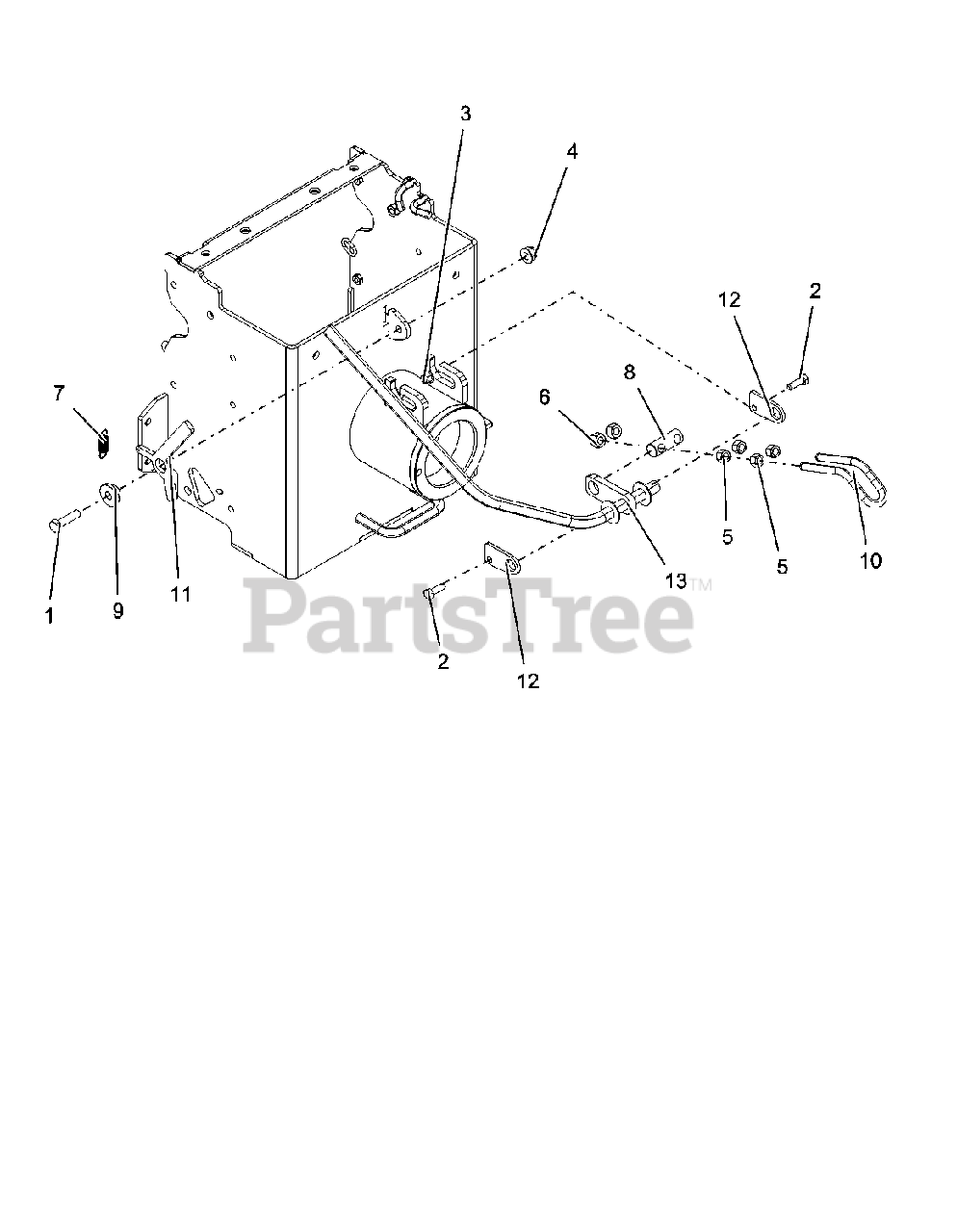

Attachment Lock Parts Diagram

  • Title

1

Gravely 05901616

BLT, HEX M10-1.5X40 GR8.8 ZC120

$3.49

$

Usually ships in 4-12 days

0

2

Gravely 05901630

BLT, HEX M8-1.25X25 GR8.8 ZC120

$2.49

$

Usually ships in 4-12 days

0

3

Gravely 06500725

NUT, LK-NYL-FLG M8-1.25 GR8.8 ZC120

$3.49

$

Usually ships in 4-12 days

0

4

Gravely 06500731

NUT, LK-NYL-FLG M10-1.5 GR8.8 ZC120

$

$

Not available

5

Gravely 06500733

NUT, HEX M10-1.5 A2CL70 SS

$2.99

$

Usually ships in 4-12 days

0

6

Gravely 06500734

NUT, LK-NYL M10-1.5 A2CL70 SS

$3.49

$

Usually ships in 4-12 days

0

7

Gravely 08339300

SG-TENS .041X.500X1.750

$5.99

$

In Stock, only 1 left!

0

8

Gravely 09118500

ROD, PIVOT

$22.99

$

Usually ships in 4-12 days

0

9

Gravely 09119400

BSHG, STEP .413X.776X1.25X.413

$

$

Not available

10

Gravely 09120600

LATCH, BOW

$

$

Not available

11

Gravely 09127051

LOCK, HANDLE (BLACK)

$16.99

$

Usually ships in 4-12 days

0

12

Gravely 09129651

PLATE, LOCK LEVER-BLACK

$

$

Not available

13

Gravely 09115651

WLDMT, LEVER ATTACHMENT-BLACK

$42.99

$

Usually ships in 4-12 days

0
