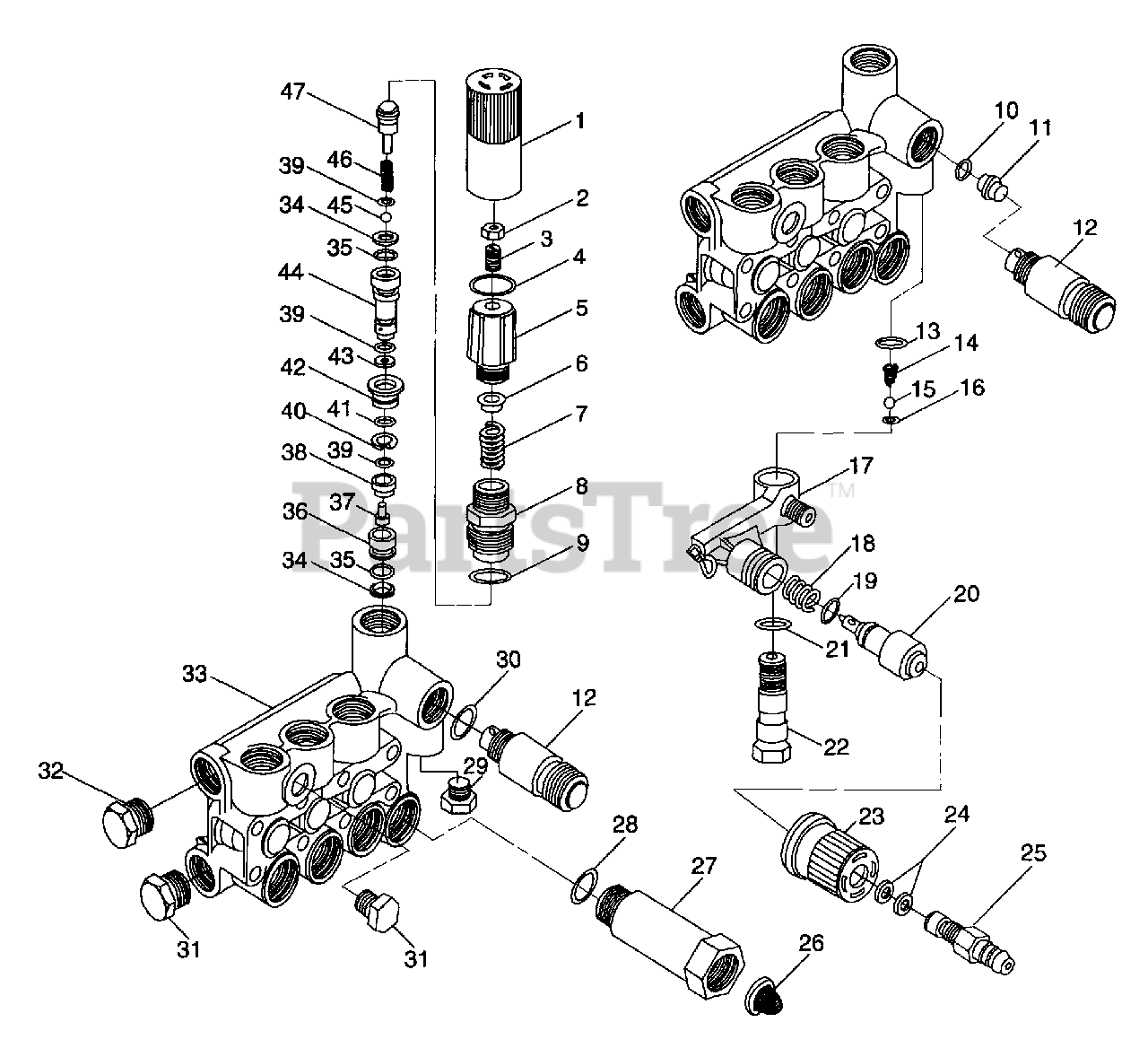

9858-1 - Generac CP 6,000 PSI Pressure Washer Pump #92293 Unloader And Service Kits Parts Diagram

CP 6,000 PSI Pressure Washer

Pump #92293 Unloader And Service Kits Parts Diagram

  • Title

Briggs & Stratton ~NSP

Complete Unloader

Note: Not Sold Separately

$

$

Currently unavailable

1

Briggs & Stratton 13492293P

Knob
(Superseded to 13492293PGS)

$30.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 13592293P

Nut
(Superseded to 13592293PGS)

$5.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 13692293P

Screw
(Superseded to 13692293PGS)

$4.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 13792293P

O-Ring
(Superseded to 13792293PGS)

$3.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 13892293P

Press. Regulator
(Superseded to 13892293PGS)

$44.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 13992293P

Seat
(Superseded to 13992293PGS)

$13.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 14092293P

Spring
(Superseded to 14092293PGS)

$15.99

$

Usually ships in 2-12 days

0

8

KIT 505 Bushing

Note: Not Sold Separately

$

$

Not available

9

KIT 505 O-Ring

Note: Not Sold Separately

$

$

Not available

10

KIT 505, 506 O-Ring

Note: Not Sold Separately

$

$

Not available

11

Briggs & Stratton 14292294P

Nozzle
(Superseded to 14292294PGS)

$91.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 14192293P

Fitting

$

$

Currently unavailable

13

KIT 506 O-Ring

Note: Not Sold Separately

$

$

Not available

14

KIT 506 Spring

Note: Not Sold Separately

$

$

Not available

15

KIT 506 Ball

Note: Not Sold Separately

$

$

Not available

16

KIT 505 O-Ring

Note: Not Sold Separately

$

$

Not available

17

Briggs & Stratton 14392293P

Body
(Superseded to 14392293PGS)

$17.99

$

Usually ships in 2-12 days

0

18

KIT 505 Spring

Note: Not Sold Separately

$

$

Not available

19

KIT 506 O-Ring

Note: Not Sold Separately

$

$

Not available

20

Briggs & Stratton 14592293P

Shutter
(Superseded to 14592293PGS)

$21.99

$

Usually ships in 2-12 days

0

21

KIT 506 O-Ring

Note: Not Sold Separately

$

$

Not available

22

KIT 506 Valve Seat

Note: Not Sold Separately

$

$

Not available

23

Briggs & Stratton 14692293P

Knob
(Superseded to 14692293PGS)

$44.99

$

Usually ships in 2-12 days

0

24

KIT 506 O-Ring

Note: Not Sold Separately

$

$

Not available

25

Briggs & Stratton 50792293P

Barbed Fitting
(Superseded to 50792293PGS)

$19.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 14992293P

Filter Washer
(Superseded to 14992293PGS)

$3.49

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 14892293P

Inlet Fitting
(Superseded to 14892293PGS)

$60.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 14792293P

O-Ring

$

$

Not available

29

Fitting

Note: Part Not Available

$

$

Not available

30

KIT 506 O-Ring

Note: Not Sold Separately

$

$

Not available

31

Briggs & Stratton 10492293P

Cap
(Superseded to 10492293PGS)

$13.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 10192293P

Cap
(Superseded to 10192293PGS)

$34.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 15192293P

Brass Manifold
(Superseded to 15192293PGS)

$532.99

$

Usually ships in 2-12 days

0

34

KIT 505 Anti Ext.Ring

Note: Not Sold Separately

$

$

Not available

35

KIT 505, 506 O-Ring

Note: Not Sold Separately

$

$

Not available

36

KIT 505 Valve Seat

Note: Not Sold Separately

$

$

Not available

37

KIT 505 Screw

Note: Not Sold Separately

$

$

Not available

38

KIT 505 Valve

Note: Not Sold Separately

$

$

Not available

39

KIT 505 O-Ring

Note: Not Sold Separately

$

$

Not available

40

KIT 505 Anti Ext.Ring

Note: Not Sold Separately

$

$

Not available

41

KIT 505 O-Ring

Note: Not Sold Separately

$

$

Not available

42

KIT 505 Valve Guide

Note: Not Sold Separately

$

$

Not available

43

KIT 505 Anti Ext.Ring

Note: Not Sold Separately

$

$

Not available

44

KIT 505 Control Piston

Note: Not Sold Separately

$

$

Not available

45

KIT 505 Ball

Note: Not Sold Separately

$

$

Not available

46

KIT 505 Spring

Note: Not Sold Separately

$

$

Not available

47

KIT 505 Stopper

Note: Not Sold Separately

$

$

Not available

Briggs & Stratton 14392293P

Bypass Tube
(Superseded to 14392293PGS)

Note: (Not Shown)

$17.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 50592293P

Service Kit
(Superseded to 50592293PGS)

Note: Including item No.(s) 8, 9, 48, 47, 40, 46, 35, 36, 45, 44, 43, 42, 41, 39, 38, 37, 10

$182.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 50692293P

Service Kit

Note: Including item No.(s) 36, 30, 10, 13, 14, 15, 16, 18, 19, 24

$

$

Currently unavailable
