9858-1 - Generac CP 6,000 PSI Pressure Washer Pressure Washer & Cradle Parts Diagram

CP 6,000 PSI Pressure Washer

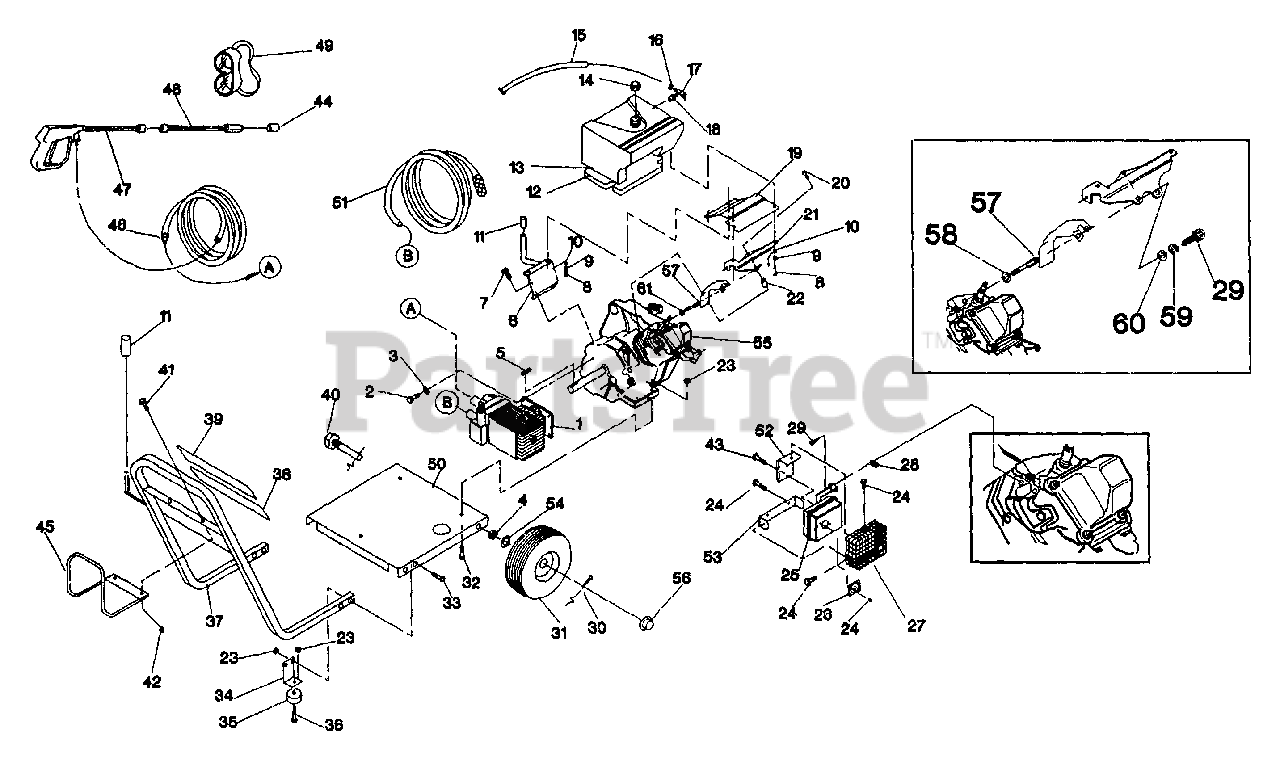

Pressure Washer & Cradle Parts Diagram

  • Title

1

Briggs & Stratton 92293

Pump -- 3 GPM at 2000 PSI
(Superseded to 92293GS)

$502.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 22336

5/16"-24 x 3/4" Capscrew

$

$

Not available

3

Briggs & Stratton 92479

5/16" Conical Lock Washer
(Superseded to 92479GS)

$3.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 94222Q

5/8"-18 Jam Nut
(Superseded to 94222QGS)

$3.99

$

In Stock, only 2 left!

0

5

Briggs & Stratton 89241

3/16" x 1/4" Key
(Superseded to 89241GS)

$3.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 92416

Fuel Tank Bracket

$

$

Currently unavailable

7

Briggs & Stratton 83512

M8 x 15mm Taptite Screw
(Superseded to 83512GS)

$6.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 26983

1/4"-20 x 3/4" Capscrew

$

$

Not available

9

Briggs & Stratton 22097

1/4" Lock Washer
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

10

22473

1/4" Flat Washer

$

$

Not available

11

Briggs & Stratton 92528

1/4" x 1" Vinyl Cap

$

$

Currently unavailable

12

Briggs & Stratton 90562

Fuel Tank Insulation

$

$

Not available

13

Briggs & Stratton 90974

4 Liter Fuel Tank
(Superseded to 90974GS)

$58.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 90878

Fuel Tank Cap
(Superseded to 846987)

$21.99

$

In Stock, only 4 left!

0

15

Briggs & Stratton 82580E

3/16" x 12-1/4" Fuel Line

$

$

Currently unavailable

16

Briggs & Stratton 48031G

Hose Clamp
(Superseded to 48031GGS)

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 80270

Fuel Shut-off Valve
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

18

Briggs & Stratton 78299

Fuel Valve Bushing
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

19

Briggs & Stratton 94659

Fuel Tank Shield
(Superseded to 691685)

$3.99

$

In Stock, Qty 5

0

20

Briggs & Stratton 91225

M8 x 35mm Screw

$

$

Not available

21

Briggs & Stratton 94547

Fuel Tank Bracket
(Superseded to 690912)

$3.99

$

In Stock, Qty 19

0

22

Briggs & Stratton 91224

3/8" I.D. Spacer (20mm)

$

$

Currently unavailable

23

Briggs & Stratton 52858

M8 Hex Locking Nut
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

24

Briggs & Stratton 90299

M5 x 10mm Extrudite Screw

$

$

Not available

25

Briggs & Stratton 88688

Muffler Assembly
(Superseded to 195002GS)

$86.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 83083

Spark Arrestor Screen
(Superseded to 83083GS)

$9.49

$

In Stock, only 2 left!

0

27

Briggs & Stratton 89712

Muffler Guard

$

$

Currently unavailable

28

Briggs & Stratton 80314

Exhaust Gasket
(Superseded to 80314GS)

$9.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 40976

M8 x 20mm Capscrew

$

$

Not available

30

Briggs & Stratton 22268

3/32 x 1" Cotter Pin
(Superseded to 22268GS)

$3.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 88521

10" dia. Wheel
(Superseded to 88521GS)

$93.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 39414

M8 x 35mm Capscrew
(Superseded to 39414GS)

$2.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 57821

M8 x 40mm Capscrew

$

$

Not available

34

Briggs & Stratton 92339

Support Leg
(Superseded to 92339GS)

$6.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 87841

Vibration Mount
(Superseded to 87841GS)

$3.99

$

In Stock, only 2 left!

0

36

Briggs & Stratton 39253

M8 x 20mm Capscrew
(Superseded to 39253GS)

$3.49

$

In Stock, Qty 6

0

37

Briggs & Stratton 93512

Guide Handle

$3.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 92629

Decal - Starting Instructions

$

$

Currently unavailable

39

Briggs & Stratton 92415

Decal - 6000CP

$

$

Currently unavailable

40

Briggs & Stratton 93728A

Axle Stud
(Superseded to 93728AGS)

$5.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 47411

M6 x 16mm Capscrew

$

$

Not available

42

Briggs & Stratton 52857

M6 Flange Hex Nut
(Superseded to 52857GS)

$3.49

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 56893

Screw
(Superseded to 56893GS)

$3.49

$

In Stock, only 1 left!

0

44

Briggs & Stratton 92661

Replacement Nozzle
(Superseded to 92661GS)

Note: Part number indicates replacement part only. The nozzle for your pressure washer should come attached to wand

$9.49

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 94286

Hose Hanger
(Superseded to 697935)

$3.99

$

In Stock, only 1 left!

0

46

Briggs & Stratton 89634

High Pressure Hose (50 ft.)

$

$

Currently unavailable

47

Briggs & Stratton 91628

Spray Gun

$

$

Not available

48

Briggs & Stratton 91031

Wand

$

$

Not available

49

Briggs & Stratton 87815

Safety Goggles
(Superseded to 87815GS)

$12.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 94076

Mounting Base
(Superseded to 94076GS)

$82.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 92550

Plastic Chemical Injector Hose and Filter
(Superseded to 92550GS)

$67.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 92535

Muffler Support Bracket

$

$

Currently unavailable

53

Briggs & Stratton 90300

Muffler Support Bracket
(Superseded to 90300GS)

$11.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 49808

M12 Flat Washer
(Superseded to 49808GS)

$3.99

$

In Stock, only 2 left!

0

55

Briggs & Stratton 94494

Generac Engine

$6.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 75402

1/2" dia. Push Nut
(Superseded to 194062GS)

$4.49

$

In Stock, only 2 left!

0

57

Briggs & Stratton 91285

Tank Mount Head Bolt

$

$

Not available

58

Briggs & Stratton 92572

Flat Washer

$

$

Currently unavailable

59

Briggs & Stratton 22129

M8 Lock Washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

60

Briggs & Stratton 49810

M8 Flat Washer
(Superseded to 7049810YP)

$128.99

$

Usually ships in 2-12 days

0

61

UNKNOWN

$

$

Not available
