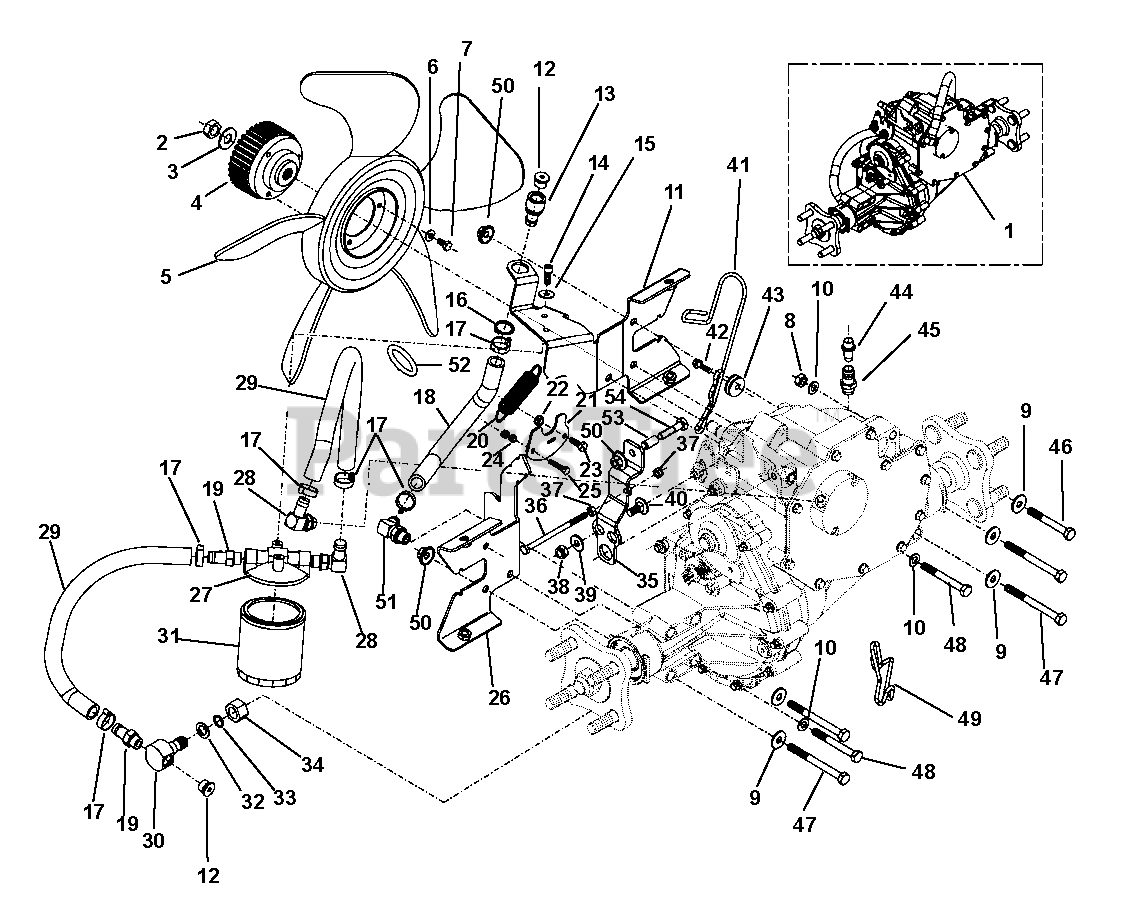

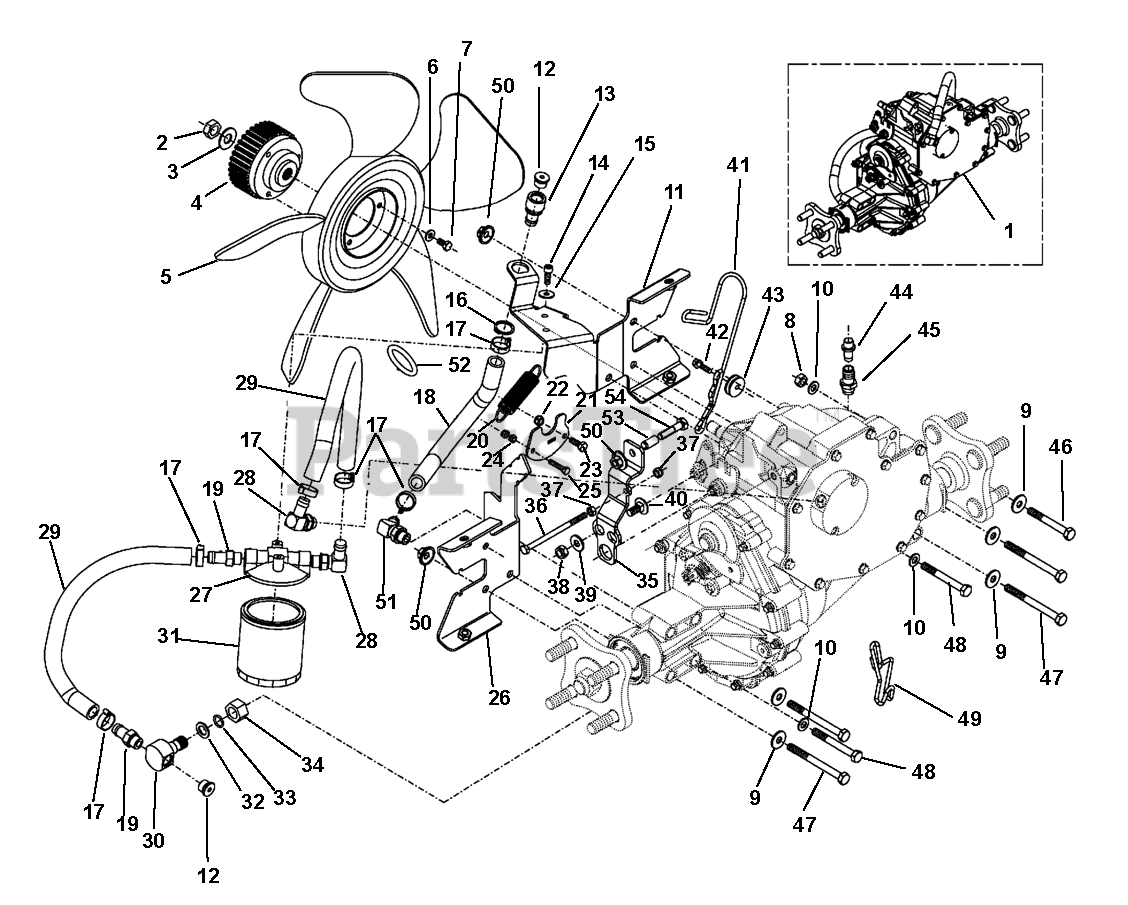

985403 - Gravely Rapid M Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Hydrostatic Pumps Parts Diagram

Rapid M Walk-Behind 2-Wheel Tractor

Hydrostatic Pumps Parts Diagram

  • Title

1

Gravely 08604100

Hydrostat

$

$

Not available

2

Gravely 08604700

Special Nut

$

$

Not available

3

Gravely 08604600

Washer

$

$

Not available

4

Gravely 08604200

Pulley, Hydro
(Superseded to 08694000)

$

$

Not available

5

Gravely 08604400

Fan
(Superseded to 21543737)

$19.99

$

Usually ships in 4-12 days

0

6

Gravely 08609900

Spacer, 1.03 x 1.38 x .184

$

$

Not available

7

Gravely 08614700

Bolt, Hex D933 M6 x 12

$

$

Not available

8

Gravely 08621300

Nut, Hex D934 M8
(Superseded to 08605700)

$

$

Not available

9

Gravely 08616300

Washer, M8

$

$

Not available

10

Gravely 08632300

Washer, 31181 M8
(Superseded to 08605800)

$

$

Not available

11

Gravely 08604500

Support

$

$

Not available

12

Gravely 08613700

Plug, Steel (with Seal)

Note: (with Seal)

$6.99

$

Usually ships in 4-12 days

0

13

Gravely 08604800

Support, Tube

$

$

Not available

14

Gravely 08605000

Screw, UNC 1/4" x 5/8"
(Superseded to 00845700)

$

$

Not available

15

Gravely 08631900

Washer, M6

$

$

Not available

16

Gravely 08605100

Circlip, D471 20 1,20

$

$

Not available

17

Gravely 08605200

Hose Clamp

$

$

Not available

18

Gravely 08605300

Pipe

$

$

Not available

19

Gravely 08605400

Fitting

$

$

Not available

20

Gravely 08605500

Tension Spring 2.0/17.5 x 87

$30.99

$

Usually ships in 4-12 days

0

21

Gravely 08605600

Lever

$

$

Not available

22

Gravely 08625000

Nut, Lock D985 M6

$

$

Not available

23

Gravely 08606000

Bolt, Hex D933 M6 x 18

$

$

Not available

24

Gravely 08614600

Nut, Lock

$3.99

$

Usually ships in 4-12 days

0

25

Gravely 08606100

Bolt, Hex D933 M5 x 25

$

$

Not available

26

Gravely 08606200

Support

$

$

Not available

27

Gravely 08606300

Filter Case

$

$

Not available

28

Gravely 08606400

Fitting

$

$

Not available

29

Gravely 08606500

Pipe

$

$

Not available

30

Gravely 08606600

Connection, Threaded

$55.99

$

Usually ships in 4-12 days

0

31

Gravely 08690600

Filter

$

$

Not available

32

Gravely 08606800

Supporting Ring

$

$

Not available

33

Gravely 08613500

O Ring

$

$

Not available

34

Gravely 08606900

Nut, Hex

$

$

Not available

35

Gravely 00659300

Lever, Forward

$

$

Not available

36

Gravely 08607500

Bolt, Hex D931 M6 x 100

$

$

Not available

37

Gravely 08620800

Nut, Hex D934 M6

$

$

Not available

38

Gravely 08622000

Nut, Lock D985 M8

$

$

Not available

39

Gravely 08607700

Washer, BN737 8,4 x 20 x 2

$

$

Not available

40

Gravely 08607800

Screw, Truss Head D603 M8 x 20

$

$

Not available

41

Gravely 08607900

Spring Clip

$

$

Not available

42

Gravely 08608000

Screw, DIN7500/D M5 x 20

$

$

Not available

43

Gravely 08608100

Support

$

$

Not available

44

Gravely 08608200

Breather

$

$

Not available

45

Gravely 08608300

Fitting
(Superseded to 07026300)

$23.99

$

In Stock, only 2 left!

0

46

Gravely 08605900

Bolt, Hex D931 M8 x 65

$

$

Not available

47

Gravely 08608400

Bolt, Hex D931 M8 x 90

$

$

Not available

48

Gravely 03746800

Nut, Lock D985 M6

$

$

Not available

49

Gravely 08608600

Spring Clip

$

$

Not available

50

Gravely 08627100

Nut, Lock M8

$

$

Not available

51

Gravely 03746600

Fitting, 60-Degree

$

$

Not available

52

Gravely 00658000

Ring

$

$

Not available

53

Gravely 00695700

Pin, Roll

$

$

Not available

54

Gravely 00866500

Bolt, Hex D931 M8 x 35

$

$

Not available
