985403 - Gravely Rapid M Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Handlebar (1) Parts Diagram

Rapid M Walk-Behind 2-Wheel Tractor

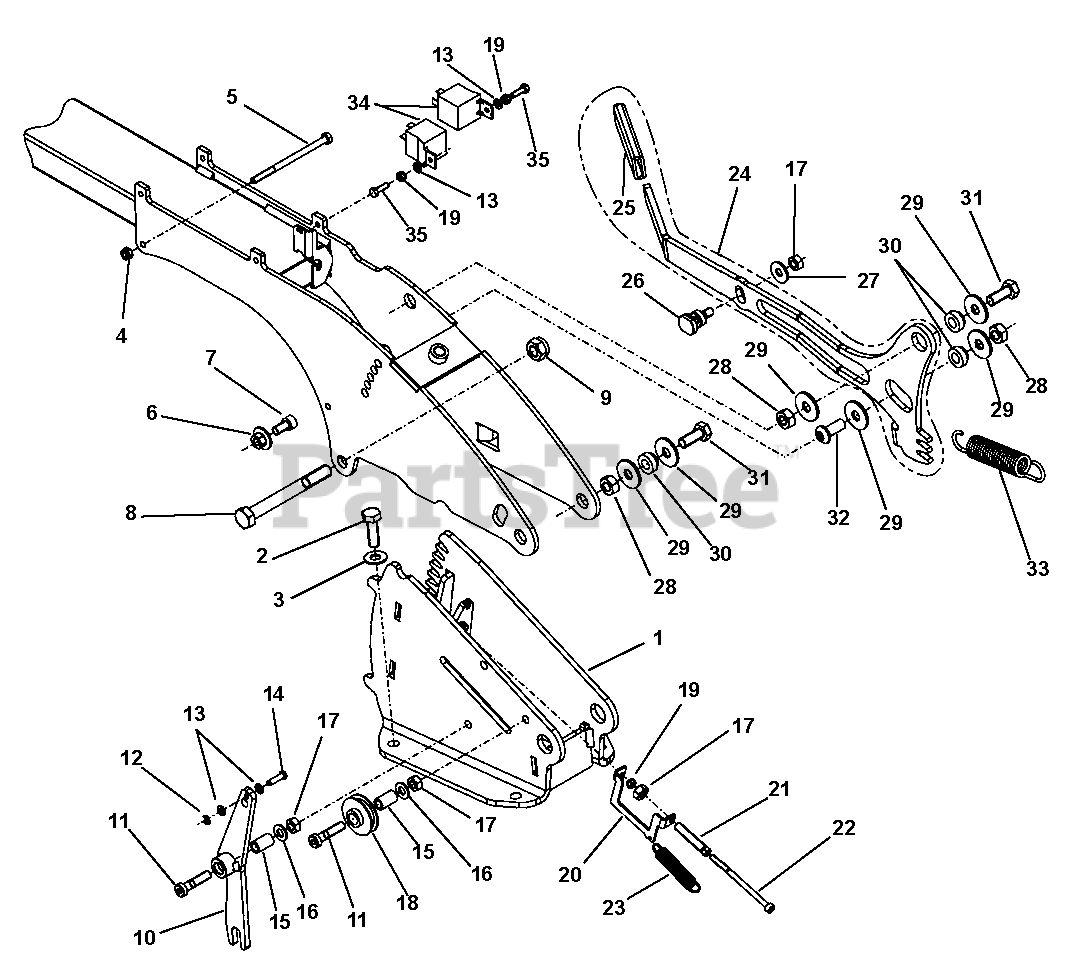

Handlebar (1) Parts Diagram

  • Title

1

Gravely 03715400

Support, Handlebar

$

$

Not available

2

Gravely 03715500

Bolt, Hex D933 M10 x 30

$

$

Not available

3

Gravely 08607600

Washer

$

$

Not available

4

Gravely 08625000

Nut, Lock D985 M6

$

$

Not available

5

Gravely 08607500

Bolt, Hex D931 M6 x 100

$

$

Not available

6

Gravely 08627100

Nut, Lock M8

$

$

Not available

7

Gravely 08644000

Screw D912 M8 x 16

$

$

Not available

8

Gravely 08633300

Bolt, Hex D931 M12 x 110

$

$

Not available

9

Gravely 08671100

Nut, Lock M12

$

$

Not available

10

Gravely 03715600

Lever, Advance

$

$

Not available

11

Gravely 03747000

Bolt, Cylindric D7984 M4 x 35

$

$

Not available

12

Gravely 08694600

Washer, Lock

$

$

Not available

13

Gravely 08614200

Washer, D125 5.3 x 10 x 1

$

$

Not available

14

Gravely 08681900

Bolt

$

$

Not available

15

Gravely 03715700

Bushing

$

$

Not available

16

Gravely 03715800

Washer D125 M8

$

$

Not available

17

Gravely 08605700

Nut, Hex D934 M8

$

$

Not available

18

Gravely 08637200

Roller

$

$

Not available

19

Gravely 08614600

Nut, Lock M5

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 03714800

Angle

$

$

Not available

21

Gravely 03714700

Screw, Hollow

$

$

Not available

22

Gravely 03714900

Bolt, Cylindric D912 M5 x 80

$

$

Not available

23

Gravely 03715000

Spring, Tension

$

$

Not available

24

Gravely 03715900

Lever

$

$

Not available

25

Gravely 03747100

Cover, Grip

$

$

Not available

26

Gravely 08633000

Bolt

$

$

Not available

27

Gravely 08616300

Washer, M8

$

$

Not available

28

Gravely 08616100

Nut, Lock D934 M10

$

$

Not available

29

Gravely 08633100

Washer, D9021 10,5 x 30 x 2,5

$

$

Not available

30

Gravely 08633200

Bearing Bushing

$

$

Not available

31

Gravely 08623700

Bolt, Hex D933 M10 x 25
(Superseded to 08683900)

$

$

Not available

32

Gravely 08643300

Screw ISO 7380 M10 x 25

$

$

Not available

33

Gravely 08677100

Spring, Tension, 3.2/19.3 x 122

$

$

Not available

34

Gravely 08629000

Relay

$71.99

$

Usually ships in 4-12 days

0

35

Gravely 08632500

Bolt, Hex D933 M5 x 16

$

$

Not available
