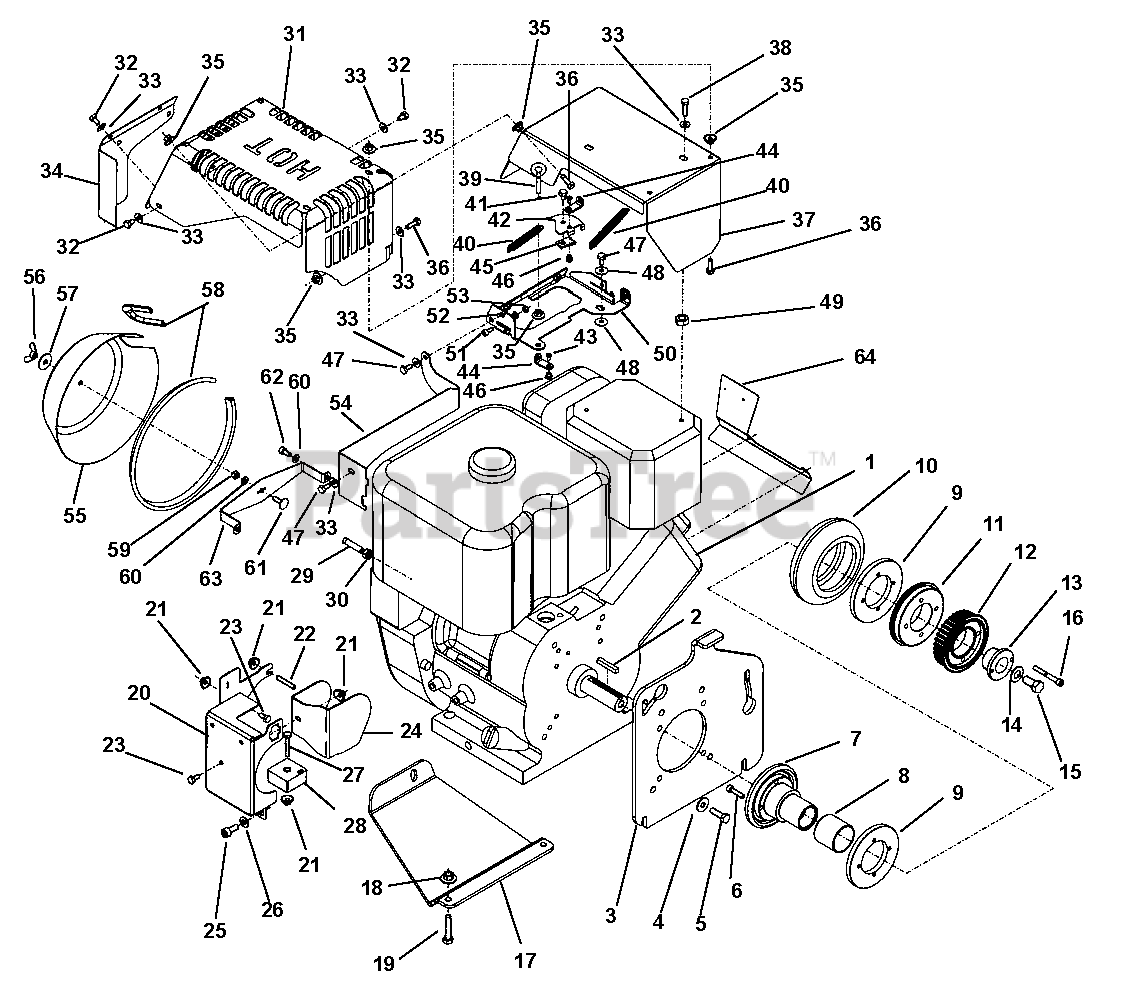

985403 - Gravely Rapid M Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Engine Parts Diagram

Rapid M Walk-Behind 2-Wheel Tractor

Engine Parts Diagram

  • Title

1

Gravely 03711100

Engine 13 HP Vanguard

$

$

Not available

2

Gravely 03712800

Key

$

$

Not available

3

Gravely 08626100

Plate, Retaining

$

$

Not available

4

Gravely 08616300

Washer M8

$

$

Not available

5

Gravely 08626700

Bolt, Hex 5/16 x 1 UNF

$

$

Not available

6

Gravely 03712600

Bolt, Cylindrical D915 M6 x 25

$

$

Not available

7

Gravely 03711900

Shaft

$

$

Not available

8

Gravely 03712400

Sleeve, Bearing

$

$

Not available

9

Gravely 03712100

Jam Piece

$

$

Not available

10

Gravely 03712500

Tire

$

$

Not available

11

Gravely 03712000

Jam Piece

$

$

Not available

12

Gravely 03712200

Pulley

$

$

Not available

13

Gravely 03712300

Connection

$

$

Not available

14

Gravely 08607800

Washer

$

$

Not available

15

Gravely 03712900

Bolt, Hex D922 UNF 7/16 x 7/8

$

$

Not available

16

Gravely 03712700

Bolt, Cylindric D915 M6 x 50

$

$

Not available

17

Gravely 08625700

Guard, Sheet Metal

$

$

Not available

18

Gravely 08627100

Nut, Lock M8

$

$

Not available

19

Gravely 03713000

Bolt, Hex D933 M8 x 40

$

$

Not available

20

Gravely 03711400

Support

$

$

Not available

21

Gravely 03711600

Nut, Flanged M6

$

$

Not available

22

Gravely 03711300

Stud, Threaded D913 M6 x 35

$

$

Not available

23

Gravely 08614700

Bolt, Hex D933 M6 x 12

$

$

Not available

24

Gravely 03711700

Cover

$

$

Not available

25

Gravely 08637300

Screw D912 M8 x 18

$

$

Not available

26

Gravely 08605800

Washer, M8

$

$

Not available

27

Gravely 08622900

Bolt, Hex

$

$

Not available

28

Gravely 03711500

Regulator, AC

$

$

Not available

29

Gravely 03711200

Bolt, Threaded M8

$

$

Not available

30

Gravely 08622000

Nut, Lock D985 M8

$

$

Not available

31

Gravely 03713800

Shield, Heat

$

$

Not available

32

Gravely 03714100

Bolt, Hex D933 M6 x 10

$

$

Not available

33

Gravely 08604900

Washer M6

$

$

Not available

34

Gravely 03714400

Sheetmetal, Winter

$

$

Not available

35

Gravely 03711600

Nut, Flanged M6

$

$

Not available

36

Gravely 08606000

Bolt, Hex D9ss M6 x 18

$

$

Not available

37

Gravely 03713900

Shield, Heat

$

$

Not available

38

Gravely 03714000

Bolt, Hex D933 M6 x 22

$

$

Not available

39

Gravely 03713200

Screw, Ring M6

$

$

Not available

40

Gravely 08626200

Spring, Tension

$

$

Not available

41

Gravely 03713500

Screw, Sheet Metal M6.3 x 13

$

$

Not available

42

Gravely 03713100

Support

$95.99

$

Usually ships in 4-12 days

0

43

Gravely 03713700

Screw, Oval Head M4 x 8

$

$

Not available

44

Gravely 08669300

Shackle

$

$

Not available

45

Gravely 03713400

Nut, Speed

$

$

Not available

46

Gravely 03713600

Support

$

$

Not available

47

Gravely 08614700

Bolt, Hex D933 M6 x 12

$

$

Not available

48

Gravely 08631900

Washer M6

$

$

Not available

49

Gravely 08616100

Nut, Lock D934 M10

$

$

Not available

50

Gravely 03713100

Support

$95.99

$

Usually ships in 4-12 days

0

51

Gravely 08625300

Screw D912 M5 x 12

$

$

Not available

52

Gravely 08634300

Washer M5

$

$

Not available

53

Gravely 08625800

Nut, Hex D934 M5

$

$

Not available

54

Gravely 03714500

Sheetmetal, Winter

$

$

Not available

55

Gravely 08668100

Bonnet

$

$

Not available

56

Gravely 08620200

Nut, Wing M6

$

$

Not available

57

Gravely 08620300

Washer 7 x 25 x 1.8

$

$

Not available

58

Gravely 08668200

878160 Edge Protection N802 6.5 x 8

$

$

Not available

59

Gravely 08608900

Nut, Hex D934 M6

$

$

Not available

60

Gravely 08620600

Washer M6

$

$

Not available

61

Gravely 08620900

Screw M6 x 20

$

$

Not available

62

Gravely 08668400

Screw D912 M6 x 12

$3.99

$

Usually ships in 4-12 days

0

63

Gravely 08668500

Bracket

$

$

Not available

64

Gravely 03746900

Sheetmetal, Winter

$

$

Not available
