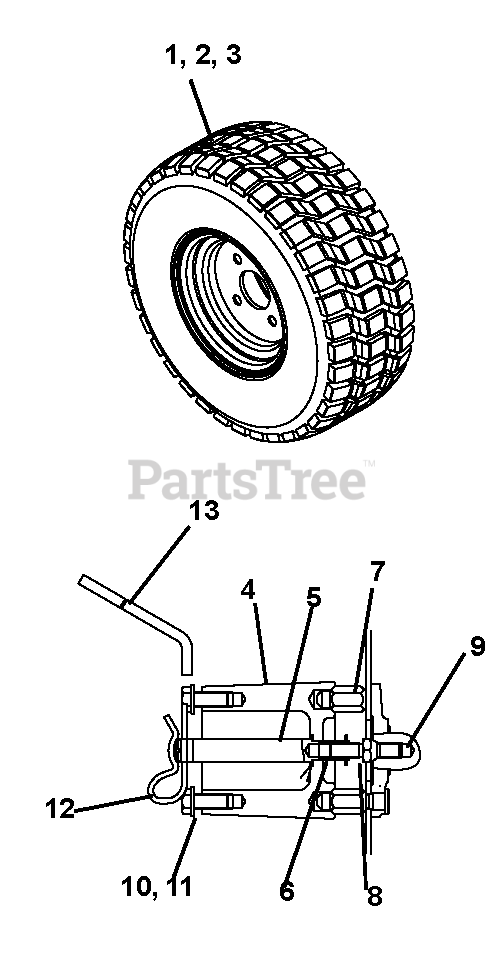

985402 - Gravely Rapid U Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Tires/Wheel Assembly Parts Diagram

Rapid U Walk-Behind 2-Wheel Tractor

Tires/Wheel Assembly Parts Diagram

  • Title

1

Gravely 00686200

Disc Wheel

$

$

Not available

2

Gravely 00686300

Tyre

$312.99

$

Usually ships in 4-12 days

0

3

Gravely 00686400

Tyre Tube

$

$

Not available

4

Gravely 00687300

Flange, Driving

$322.99

$

Usually ships in 4-12 days

0

5

Gravely 00687600

Nut

$

$

Not available

6

Gravely 00687700

Washer, Spring

$

$

Not available

7

Gravely 00688500

Dowel, Centralize

$73.99

$

Usually ships in 4-12 days

0

8

Gravely 00687800

Circlip

$

$

Not available

9

Gravely 00688200

Pin, Lock

$

$

Not available

10

Gravely 00688000

Bolt, Hex

$7.49

$

Usually ships in 4-12 days

0

11

Gravely 00688100

Washer

$

$

Not available

12

Gravely 00688700

Pin, Detent

$

$

Not available

13

Gravely 00688800

Key

$

$

Not available
