985402 - Gravely Rapid U Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) P.T.O. Case Parts Diagram

Rapid U Walk-Behind 2-Wheel Tractor

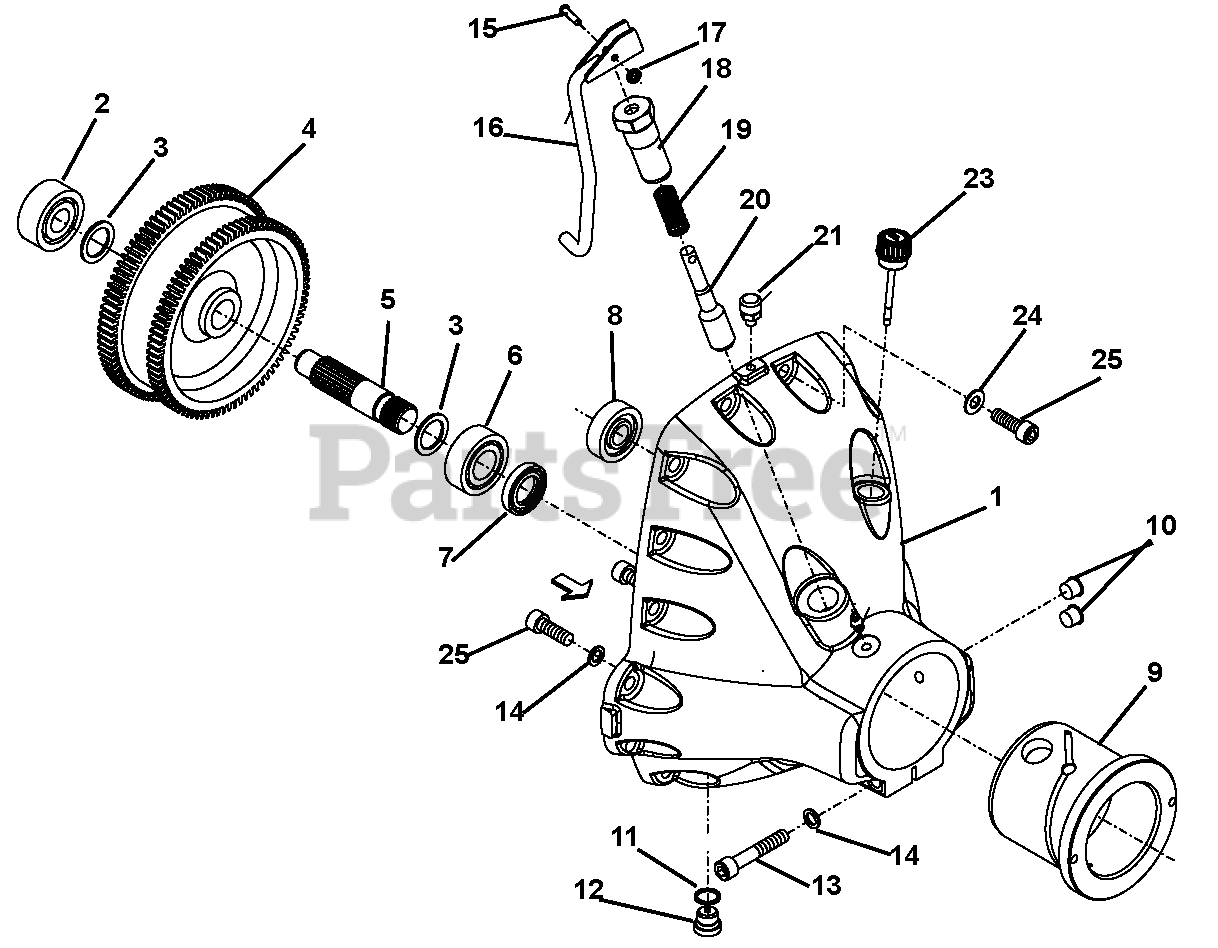

P.T.O. Case Parts Diagram

  • Title

1

Gravely 08646900

P.T.O, Case

$

$

Not available

2

Gravely 08647000

Bearing, Ball NJ 2304E

$

$

Not available

3

Gravely 08647100

Washer, D988 25 x 35 x 2

$

$

Not available

4

Gravely 08647200

Pinion, Double Z=83/88

$

$

Not available

5

Gravely 08647300

P.T.O. Power

$

$

Not available

6

Gravely 08647400

Bearing, Ball 4205B.TVH

$

$

Not available

7

Gravely 08647500

Seal, Oil D3760 25 x 42 x 7 AS

$

$

Not available

8

Gravely 08662900

Bearing, Ball NJ 303E

$

$

Not available

9

Gravely 08647600

Bushing

$

$

Not available

10

Gravely 08643000

Cap

$

$

Not available

11

Gravely 08647800

Ring, Joint D7603A 16 x 20 CU

$

$

Not available

12

Gravely 08647900

Drain, Plug D908 Metric 16 x 1.5MG

$

$

Not available

13

Gravely 08648000

Screw, D912 M10 x 60

$

$

Not available

14

Gravely 08643400

Washer, FORM Z 10.2/16.1 x 1.6

$

$

Not available

15

Gravely 08648100

Pin, Lock D1444A 5 x 25

$

$

Not available

16

Gravely 08648200

Lever

$

$

Not available

17

Gravely 08648300

Circlip, BQ-DL5

$

$

Not available

18

Gravely 00682300

Guide Tube

$

$

Not available

19

Gravely 08648500

Spring, Pressure 1.6/15.1 x 60

$

$

Not available

20

Gravely 08693400

Bar, Lock

$

$

Not available

21

Gravely 08648700

Filter, Breather

$

$

Not available

22

Gravely 08648800

Lubricator, D71412A M8 x 1

$

$

Not available

23

Gravely 08648900

Oil Gauge with Gasket

$

$

Not available

24

Gravely 08642500

Washer, Form Steel 10.2/20.25 x 1.6

$

$

Not available

25

Gravely 08649000

Screw, D912 M10 x 30

$

$

Not available
