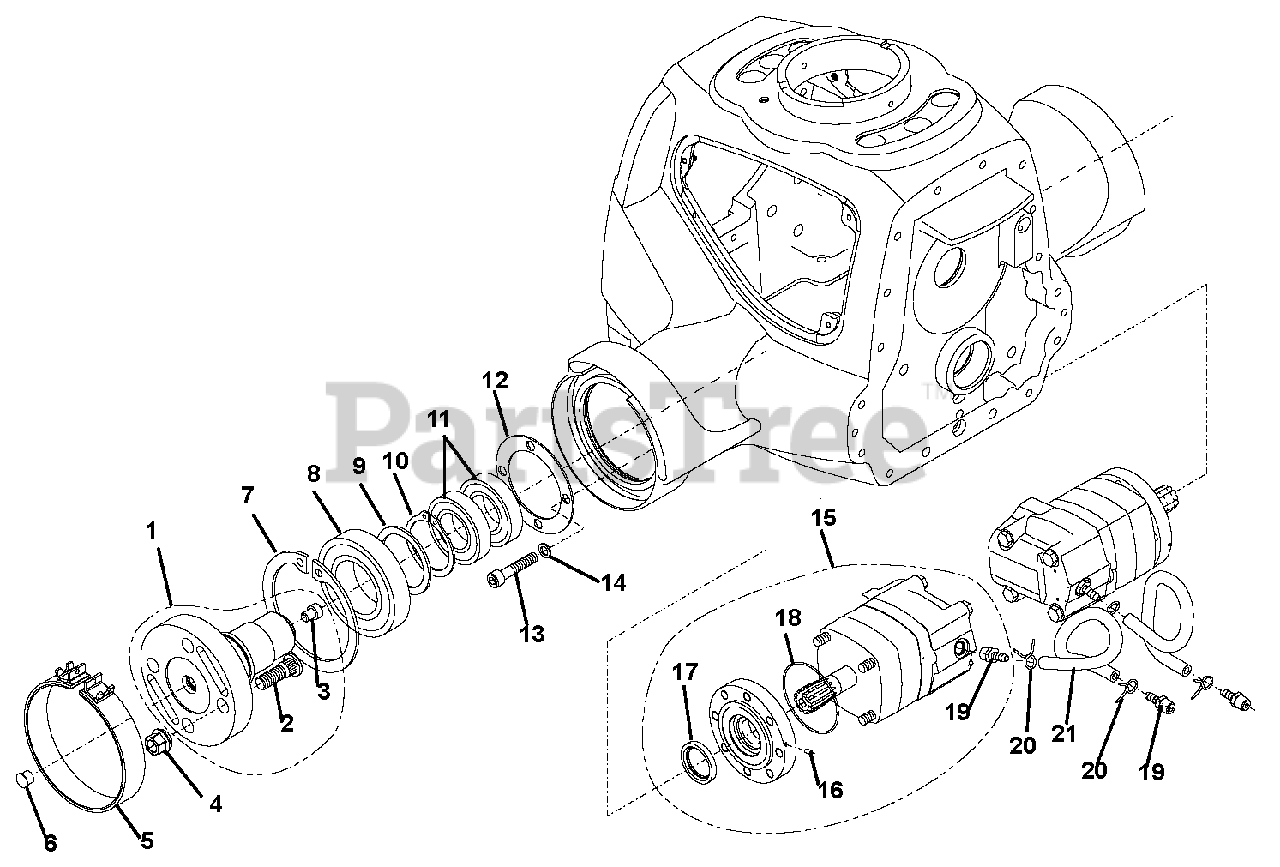

985402 - Gravely Rapid U Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Housing (3) Parts Diagram

Rapid U Walk-Behind 2-Wheel Tractor

Housing (3) Parts Diagram

  • Title

1

Gravely 00682000

Flange Wheel CPL (Includes 2 and 3)

Note: (Includes 2 and 3)

$

$

Not available

2

Gravely 08606700

Filter

$

$

Not available

3

Gravely 08645200

Spigot

$

$

Not available

4

Gravely 08609300

Nut, M14 x 1.5

$

$

Not available

5

Gravely 00682100

Brake Band

$

$

Not available

6

Gravely 08645300

Plug, N559 TL-4-133

$

$

Not available

7

Gravely 08645400

Circlip, D472 110 4.00

$

$

Not available

8

Gravely 08645500

Bearing, Ball 6212 2RS

$

$

Not available

9

Gravely 08645600

Washer, D988 60 x 75 x 3

$

$

Not available

10

Gravely 08645700

Circlip, D471 60 2.00

$

$

Not available

11

Gravely 08645800

Bearing, Ball 6009 2RS

$

$

Not available

12

Gravely 08645900

Washer

$

$

Not available

13

Gravely 08646000

Screw, D912 M10 x 50

$

$

Not available

14

Gravely 08643400

Washer, FORM Z 10.2/16.1 x 1.6

$

$

Not available

15

Gravely 00682200

Motor, Hydraulic (Includes 16 - 19)

Note: (Includes 16 - 19)

$

$

Not available

16

Gravely 08646300

Pin, Threaded D914 M4 x 10

$

$

Not available

17

Gravely 08646400

Seal, Oil 32 x 45 x 6

$

$

Not available

18

Gravely 08646500

O-Ring, 75.95 x 1.78

$

$

Not available

19

Gravely 08646600

Connection, 1/4" 8 x 19

$

$

Not available

20

Gravely 08646700

Hose, Clamp

$

$

Not available

21

Gravely 08646800

Pipe

$

$

Not available
