985402 - Gravely Rapid U Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Housing (1) Parts Diagram

Rapid U Walk-Behind 2-Wheel Tractor

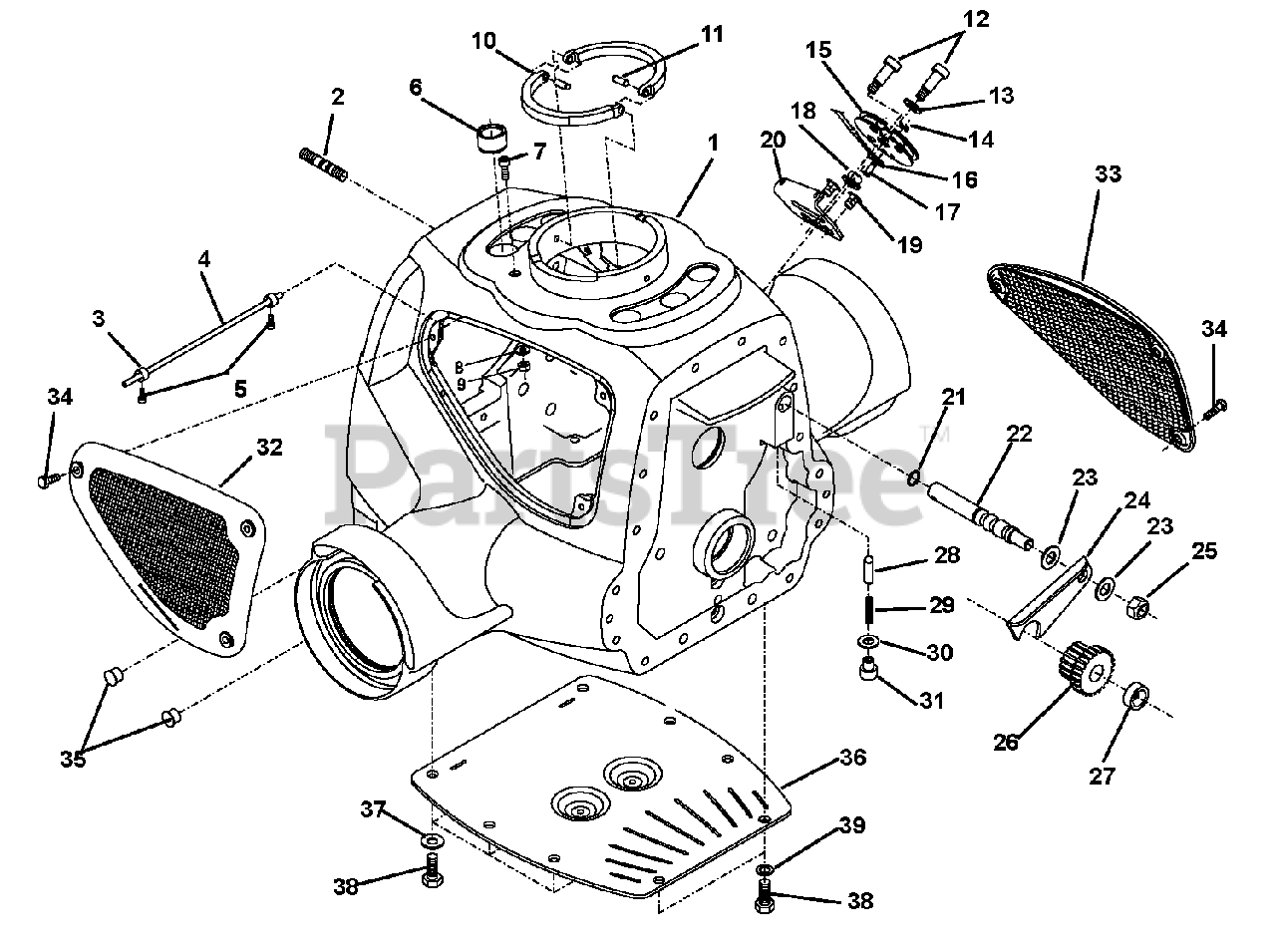

Housing (1) Parts Diagram

  • Title

1

Gravely 08639600

Housing

$

$

Not available

2

Gravely 08639700

Bolt, Stud

$

$

Not available

3

Gravely 08608500

Bolt, Hex D931 M8 x 70

$

$

Not available

4

Gravely 08639900

Safety, Rod

$

$

Not available

5

Gravely 08640000

Screw, D912 M4 x 8

$

$

Not available

6

Gravely 08640100

Bushing

$

$

Not available

7

Gravely 08640200

Screw, D912 M6 x 15

$

$

Not available

8

Gravely 08640300

Washer, Form M6.1/14.2 x 1.4

$

$

Not available

9

Gravely 08620800

Nut, Hex D934 M6

$

$

Not available

10

Gravely 08640500

Ring, Pressure

$

$

Not available

11

Gravely 08640600

Pin, Straight D6325 M6 x 18

$

$

Not available

12

Gravely 08640700

Bolt, Hex M8

$

$

Not available

13

Gravely 08640800

Washer, D125 10.5 x 21 x 2/3

$

$

Not available

14

Gravely 08633000

Bolt

$

$

Not available

15

Gravely 08641000

Gear, Clutch

$

$

Not available

16

Gravely 08641100

Cable, Shift

$

$

Not available

17

Gravely 08633100

Washer, D9021 10,5 x 30 x 2,5

$

$

Not available

18

Gravely 08641300

Bearing

$

$

Not available

19

Gravely 00681300

Bolt, D7991 M8 x 16

$

$

Not available

20

Gravely 08641500

Guide, Cable

$

$

Not available

21

Gravely 08641600

O-Ring

$

$

Not available

22

Gravely 08641700

Rod, Control

$

$

Not available

23

Gravely 08607800

Screw, Truss Head D603 M8 x 20

$

$

Not available

24

Gravely 08641900

Fork, Shift

$

$

Not available

25

Gravely 08642000

Nut, Lock D980V M12

$

$

Not available

26

Gravely 08642100

Gear, Clutch

$

$

Not available

27

Gravely 08642200

Ring, Distance

$

$

Not available

28

Gravely 08642300

Pin, Lock

$

$

Not available

29

Gravely 08642400

Spring, Pressure

$

$

Not available

30

Gravely 08642500

Washer, Form Steel 10.2/20.25 x 1.6

$

$

Not available

31

Gravely 08642600

Screw

$

$

Not available

32

Gravely 08681400

CPL, Lever Positive 20-29

$

$

Not available

33

Gravely 08681500

Lever

$

$

Not available

34

Gravely 08669800

Bolt, Hex D933 M6 x 20
(Superseded to 00861400)

$

$

Not available

35

Gravely 08643000

Cap

$

$

Not available

36

Gravely 08643100

Assembly, Base

$

$

Not available

37

Gravely 08607600

Washer, M10

$

$

Not available

38

Gravely 08683900

Bolt, Hex D933 M10 x 25

$

$

Not available

39

Gravely 08643400

Washer, Form Z 10.2/16.1 x 1.6

$

$

Not available
