985402 - Gravely Rapid U Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Handlebar Swivel Parts Diagram

Rapid U Walk-Behind 2-Wheel Tractor

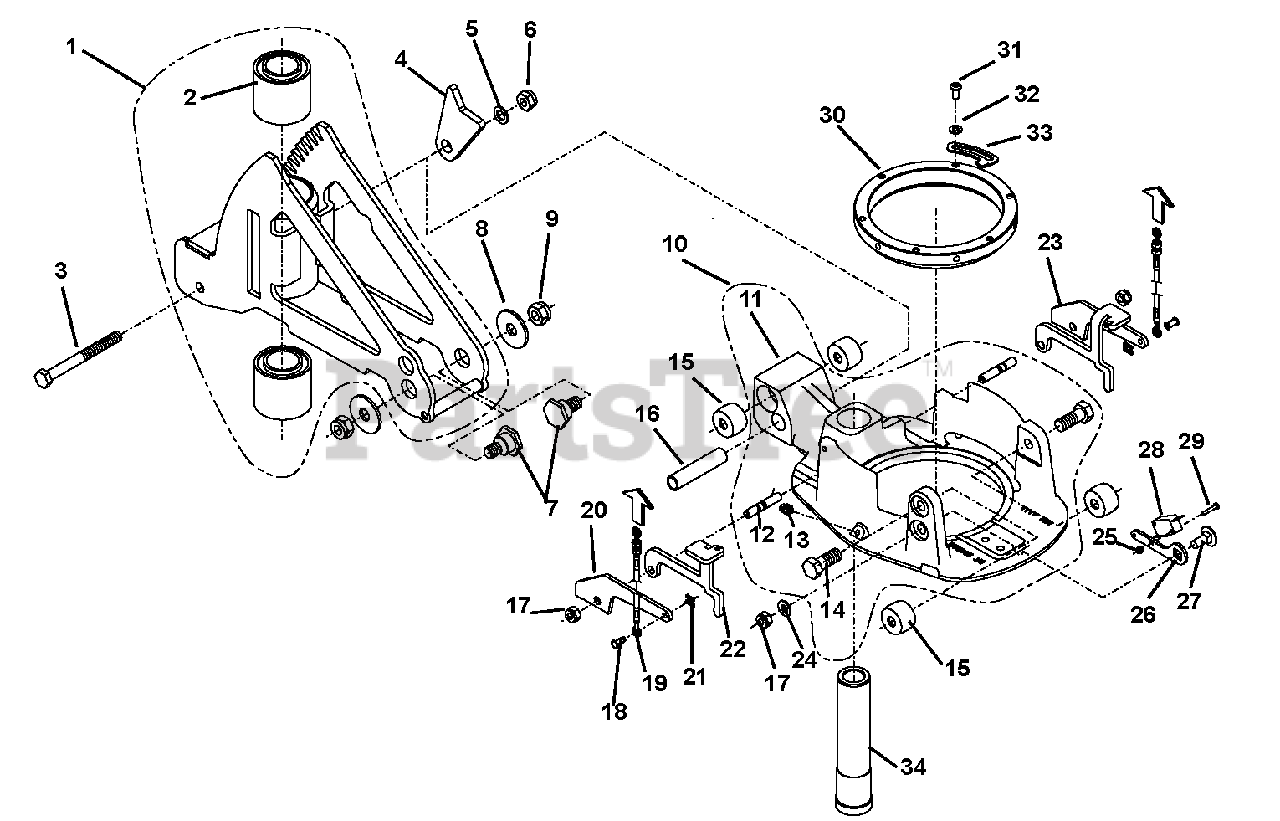

Handlebar Swivel Parts Diagram

  • Title

1

Gravely 00684100

Support Handle

$

$

Not available

2

Gravely 08670500

Silentbloc

$

$

Not available

3

Gravely 08670600

Bolt, Hex M10 x 100

$

$

Not available

4

Gravely 00684200

Stop

$

$

Not available

5

Gravely 08670700

Washer, 10.5 x 18

$

$

Not available

6

Gravely 08628600

Nut, Lock D985 M10

$

$

Not available

7

Gravely 08670900

Screw

$

$

Not available

8

Gravely 08671000

Washer. 13 x 40 x 3

$

$

Not available

9

Gravely 08671100

Nut, Lock M12

$

$

Not available

10

Gravely 00684300

Support, Handle Assembly (Includes 11 - 14)

Note: (Includes 11 - 14)

$

$

Not available

11

Gravely 00684400

Support Handle

$

$

Not available

12

Gravely 08671800

Bolt, Stud M8FO x 30

$

$

Not available

13

Gravely 08632100

Lubricator

$

$

Not available

14

Gravely 08672000

Bolt, Hex M12 x 30

$

$

Not available

15

Gravely 08631400

Silentbloc

$

$

Not available

16

Gravely 08671300

Distance Spacer

$

$

Not available

17

Gravely 08622000

Nut, Lock, D985 M8

$

$

Not available

18

Gravely 08633100

Pin, Lock 5 x 12.5 x 10

$

$

Not available

19

Gravely 08671400

Cable, Steering

$

$

Not available

20

Gravely 08671500

Bracket

$

$

Not available

21

Gravely 08694600

Washer, Lock

$

$

Not available

22

Gravely 08671600

Arm, Steering Right

$

$

Not available

23

Gravely 08671700

Arm, Steering Left

$

$

Not available

24

Gravely 08632300

Washer, Form S 8.2/16.2 x 1.4
(Superseded to 08605800)

$

$

Not available

25

Gravely 08634600

Nut, Lock D985 M3

$

$

Not available

26

Gravely 08672500

Plate, Lock

$

$

Not available

27

Gravely 08672600

Screw, Truss Head M8 x 25

$

$

Not available

28

Gravely 08628000

Switch
(Superseded to 00690400)

$37.99

$

Usually ships in 4-12 days

0

29

Gravely 08672800

Screw, Slit Head M3 x 18

$

$

Not available

30

Gravely 08672100

Buckle

$

$

Not available

31

Gravely 08672200

Screw, M6 x 12

$9.99

$

Usually ships in 4-12 days

0

32

Gravely 08620600

Washer, Form S 6.1/12.2 x 1.2

$

$

Not available

33

Gravely 08672300

Washer, Lock

$

$

Not available

34

Gravely 08672400

Tube, Bearing

$

$

Not available
