985402 - Gravely Rapid U Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Handlebar (1) Parts Diagram

Rapid U Walk-Behind 2-Wheel Tractor

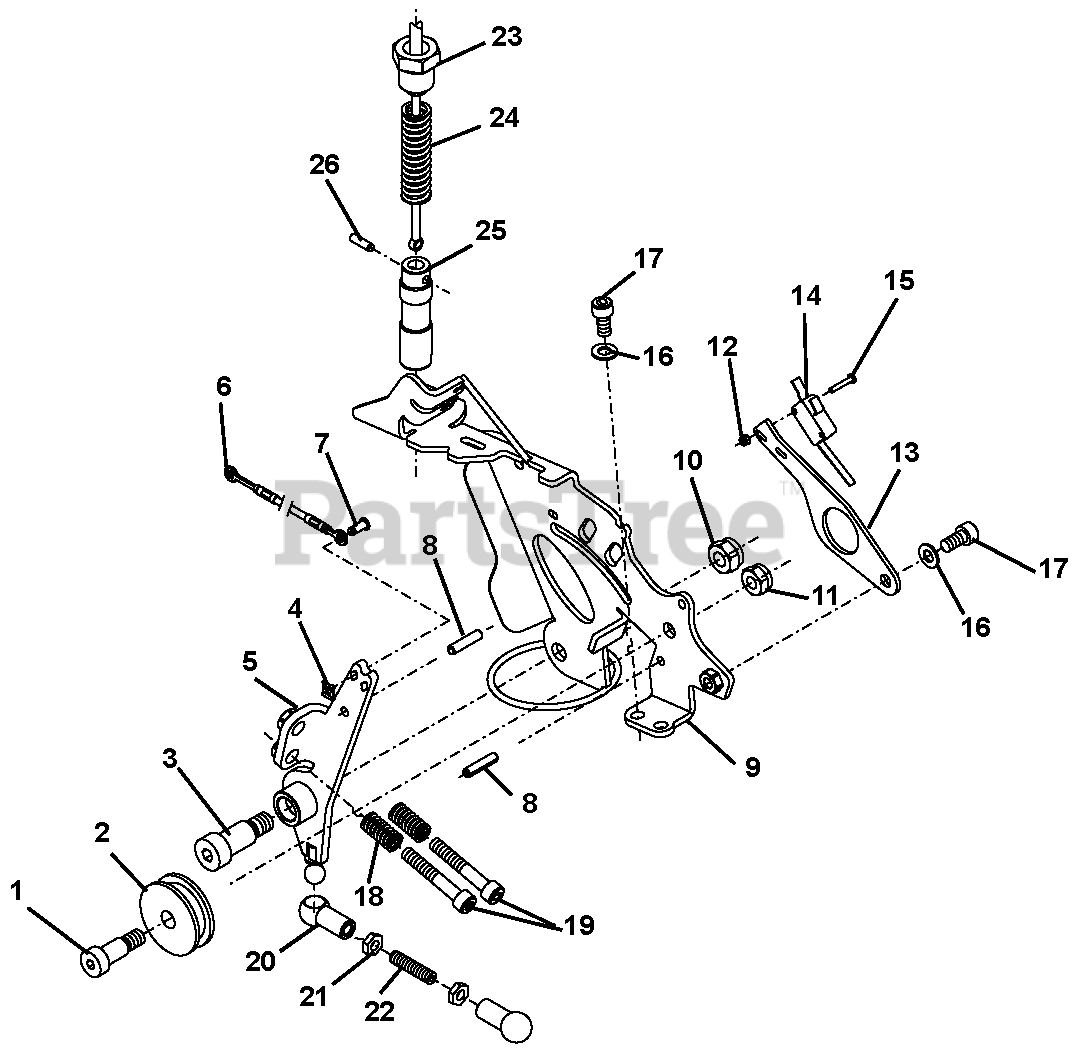

Handlebar (1) Parts Diagram

  • Title

1

Gravely 08672900

Bolt

$

$

Not available

2

Gravely 08673000

Roller

$

$

Not available

3

Gravely 08673100

Bolt

$

$

Not available

4

Gravely 08694600

Washer, Lock

$

$

Not available

5

Gravely 08673200

Rod, Shift

$

$

Not available

6

Gravely 08673300

Cable, Driving

$155.99

$

Usually ships in 4-12 days

0

7

Gravely 08633100

Pin, Lock

$

$

Not available

8

Gravely 08673400

Spring Dowel

$

$

Not available

9

Gravely 08673500

Plate, Lock

$

$

Not available

10

Gravely 08671100

Nut, Lock M12

$

$

Not available

11

Gravely 08628600

Nut, Lock M10

$

$

Not available

12

Gravely 08634600

Nut, Lock M3

$

$

Not available

13

Gravely 08673700

Plate, Lock

$

$

Not available

14

Gravely 08673800

Switch, Driving

$23.99

$

Usually ships in 4-12 days

0

15

Gravely 08672800

Screw, Slit Head M3 x 18

$

$

Not available

16

Gravely 08632300

Washer, M8
(Superseded to 08605800)

$

$

Not available

17

Gravely 08644000

Screw, D912 M8 x 16

$

$

Not available

18

Gravely 08674000

Spring, Pressure

$

$

Not available

19

Gravely 08631600

Screw, M8 x 50

$

$

Not available

20

Gravely 08633200

Bearing Bushing

$

$

Not available

21

Gravely 08674300

Nut, Hex M8

$

$

Not available

22

Gravely 08622300

Pin, Threaded M8 x 35

$

$

Not available

23

Gravely 08674400

Cable, Swivelling Handlebar

$

$

Not available

24

Gravely 08674500

Spring, Pressure

$

$

Not available

25

Gravely 08674600

Bolt, Block

$

$

Not available

26

Gravely 08674700

Pin, Straight 5-H6 x 18

$

$

Not available
