985402 - Gravely Rapid U Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Engine (3) Parts Diagram

Rapid U Walk-Behind 2-Wheel Tractor

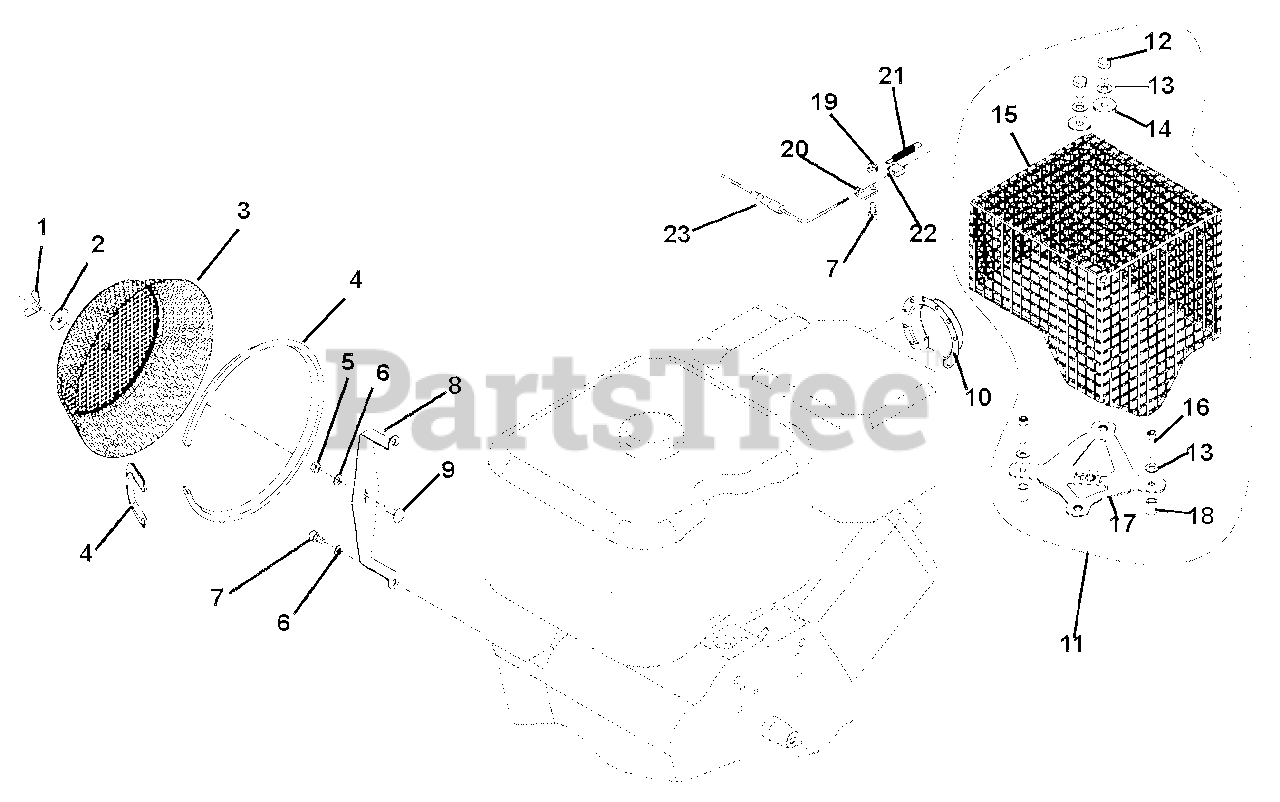

Engine (3) Parts Diagram

  • Title

1

Gravely 08620200

Nut, Wing M6

$

$

Not available

2

Gravely 08620300

Washer, 7 x 25 x 1.8

$

$

Not available

3

Gravely 08668100

Bonnet

$

$

Not available

4

Gravely 08668200

Edge Guard

$

$

Not available

5

Gravely 08620800

Nut, Hex M6

$

$

Not available

6

Gravely 08620600

Washer, 6.1/12.2 x 1.2

$

$

Not available

7

Gravely 08668400

Screw, M6 x 12

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 08668500

Bracket

$

$

Not available

9

Gravely 08620900

Screw, M6 x 20

$

$

Not available

10

Gravely 00682600

Deflector

$

$

Not available

11

Gravely 00682700

HEat Protector Assembly (contains 12 - 18)

Note: (contains 12 - 18)

$

$

Not available

12

Gravely 08621400

Bolt, Hex M8 x 16

$

$

Not available

13

Gravely 08632300

Washer, 8.2/16.2 x 1.4
(Superseded to 08605800)

$

$

Not available

14

Gravely 08636800

Washer, 8.4 x 25 x 2
(Superseded to 00863600)

$

$

Not available

15

Gravely 00682800

Heatr Protector

$

$

Not available

16

Gravely 08662500

Screw, M6 x 25

$

$

Not available

17

Gravely 00682900

Bracket

$

$

Not available

18

Gravely 08670100

Distance Brush

$

$

Not available

19

Gravely 08625000

Nut, Lock M6

$

$

Not available

20

Gravely 08669300

Fish Plate

$

$

Not available

21

Gravely 08669400

Spring, Tension 1.2/10.8 x 62

$

$

Not available

22

Gravely 08669500

Nipple, 2mm

$

$

Not available

23

Gravely 08693600

Cable, Gas

$

$

Not available
