985402 - Gravely Rapid U Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Electrical Parts Diagram

Rapid U Walk-Behind 2-Wheel Tractor

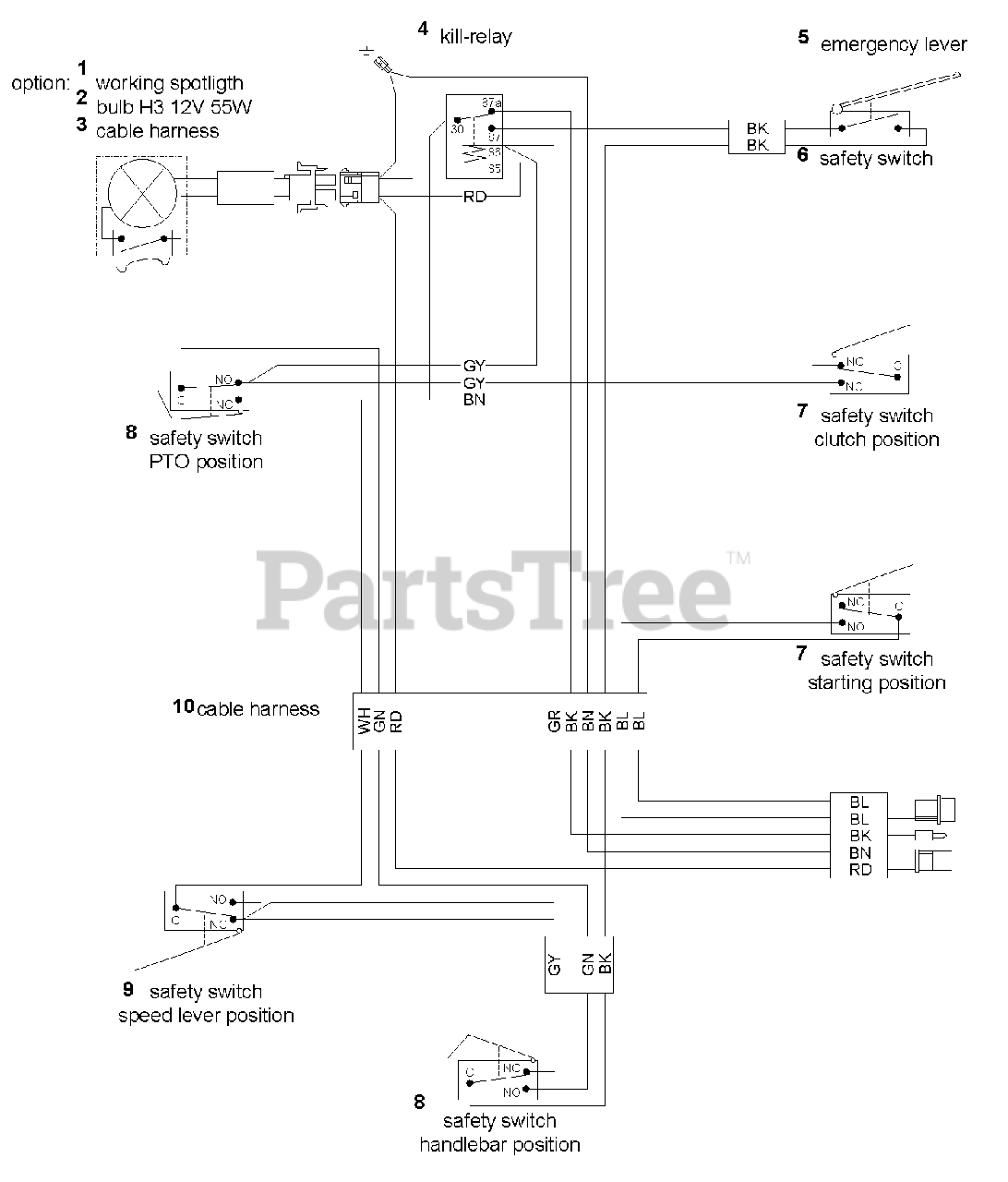

Electrical Parts Diagram

  • Title
1

Gravely 00690200

Working Spotlight

$

$

Not available

2

Gravely 00690300

Bulb H3 12V 55W
(Superseded to 08684700)

$

$

Not available

3

Gravely 08685100

Wire, Harness

$

$

Not available

$71.99

$

Usually ships in 4-12 days

0

5

Gravely 08697000

Lever, Emergency

$

$

Not available

6

$21.99

$

Usually ships in 4-12 days

0

7

Gravely 00690500

Safety Switch, Clutch Position

$

$

Not available

8

Gravely 00690400

Safety Switch, PTO Position

$37.99

$

Usually ships in 4-12 days

0

9

Gravely 08673800

Driving, Switch

$23.99

$

Usually ships in 4-12 days

0

10

Gravely 00688900

Wiring Harness

$

$

Not available
