985402 - Gravely Rapid U Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Clutch Lever Parts Diagram

Rapid U Walk-Behind 2-Wheel Tractor

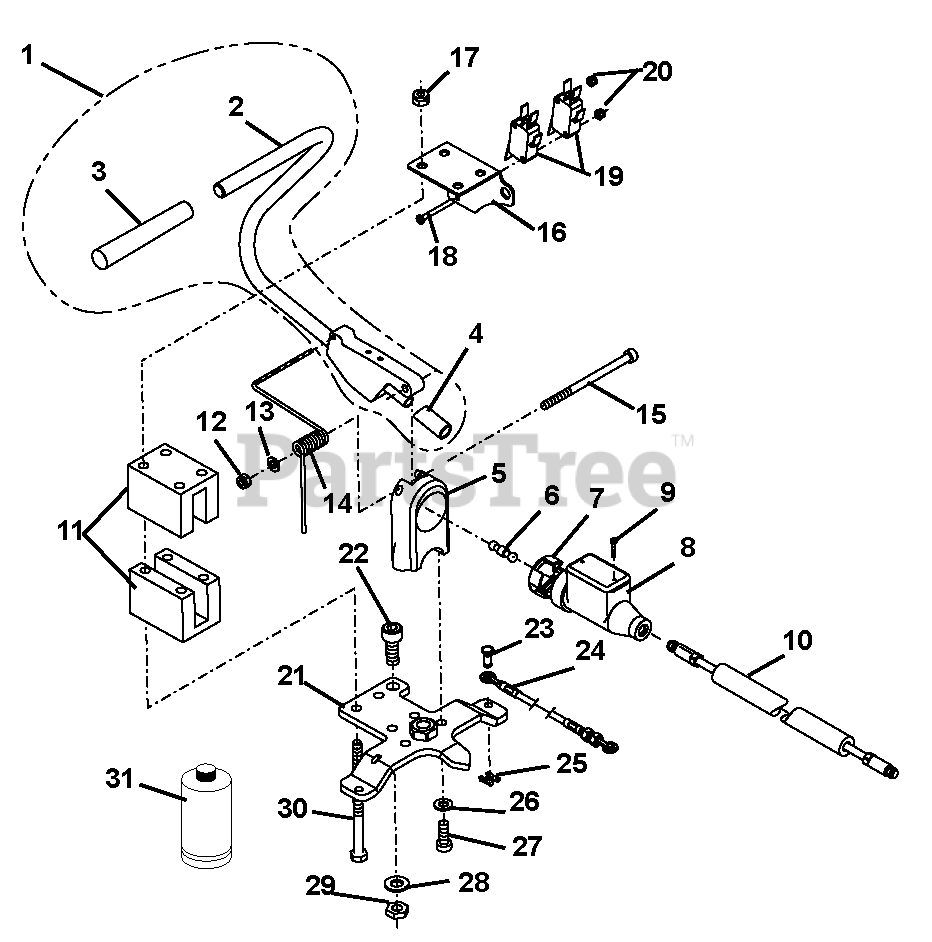

Clutch Lever Parts Diagram

  • Title

1

Gravely 08693700

Clutch Lever Assembly

$

$

Not available

2

Gravely 08678100

Clutch Lever

$

$

Not available

3

Gravely 08678300

Knob, Plastic

$

$

Not available

4

Gravely 00684700

Hose

$

$

Not available

5

Gravely 08678200

Housing

$

$

Not available

6

Gravely 08678400

Tappet

$

$

Not available

7

Gravely 08678500

Clip

$

$

Not available

8

Gravely 08678600

Cylinder

$

$

Not available

9

Gravely 08678700

Screw

$

$

Not available

10

Gravely 08651800

Clutch, CPL Pipe

$

$

Not available

11

Gravely 08678900

Driver

$

$

Not available

12

Gravely 08614600

Nut, Lock M5

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 08679000

Washer, 5.3 x 15 x 2

$

$

Not available

14

Gravely 08679100

Spring, Torsion

$

$

Not available

15

Gravely 08679200

Screw, M5 x 80

$

$

Not available

16

Gravely 08679300

Plate, Lock

$

$

Not available

17

Gravely 08625000

Nut, Lock M6

$

$

Not available

18

Gravely 00684800

Screw, Slit Head M3 x 30

$

$

Not available

19

Gravely 08634200

Switch

$20.99

$

Usually ships in 4-12 days

0

20

Gravely 08634600

Nut, Lock M3

$

$

Not available

21

Gravely 08679600

Wing

$

$

Not available

22

Gravely 08679700

Screw, M8 x 20

$

$

Not available

23

Gravely 08633100

Pin, Lock

$

$

Not available

24

Gravely 08641100

Cable, Shift

$

$

Not available

25

Gravely 08694600

Washer, Lock

$

$

Not available

26

Gravely 08620600

Washer, Form S 6.1/12.2 x 1.2

$

$

Not available

27

Gravely 08675300

Screw, M6 x 16

$

$

Not available

28

Gravely 08632300

Washer, Form S 8.2/16.2 x 1.4
(Superseded to 08605800)

$

$

Not available

29

Gravely 08674300

Nut, Hex M8

$

$

Not available

30

Gravely 08679900

Bolt Hex M6 x 90

$

$

Not available

31

Gravely 08693800

Oil, 75ML (Includes Item 6)

Note: (Includes Item 6)

$

$

Not available
