985401 - Gravely Rapid M Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Tires/Wheel Assembly Parts Diagram

Rapid M Walk-Behind 2-Wheel Tractor

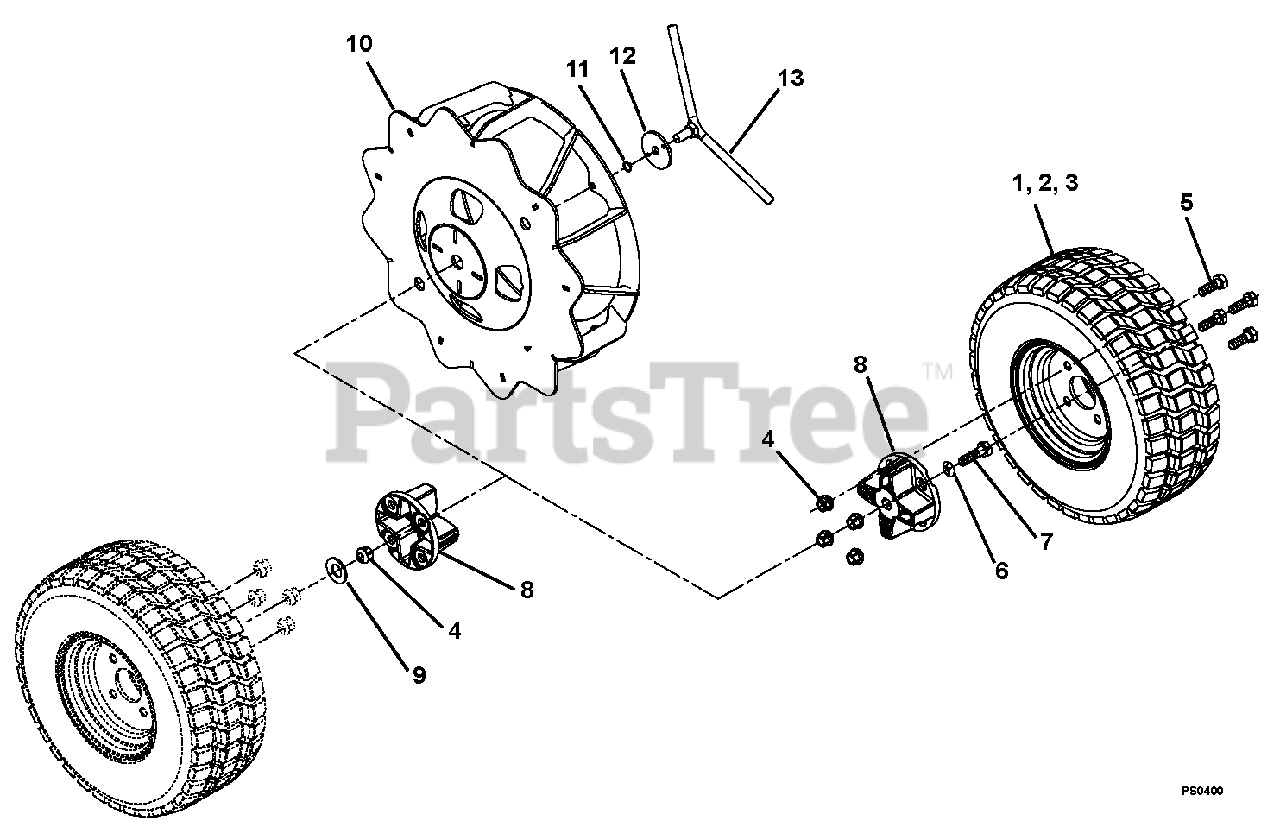

Tires/Wheel Assembly Parts Diagram

  • Title

1

Gravely 08685600

Disc Wheel

$

$

Not available

2

Gravely 08685500

Tyre

$

$

Not available

3

Gravely 08685700

Tyre Tube

$

$

Not available

4

Gravely 08609300

Nut

$

$

Not available

5

Gravely 00680300

Bolt, Hex D961 M14 x 1, 5 x 40

$

$

Not available

6

Gravely 00680400

Washer, Spring D74361C M14

$

$

Not available

7

Gravely 00680500

Bolt, Hex D960 M14 x 1, 5 x 40

$

$

Not available

8

Gravely 00680600

Driving Flange

$

$

Not available

9

Gravely 00680700

Washer, Spring D2093B 45 x 22,4

$

$

Not available

10

Gravely 00680800

Cage Wheel

$294.99

$

Usually ships in 4-12 days

0

11

Gravely 00680900

Circlip

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 00681000

Washer

$

$

Not available

13

Gravely 00681100

Handle Screw

$

$

Not available
