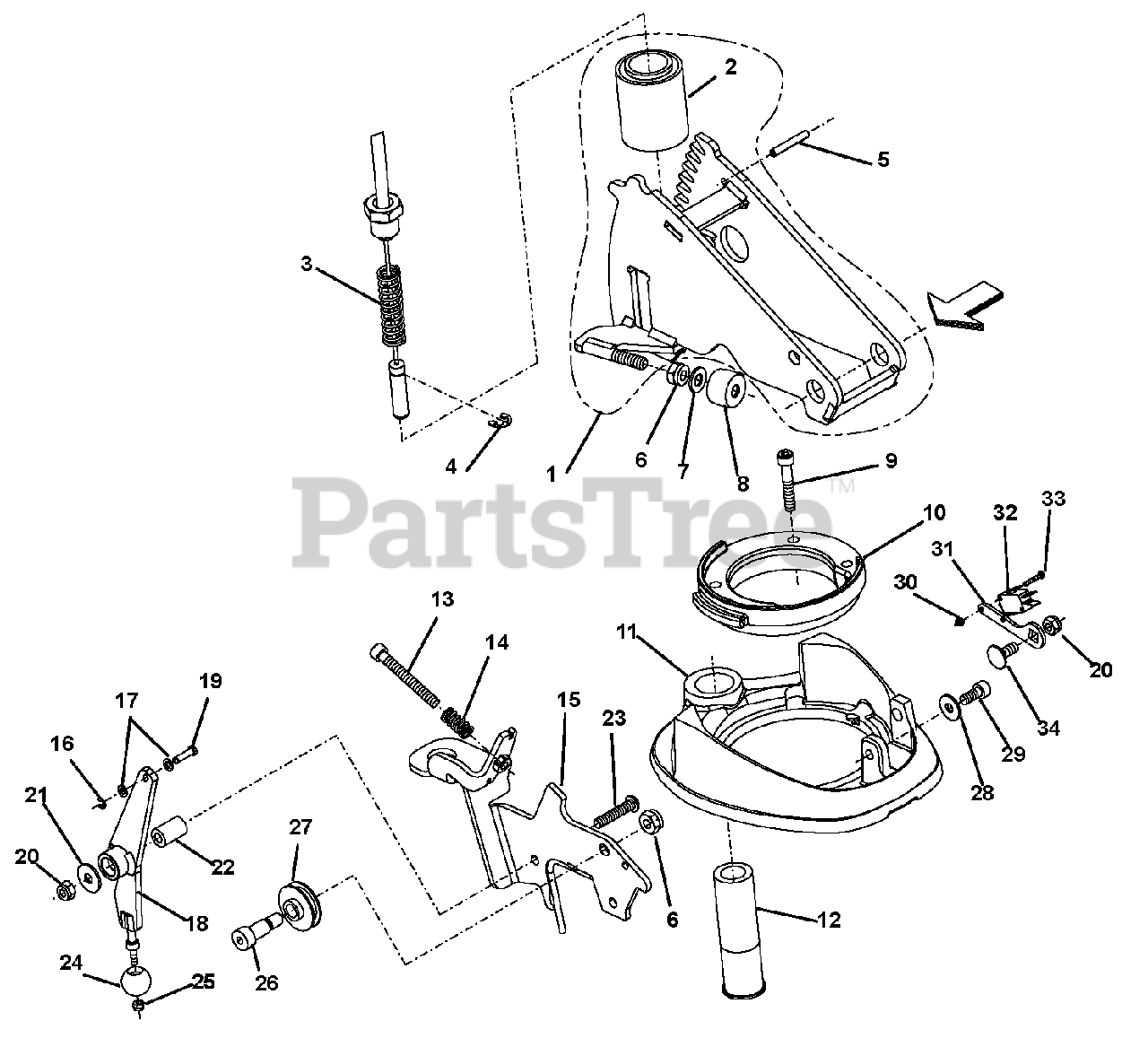

985401 - Gravely Rapid M Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Handlebar Swivel Parts Diagram

Rapid M Walk-Behind 2-Wheel Tractor

Handlebar Swivel Parts Diagram

  • Title
1

Gravely 08633400

Support Handle

$

$

Not available

2

Gravely 08630800

Silentbloc

$

$

Not available

3

Gravely 08630200

Spring, Pressure

$

$

Not available

4

Gravely 08630400

Washer, Retaining 23 x 33 x 1.5

$

$

Not available

5

Gravely 08628100

Pin, Heavy 6 x 40
(Superseded to 00840300)

$

$

Not available

6

Gravely 08628600

Nut, Lock D985 M10

$

$

Not available

7

Gravely 08628700

Washer, D125 10.5 x 21 x 2

$

$

Not available

8

Gravely 08631400

Element, Rubber

$

$

Not available

9

Gravely 08633500

Screw, Cylindrical Head,D912 M8 x 45

$

$

Not available

10

$

$

Not available

11

Gravely 08633700

Support Handle

$

$

Not available

$

$

Not available

13

$

$

Not available

14

Gravely 08674000

Spring, Pressure

$

$

Not available

15

Gravely 08634500

Holding Sheet Metal

$

$

Not available

16

Gravely 08694600

Washer, Lock 4mm

$

$

Not available

17

Gravely 08614200

Washer, D125 5.3 x 10 x 1

$

$

Not available

18

Gravely 08636700

Adjusting Lever

$

$

Not available

19

Gravely 08681900

Pin, Lock

$

$

Not available

20

Gravely 08622000

Nut, Lock, D985 M8

$

$

Not available

21

Gravely 08636800

Washer, D9021 8,4 x 25 x 2
(Superseded to 00863600)

$

$

Not available

22

$

$

Not available

23

Gravely 08637000

Screw, Countersunk Head, M8 x 40

$

$

Not available

24

Gravely 08637100

Ball, Steel

$

$

Not available

25

Gravely 08614600

Nut, Lock M5

$3.99

$

Usually ships in 4-12 days

0

26

Gravely 08672900

Bolt, M10

$

$

Not available

27

$

$

Not available

28

Gravely 08616300

Washer, M8

$

$

Not available

29

Gravely 08637300

Screw, D912 M8 x 18

$

$

Not available

30

Gravely 08634600

Nut, Lock D985 M3

$

$

Not available

31

Gravely 08672500

Plate, Lock

$

$

Not available

32

Gravely 08628000

Switch
(Superseded to 00690400)

$37.99

$

Usually ships in 4-12 days

0

33

Gravely 08607200

Screw, Flat Head Screw D85A M3 x 18
(Superseded to 08672800)

$

$

Not available

34

Gravely 08607800

Screw, Truss Head

$

$

Not available
