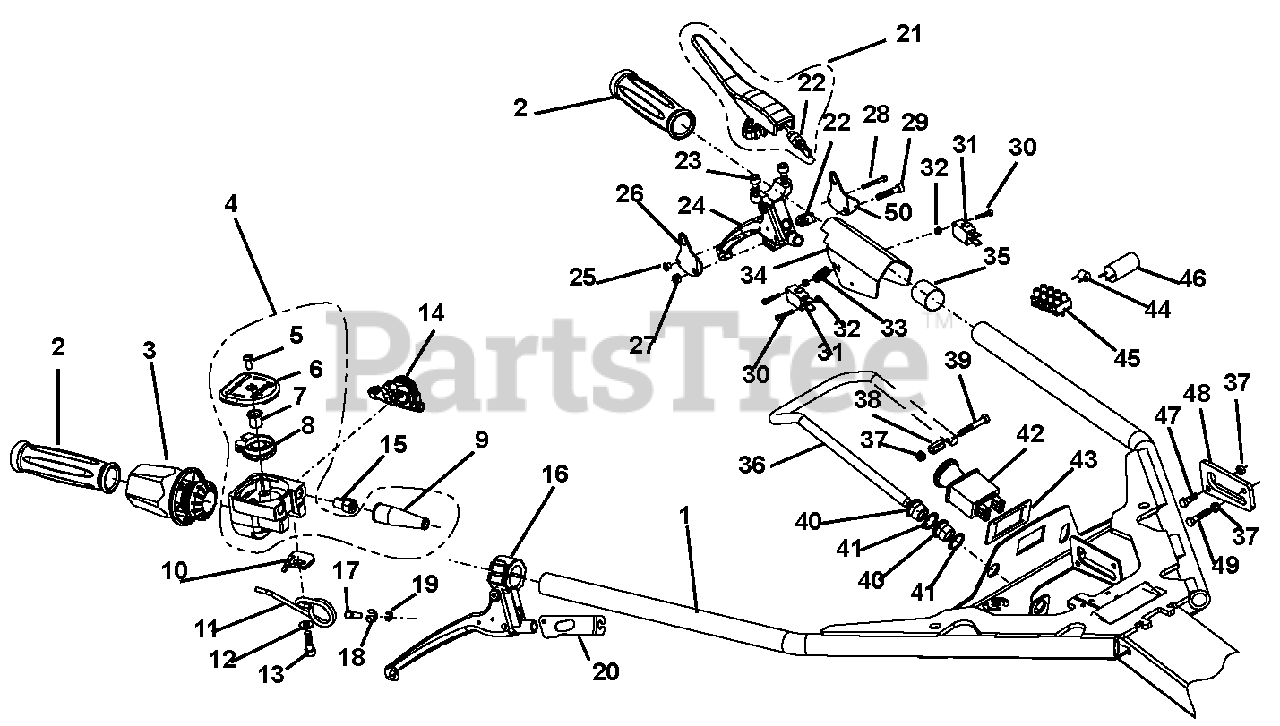

985401 - Gravely Rapid M Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Handlebar (2) Parts Diagram

Rapid M Walk-Behind 2-Wheel Tractor

Handlebar (2) Parts Diagram

  • Title

1

Gravely 08629300

Swiveling Handlebar

$

$

Not available

2

Gravely 08627000

Rubber, Handle

$22.99

$

Usually ships in 4-12 days

0

3

Gravely 08694900

Bushing, Grip

$189.99

$

Usually ships in 4-12 days

0

4

Gravely 08680200

MF Control Unit CPL, (Includes items 5 - 8)

Note: (Includes items 5 - 8)

$233.99

$

Usually ships in 4-12 days

0

5

Gravely 08626600

Screw, M5 x 12/ 10.9

$5.99

$

Usually ships in 4-12 days

0

6

Gravely 08627400

Cover

$65.99

$

Usually ships in 4-12 days

0

7

Gravely 08626900

Bushing
(Superseded to 00854200)

$41.99

$

Usually ships in 4-12 days

0

8

Gravely 08626800

Bevel Wheel with Cam

$45.99

$

Usually ships in 4-12 days

0

9

Gravely 08627800

Rubber

$41.99

$

Usually ships in 4-12 days

0

10

Gravely 08629400

Cover, Stop
(Superseded to 00854400)

$

$

Not available

11

Gravely 08694800

Spring, Return

$

$

Not available

12

Gravely 08609900

Spacer, 1.03 x 1.38 x .184

$

$

Not available

13

Gravely 08618100

Screw, M6 x 20

$

$

Not available

14

Gravely 08694700

Assembly, Throttle Lever

$50.99

$

Usually ships in 4-12 days

0

15

Gravely 08627700

Nipple, Screwed

$35.99

$

Usually ships in 4-12 days

0

16

Gravely 08682200

CPL, Lever

$86.99

$

Usually ships in 4-12 days

0

17

Gravely 08629500

Bolt
(Superseded to 08681900)

$

$

Not available

18

Gravely 08629600

Lockwasher, D6799 6 MM

$

$

Not available

19

Gravely 08694600

Washer, Lock

$

$

Not available

20

Gravely 08629700

Lock

$

$

Not available

21

Gravely 08697400

Lever, Emergency

$325.99

$

Usually ships in 4-12 days

0

22

Gravely 08693900

Switch

$21.99

$

Usually ships in 4-12 days

0

23

Gravely 08629800

Screw, D912 M6 x 22

$3.99

$

Usually ships in 4-12 days

0

24

Gravely 08697500

Lever, Control

$129.99

$

Usually ships in 4-12 days

0

25

Gravely 08630000

Bushing

$

$

Not available

26

Gravely 08630100

Tracer Plate

$

$

Not available

27

Gravely 08614600

Nut, Lock

$3.99

$

Usually ships in 4-12 days

0

28

Gravely 08669600

Screw, D912 M3 x 25

$

$

Not available

29

Gravely 08630300

Screw, D912 M5 x 25

$

$

Not available

30

Gravely 08630500

Screw, D912 M3 x 16

$

$

Not available

31

Gravely 08697600

Switch, Micro

$22.99

$

Usually ships in 4-12 days

0

32

Gravely 08634600

Nut, Lock D985 M3

$

$

Not available

33

Gravely 08630700

Tension Spring

$

$

Not available

34

Gravely 08630900

Support

$

$

Not available

35

Gravely 08631000

Shrinkdown Tubing, RNF100 1 TYP1

$

$

Not available

36

Gravely 08631300

Lever, Locking

$

$

Not available

37

Gravely 08614600

Nut, Lock

$3.99

$

Usually ships in 4-12 days

0

38

Gravely 08631500

Nut, Hex DIN 6334 M5 x 15

$

$

Not available

39

Gravely 08631600

Bolt, Hex D933 M5 x 35

$

$

Not available

40

Gravely 08631700

Bushing

$

$

Not available

41

Gravely 08631800

Circlip

$

$

Not available

42

Gravely 08695000

Switch, PTO

$

$

Not available

43

Gravely 08632000

Front Screen

$

$

Not available

44

Gravely 08695100

Diode

$

$

Not available

45

Gravely 08632100

Clamping Ledge

$

$

Not available

46

Gravely 08695200

Condenser

$

$

Not available

47

Gravely 08632500

Bolt, Hex D933 M5 x 16

$

$

Not available

48

Gravely 08632700

Guide Sheet Metal

$

$

Not available

49

Gravely 08606100

Bolt, Hex D933 M5 x 25

$

$

Not available

50

Gravely 08632800

Tracer Plate

$

$

Not available
