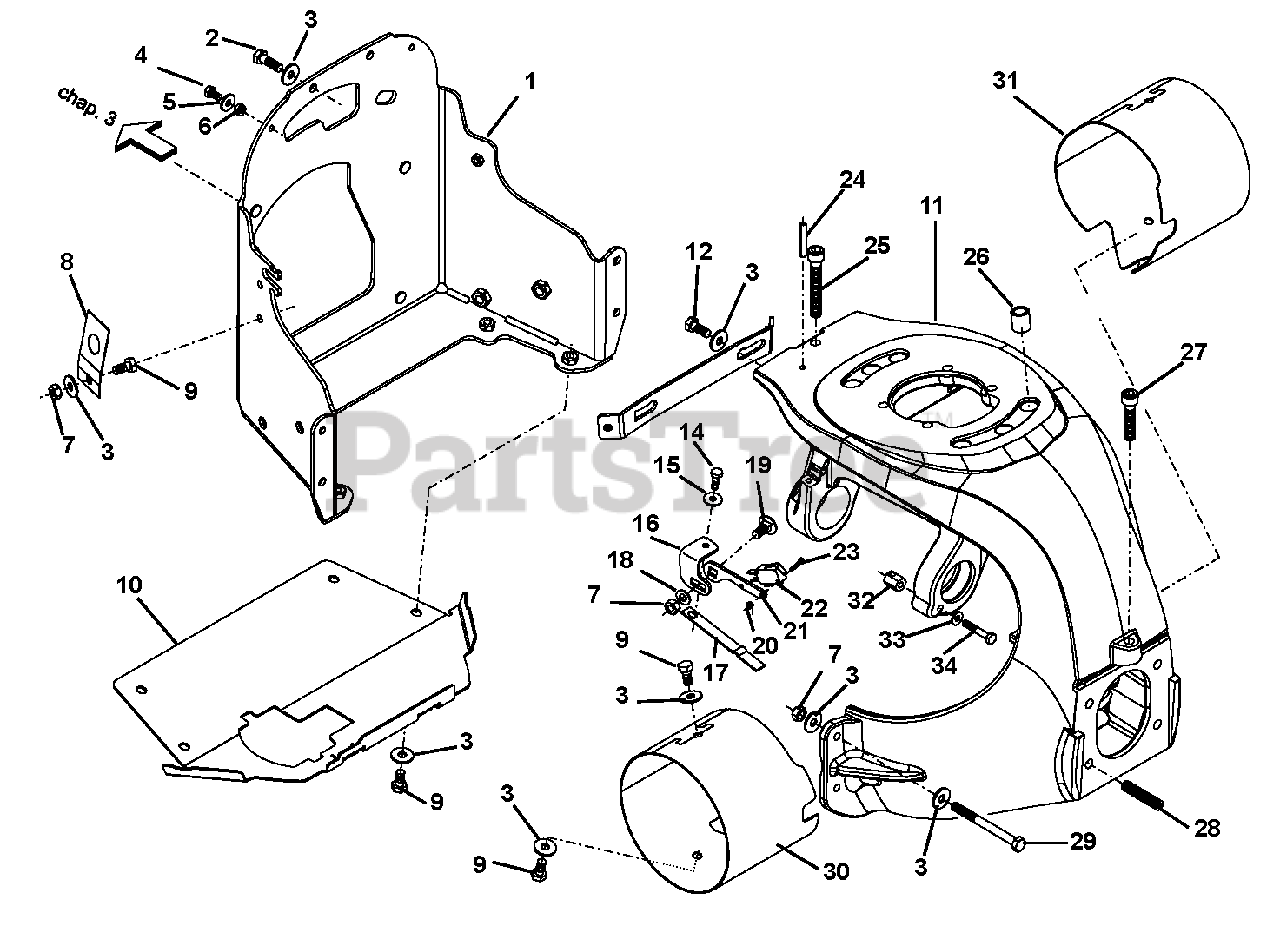

985401 - Gravely Rapid M Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Frame Parts Diagram

Rapid M Walk-Behind 2-Wheel Tractor

Frame Parts Diagram

  • Title

1

Gravely 00695500

Bracket, Engine

$

$

Not available

2

Gravely 08635100

Bolt, Hex D933 M8 x 25

$

$

Not available

3

Gravely 08616300

Washer, M8

$

$

Not available

4

Gravely 08614700

Bolt, Hex D933 M6 x 12

$

$

Not available

5

Gravely 08677200

Washer, D9021 6.3 x 18

$

$

Not available

6

Gravely 08625000

Nut, Lock D985 M6

$

$

Not available

7

Gravely 08621300

Bolt, Hex D933 M8 x 16
(Superseded to 08605700)

$

$

Not available

8

Gravely 08621800

Spring, Flat

$

$

Not available

9

Gravely 08621400

Bolt, Hex D933 M8 x 16

$

$

Not available

10

Gravely 08627200

Sheet

$

$

Not available

11

Gravely 08627300

Frame

$

$

Not available

12

Gravely 08604300

Bolt, Hex D933 M8 x 20

$

$

Not available

13

Gravely 08627500

Bracket

$

$

Not available

14

Gravely 08606000

Bolt, Hex D933 M6 x 18

$

$

Not available

15

Gravely 08631900

Washer, M6

$

$

Not available

16

Gravely 08627600

Bracket

$

$

Not available

17

Gravely 08627900

Lever, Spring

$

$

Not available

18

Gravely 08632300

Washer, M8
(Superseded to 08605800)

$

$

Not available

19

Gravely 08607800

Truss Head Screw, D603 M8 x 20

$

$

Not available

20

Gravely 08634600

Nut, Lock D985 M3

$

$

Not available

21

Gravely 08672500

Plate, Lock

$

$

Not available

22

Gravely 08628000

Switch
(Superseded to 00690400)

$37.99

$

Usually ships in 4-12 days

0

23

Gravely 08607200

Screw, Flat head D85A M3 x 18
(Superseded to 08672800)

$

$

Not available

24

Gravely 08628100

Pin, Heavy 6 x 40
(Superseded to 00840300)

$

$

Not available

25

Gravely 08628200

Screw, D912 M10 x 70

$

$

Not available

26

Gravely 08628300

Collar Sleeve

$

$

Not available

27

Gravely 08628400

Screw, D912 M10 x 45

$

$

Not available

28

Gravely 08628500

Screw, Set D913 M10 x 50

$7.49

$

Usually ships in 4-12 days

0

29

Gravely 08608400

Bolt, Hex D931 M8 x 90

$

$

Not available

30

Gravely 08628800

Guard, Grass Right Hand

$

$

Not available

31

Gravely 08628900

Guard, Grass Left Hand

$

$

Not available

32

Gravely 08622600

Support, Cable

$

$

Not available

33

Gravely 08609900

Spacer, 1.03 x 1.38 x .184

$

$

Not available

34

Gravely 08622900

Screw, D933 Metric 6 x 35

$

$

Not available
