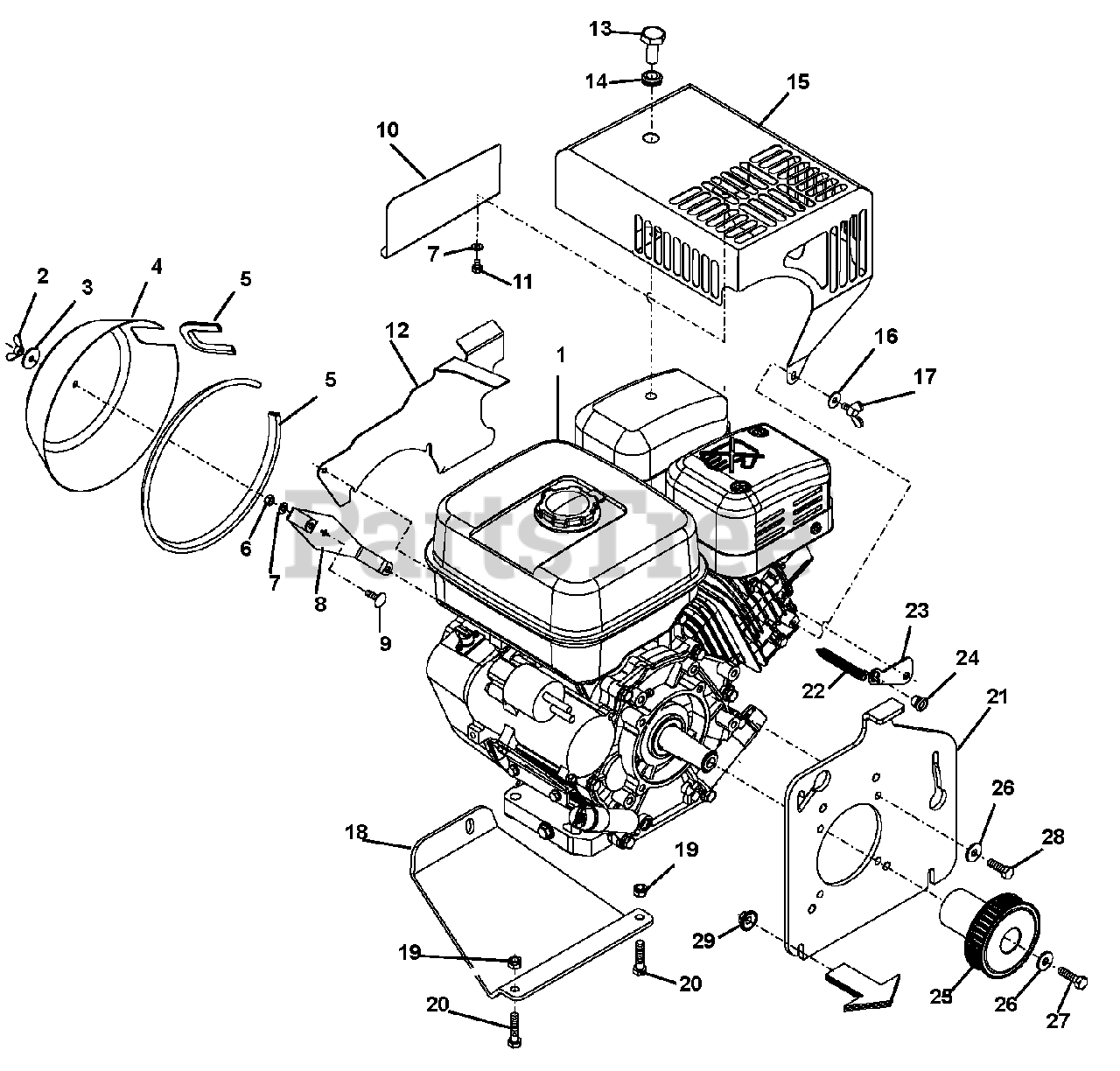

985401 - Gravely Rapid M Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Engine Parts Diagram

Rapid M Walk-Behind 2-Wheel Tractor

Engine Parts Diagram

  • Title

1

Gravely 08624400

Engine 9 HP EST, Robin, EST

$

$

Not available

2

Gravely 08620200

Nut, Wing

$

$

Not available

3

Gravely 08620300

Washer, 7 x 25 x 1.8

$

$

Not available

4

Gravely 08624500

Bonnet
(Superseded to 08668100)

$

$

Not available

5

Gravely 08624600

Edge Protection, N802 6,5 x 8
(Superseded to 08668200)

$

$

Not available

6

Gravely 08620800

Nut, Hex D934 M6

$

$

Not available

7

Gravely 08620600

Washer, M6

$

$

Not available

8

Gravely 08624700

Support

$

$

Not available

9

Gravely 08620900

Screw, BN289 M6 x 20

$

$

Not available

10

Gravely 08624800

Sheet, Divider

$

$

Not available

11

Gravely 08624900

Screw, D912 M6 x 35

$

$

Not available

12

Gravely 08625100

Winter Plating

$

$

Not available

13

Gravely 08625200

Wing Nut

$

$

Not available

14

Gravely 08634900

Grommet

$

$

Not available

15

Gravely 08625300

Guard, Sheet Metal

$

$

Not available

16

Gravely 08631900

Washer, M6

$

$

Not available

17

Gravely 08625600

Wing Screw, D316 M6 x 12

$

$

Not available

18

Gravely 08625700

Guard, Sheet Metal

$

$

Not available

19

Gravely 08622000

Nut, Lock D985 M8

$

$

Not available

20

Gravely 08626000

Bolt, Hex D933 M8 x 35

$

$

Not available

21

Gravely 08626100

Retaining Plate

$

$

Not available

22

Gravely 08626200

Tension Spring

$

$

Not available

23

Gravely 08626300

Support

$

$

Not available

24

Gravely 08626400

Bushing
(Superseded to 08677900)

$

$

Not available

25

Gravely 08626500

Pulley
(Superseded to 08694500)

$

$

Not available

26

Gravely 08616300

Washer, M8

$

$

Not available

27

Gravely 08636400

Bolt, Hex D933 M8 x 30

$

$

Not available

28

Gravely 08626700

Bolt, Hex UNF 5/16" x 1"

$

$

Not available

29

Gravely 08627100

Lock Nut, M8

$

$

Not available
