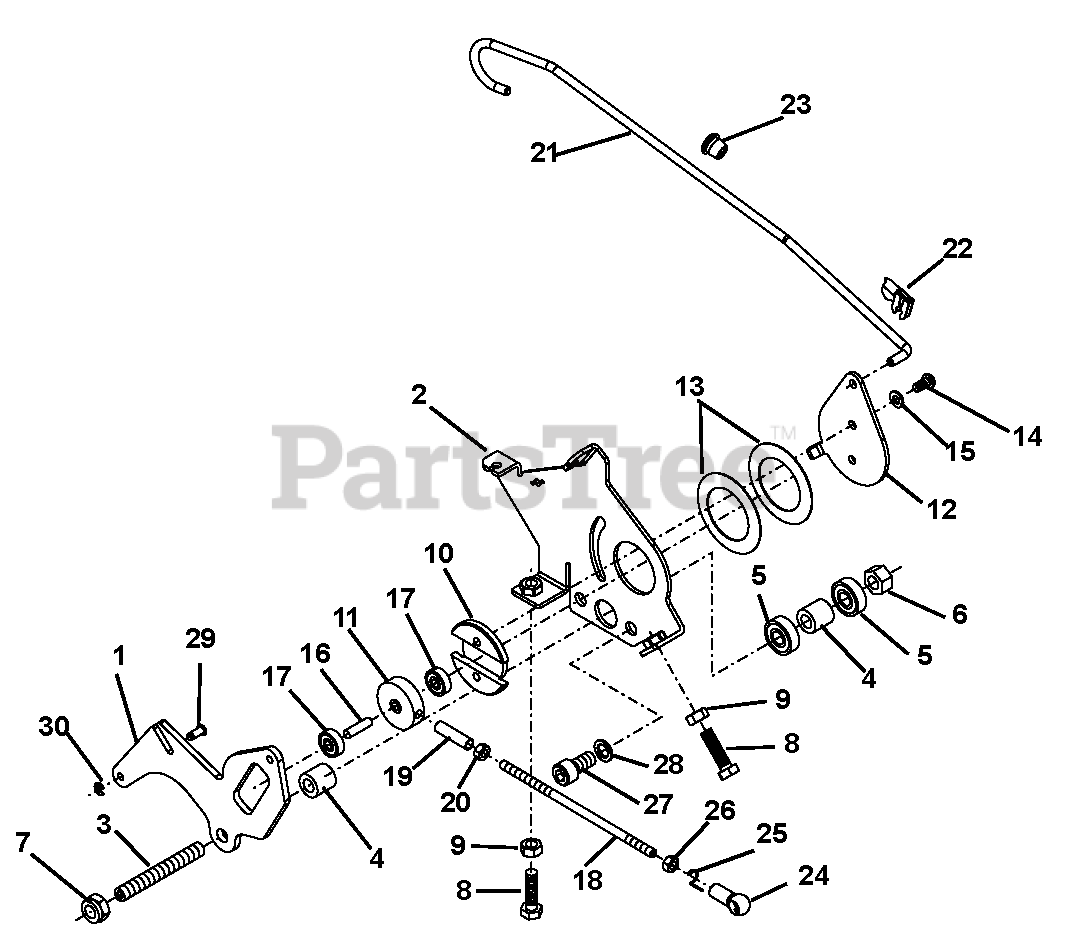

985400 - Gravely Rapid E Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Reduce Advance Assembly Parts Diagram

Rapid E Walk-Behind 2-Wheel Tractor

Reduce Advance Assembly Parts Diagram

  • Title

1

Gravely 00846900

Lever, Forward

$

$

Not available

2

Gravely 00847000

Bearing Plate

$

$

Not available

3

Gravely 00847100

Stud, Threaded, D913 M10 x 80

$

$

Not available

4

Gravely 00847200

Collar

$

$

Not available

5

Gravely 00847300

Ball Bearing, 6000 2RS

$

$

Not available

6

Gravely 00847400

Lock Nut, D980V M10

$

$

Not available

7

Gravely 08628600

Nut, Lock, D985 M10

$

$

Not available

8

Gravely 08636400

Bolt, Hex, D933 Metric 8 x 30

$

$

Not available

9

Gravely 08605700

Nut, Hex D934 M8

$

$

Not available

10

Gravely 00847500

Pivoting Bearing

$

$

Not available

11

Gravely 00847600

Washer

$

$

Not available

12

Gravely 00847700

Plate, Pivoting

$

$

Not available

13

Gravely 00847800

Bell Washer, 31085 40,5 x 61

$

$

Not available

14

Gravely 08672200

Screw, ISO7380 Metric 6 x 12

$9.99

$

Usually ships in 4-12 days

0

15

Gravely 08620600

Washer, M6

$

$

Not available

16

Gravely 00847900

Pin Cylindrical, D6325 M6 x 24

$

$

Not available

17

Gravely 00848000

Ball Bearing, 626 2RS

$

$

Not available

18

Gravely 00848100

Rod, Threaded, M6 x 155

$

$

Not available

19

Gravely 00848200

Disrtance Spacer, Right 8/0, 75

$

$

Not available

20

Gravely 08608900

Nut, Hex D934 M6

$

$

Not available

21

Gravely 00848300

Control Rod

$

$

Not available

22

Gravely 00848400

Friction Spring, N580 6 SXN-04

$

$

Not available

23

Gravely 08677900

Bushing

$

$

Not available

24

Gravely 00837700

Pan, Ball, D71805 10B LINKS

$

$

Not available

25

Gravely 00837600

Bow, Lock, D71805 10S

$

$

Not available

26

Gravely 00837800

Hex Nut, D934 M6 LI

$

$

Not available

27

Gravely 00848500

Bolt, Cylindrical, D912 M10

$

$

Not available

28

Gravely 08643400

Washer, Form Z 10.2/16.1 x 1.6

$

$

Not available

29

Gravely 08633100

Pin

$

$

Not available

30

Gravely 08694600

Washer, Lock

$

$

Not available
