985400 - Gravely Rapid E Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) P.T.O. Shaft Parts Diagram

Rapid E Walk-Behind 2-Wheel Tractor

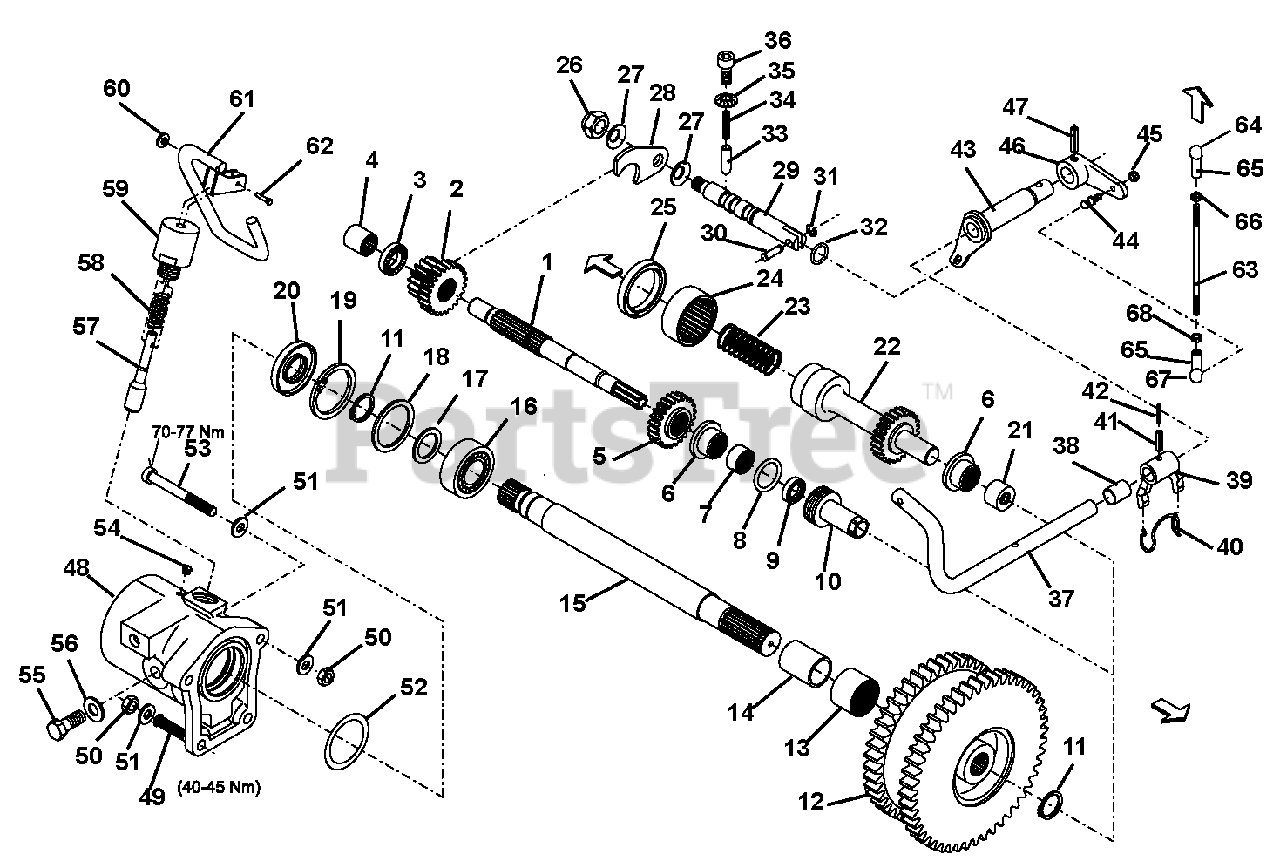

P.T.O. Shaft Parts Diagram

  • Title

1

Gravely 00833300

Shaft, Clutch

$

$

Not available

2

Gravely 08642100

Gear, Clutch

$

$

Not available

3

Gravely 00833400

Ball Bearing

$203.99

$

Usually ships in 4-12 days

0

4

Gravely 00833500

Needle Bearing, Black 1622

$

$

Not available

5

Gravely 00833600

Pinion

$

$

Not available

6

Gravely 00833700

Ball Bearing, RAX 718

$

$

Not available

7

Gravely 00833800

Needle Bearing, HK 1812

$

$

Not available

8

Gravely 00833900

O-Ring, D3770 27 x 3

$

$

Not available

9

Gravely 00834000

Oil Seal, 16 x 24 x 6 B1

$

$

Not available

10

Gravely 00834100

Bushing, Guide

$

$

Not available

11

Gravely 00834200

Circlip, D471 24 1,20

$

$

Not available

12

Gravely 08647200

Pinion, Double, Z=83/88

$

$

Not available

13

Gravely 08691700

Bearing, Needle HK 3026

$

$

Not available

14

Gravely 08691800

Ring, Inner IR 25 x 30 x 38.5

$

$

Not available

15

Gravely 08691900

Shaft, PTO

$

$

Not available

16

Gravely 08647400

Bearing, Ball, 4205B.TVH

$

$

Not available

17

Gravely 08647100

Washer, D988 25 x 35 x 2

$

$

Not available

18

Gravely 00834300

Supporting Ring, D988 42

$

$

Not available

19

Gravely 00834400

Circlip, D472 52 2,00

$

$

Not available

20

Gravely 08692000

Seal, Oil 25 x 52 x 7

$

$

Not available

21

Gravely 00834500

Needle Bearing, Black 1816

$

$

Not available

22

Gravely 00834600

Drive Shaft

$

$

Not available

23

Gravely 00834700

Pressure Spring

$

$

Not available

24

Gravely 00834800

Needle Bearing, HK 4520

$

$

Not available

25

Gravely 00834900

Oil Seal, 42 x 55 x 8

$

$

Not available

26

Gravely 08642000

Nut, Lock, D980V M12

$

$

Not available

27

Gravely 08607800

Wahser

$

$

Not available

28

Gravely 00835000

Gear Shift

$

$

Not available

29

Gravely 00835100

COntrol Rod

$

$

Not available

30

Gravely 00835200

Pin

$

$

Not available

31

Gravely 00835300

Washer

$

$

Not available

32

Gravely 08641600

O-RIng

$

$

Not available

33

Gravely 08642300

Pin, Lock

$

$

Not available

34

Gravely 08642400

Spring, Pressure

$

$

Not available

35

Gravely 08642500

Washer, FORM Steel 10.2/20.25 x 1.6

$

$

Not available

36

Gravely 00835400

Screw, Cylinder D912 M10 x 12

$

$

Not available

37

Gravely 00835500

Shaft Clutch

$

$

Not available

38

Gravely 00835600

Bearing Sleeve

$

$

Not available

39

Gravely 00835700

Lever, Clutch Release

$

$

Not available

40

Gravely 00835800

Spring, Lock

$

$

Not available

41

Gravely 00835900

Pin, Heavy D1481 5 x 20

$

$

Not available

42

Gravely 00836000

Pin, Heavy D1481 3 x 20

$

$

Not available

43

Gravely 00836100

Stay Shift

$

$

Not available

44

Gravely 00836200

Joint Ball Pin

$

$

Not available

45

Gravely 08625000

Nut, Lock D985 M6

$

$

Not available

46

Gravely 00836300

Lever

$

$

Not available

47

Gravely 00836400

Pin Heavy, ISO 8752 6 x 30

$3.49

$

In Stock, only 1 left!

0

48

Gravely 00836500

Case PTO

$

$

Not available

49

Gravely 00830400

Threaded Pin D913 M10 x 70

$

$

Not available

50

Gravely 00836600

Hex Nut, D6330B M10 x 15

$

$

Not available

51

Gravely 00836700

Friction Washer

$

$

Not available

52

Gravely 00836800

O-Ring D3770 50, 39 x 3,55

$

$

Not available

53

Gravely 00836900

Screw, Cylinder D912 M10 x 75

$

$

Not available

54

Gravely 00837000

Lubricating, D71412B M10

$

$

Not available

55

Gravely 00837100

Hex Bolt D933 M10 x 12

$

$

Not available

56

Gravely 00837200

Washer M14

$

$

Not available

57

Gravely 08648600

Bar, Lock

$

$

Not available

58

Gravely 08648500

Spring, Pressure 1.6/15.1 x 60

$

$

Not available

59

Gravely 00837300

GUide Tube

$

$

Not available

60

Gravely 08648300

Circlip, BQ-DL5

$

$

Not available

61

Gravely 08692100

Lever

$

$

Not available

62

Gravely 08648100

Pin, LOck D1444A 5 x 25

$

$

Not available

63

Gravely 00837400

Rod, THreaded M6 x 177

$

$

Not available

64

Gravely 00837500

Pan, Ball

$

$

Not available

65

Gravely 00837600

Bow, Lock D71805 10S

$

$

Not available

66

Gravely 08608900

Nut, HEx D934 M6

$

$

Not available

67

Gravely 00837700

Pan, Ball D71805 10B

$

$

Not available

68

Gravely 00837800

Hex Nut, D934 M6

$

$

Not available
