985400 - Gravely Rapid E Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) P.T.O Case Parts Diagram

Rapid E Walk-Behind 2-Wheel Tractor

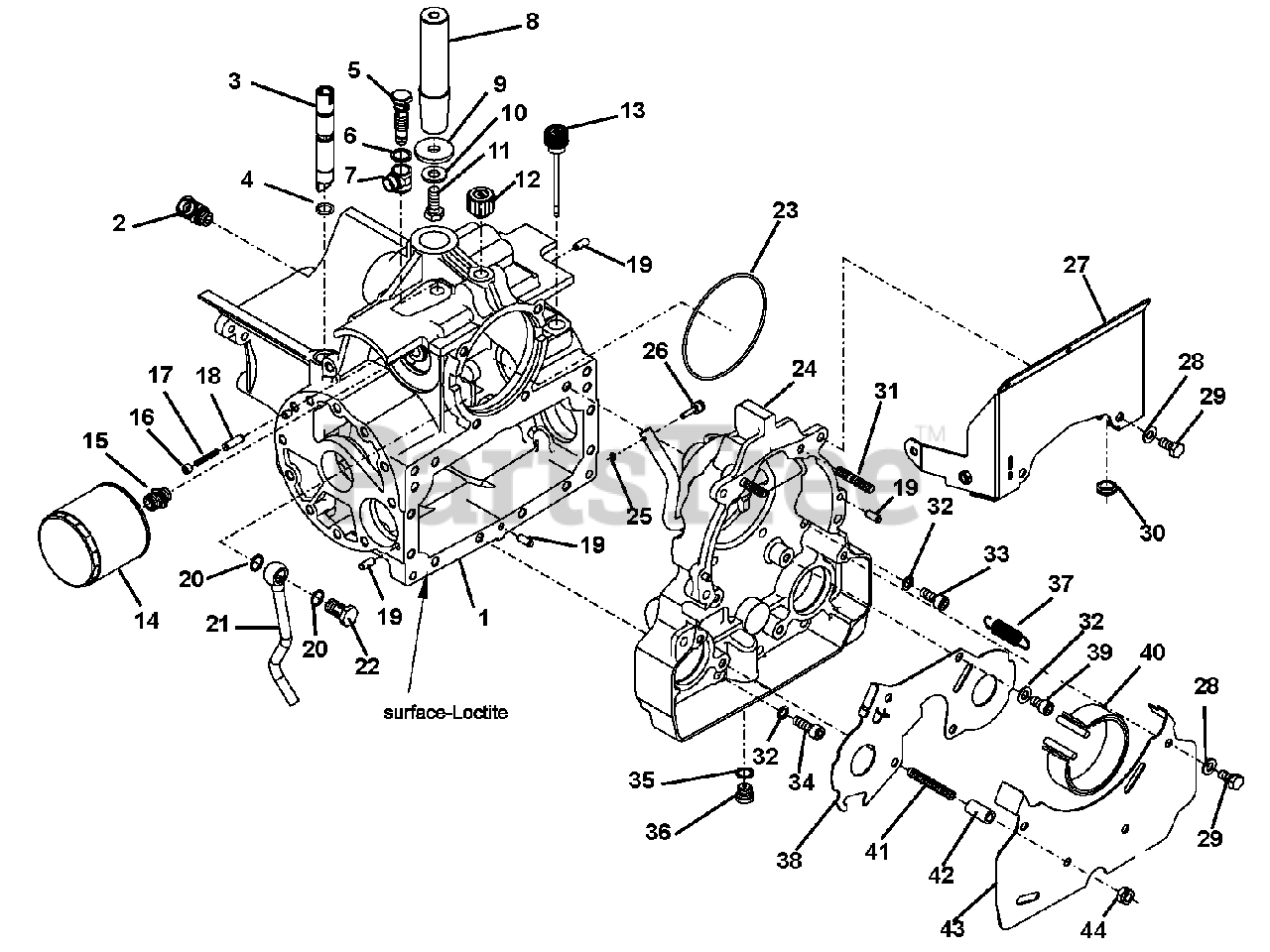

P.T.O Case Parts Diagram

  • Title

1

Gravely 00827800

Gearbox, Case

$

$

Not available

2

Gravely 00827900

Swivelling Screw Fitting, XSWV

$

$

Not available

3

Gravely 00828000

Stay Shift

$

$

Not available

4

Gravely 00828100

Warning Triangle, 15.00 x 3.00

$

$

Not available

5

Gravely 00828200

Banjo Bolt, M16 x 1.5

$

$

Not available

6

Gravely 00828300

Ring, Joint 18 x 34

$

$

Not available

7

Gravely 00828400

Housing

$

$

Not available

8

Gravely 08662900

Axle

$

$

Not available

9

Gravely 00828600

Washer

$

$

Not available

10

Gravely 00828700

Turnbuckle, 13.0 x 293.0

$

$

Not available

11

Gravely 08672000

Bolt, Hex, D933 M12 x 30

$

$

Not available

12

Gravely 00828800

Screw, Replenishing M16 x 1.5

$

$

Not available

13

Gravely 00828900

Screw, Lock

$

$

Not available

14

Gravely 08663400

Filter Suction

$

$

Not available

15

Gravely 00829000

Connector, 3/4 M16 x 1,5

$

$

Not available

16

Gravely 00829100

Threaded Pin, M10 x 8

$

$

Not available

17

Gravely 08642400

Spring, Pressure

$

$

Not available

18

Gravely 08642300

Pin, Lock

$

$

Not available

19

Gravely 08664900

Pin, Straight BN 855 8-H8 x 20

$

$

Not available

20

Gravely 08642300

Ring, Joint, D7603A 16 x 20 CU

$

$

Not available

21

Gravely 00829200

Pipe, Suction

$

$

Not available

22

Gravely 00829300

Banjo Bolt, D7643 NW10

$

$

Not available

23

Gravely 00829400

Warning Triangle, D3770

$

$

Not available

24

Gravely 00829500

Housing

$

$

Not available

25

Gravely 08694600

Washer, Retaining 4mm

$

$

Not available

26

Gravely 00839600

Bolt

$

$

Not available

27

Gravely 00829700

Cover Plate

$

$

Not available

28

Gravely 08642500

Washer

$

$

Not available

29

Gravely 00829800

Bolt, Hex M10 x 20

$

$

Not available

30

Gravely 00829900

Bushing Socket, 14 x 18 x 2

$

$

Not available

31

Gravely 08639700

D835, M10FO x 35

$

$

Not available

32

Gravely 08643400

Washer, FORM Z 10.2/16.1 x 1.6

$

$

Not available

33

Gravely 00830000

Screw, D912 M10 x 25

$3.99

$

Usually ships in 4-12 days

0

34

Gravely 08649000

Screw, D912 M10 x 30

$

$

Not available

35

Gravely 08647800

Ring, Joint, D7603A 16 x 20 CU

$

$

Not available

36

Gravely 08647900

Drain, Plug, D908 Metric 16 x 1.5MG

$

$

Not available

37

Gravely 08692600

Spring, Tension

$

$

Not available

38

Gravely 00830100

Support Bearing

$

$

Not available

39

Gravely 00830200

Screw, D912 M10 X 16

$

$

Not available

40

Gravely 00830300

Brake Band

$

$

Not available

41

Gravely 00830400

Threaded Pin, D913 M10 x 70

$

$

Not available

42

Gravely 00830500

Support Tube

$

$

Not available

43

Gravely 00830600

Plate

$

$

Not available

44

Gravely 08628600

Nut, Lock M10

$

$

Not available
